ASSEMBLY INSTRUCTION
Tools Required Assembling the Machine: Adjustable Wrench and Allen Wrench
NOTE: It is strongly recommended this machine be assembled by two or more
people to avoid possible injury.
STEP 1 (See Diagram1)
A.) Attach the Rear Stabilizer (#26) to the Main Frame (#15). Secure it with two M10 x 2
3/8” Carriage Bolts (#23),
∅
1” Bent Washers (#25), and M10 Acorn Nuts (#24).
B.) Attach the Front Stabilizer (#22) to the Main Frame (#15). Secure it with two M10 x 2
3/8” Carriage Bolts (#23),
∅
1” Bent Washers (#25), and M10 Acorn Nuts (#24).
C.) Plug the Roller Caps (#29) onto both ends of Front Stabilizer (#22). Plug the Rear
Stabilizer End Caps (#30) onto both ends of Rear Stabilizer (#26). Set the bike firmly
on a flat surface. If the surface is uneven, rotate the Rear Stabilizer End Caps (#30)
to level the bike.

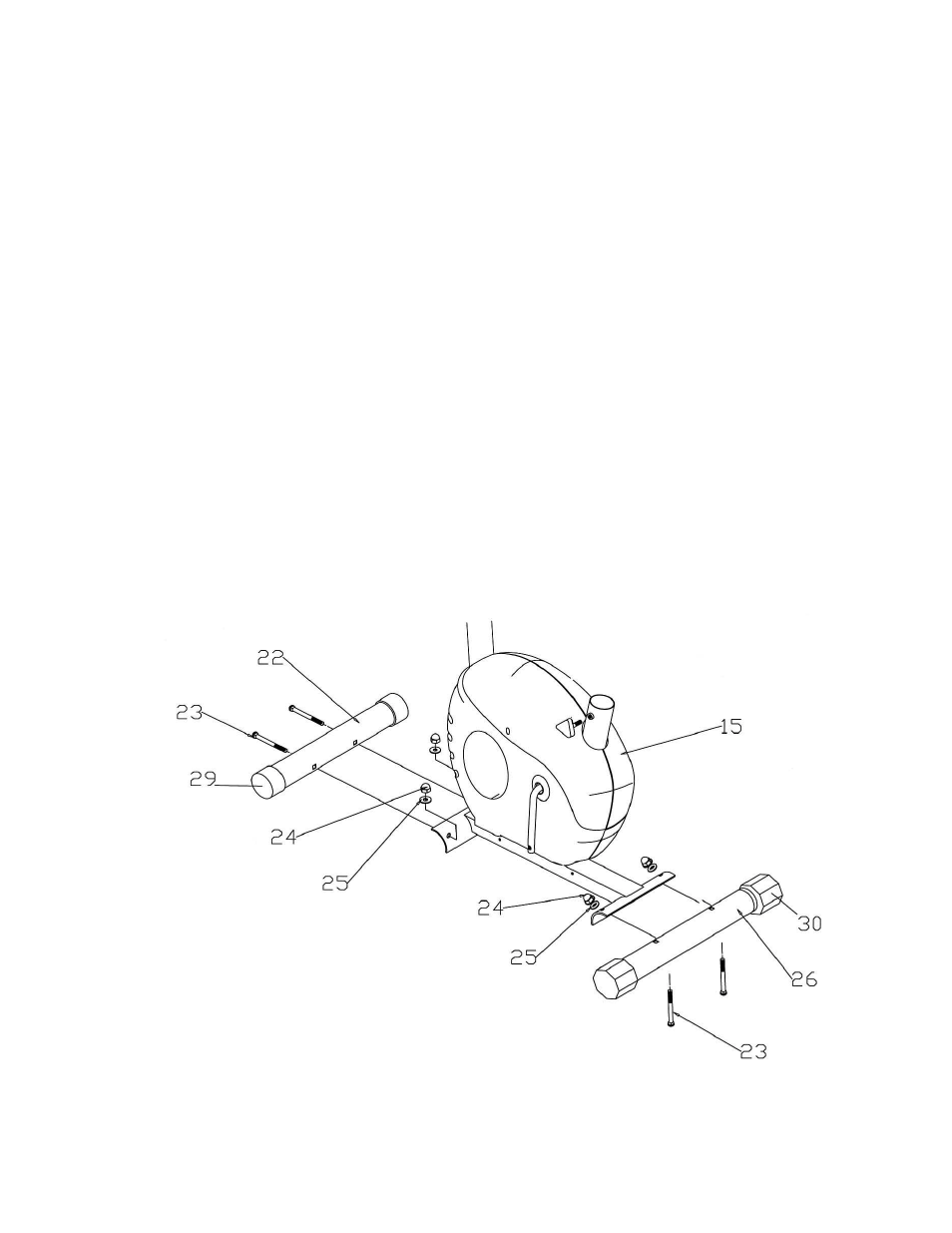

Diagram 1
4
