Drive

controls

and

connectors

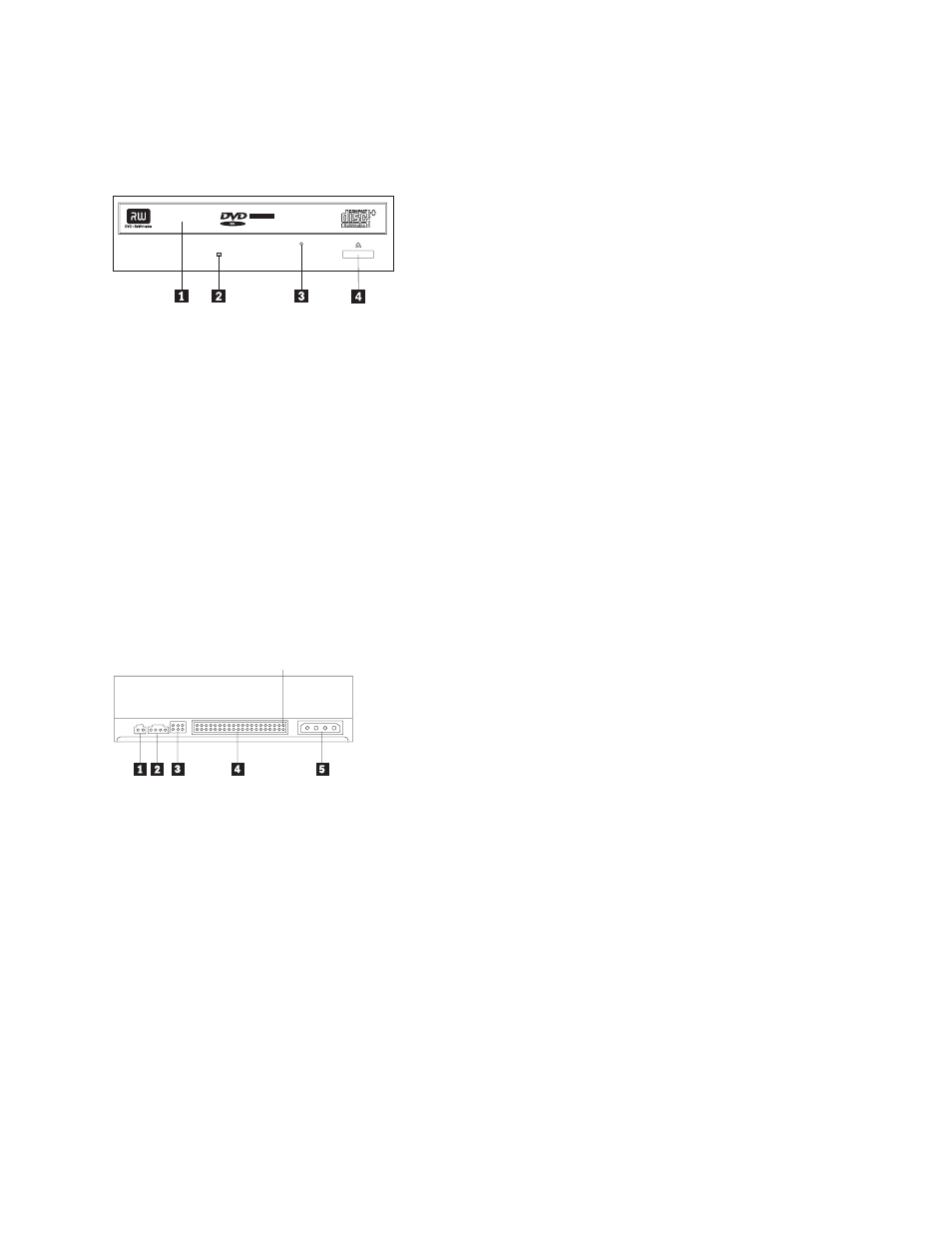

The

following

diagrams

show

the

location

and

functions

of

the

drive

controls

and

connectors.

Front

view

of

the

drive

RECORDER

M U L T I

M U L T I

1 Disc

drawer

This

drawer

is

where

you

load

and

unload

a

disc.

2 Busy

indicator

This

light

comes

on

when

the

drive

reads

from,

writes

to,

or

plays

a

disc.

3 Emergency

eject

hole

This

hole

provides

access

to

the

eject

mechanism

to

remove

a

disc

from

the

drive.

4 Open/Close

button

This

button

opens

and

closes

the

disc

drawer

when

you

push

it.

Rear

view

of

the

drive

Pin 1

1 Reserved

2 Audio-out

connector

This

connector

transmits

the

analog

audio

signals

to

an

audio

adapter.

3 Configuration

pins

These

pins

are

used

to

set

the

drive

configuration.

4 IDE

port

This

connects

the

drive

to

the

IDE

cable.

5 Power

connector

This

connects

the

drive

to

the

power

cable.

Chapter

1.

Introduction

1-3
