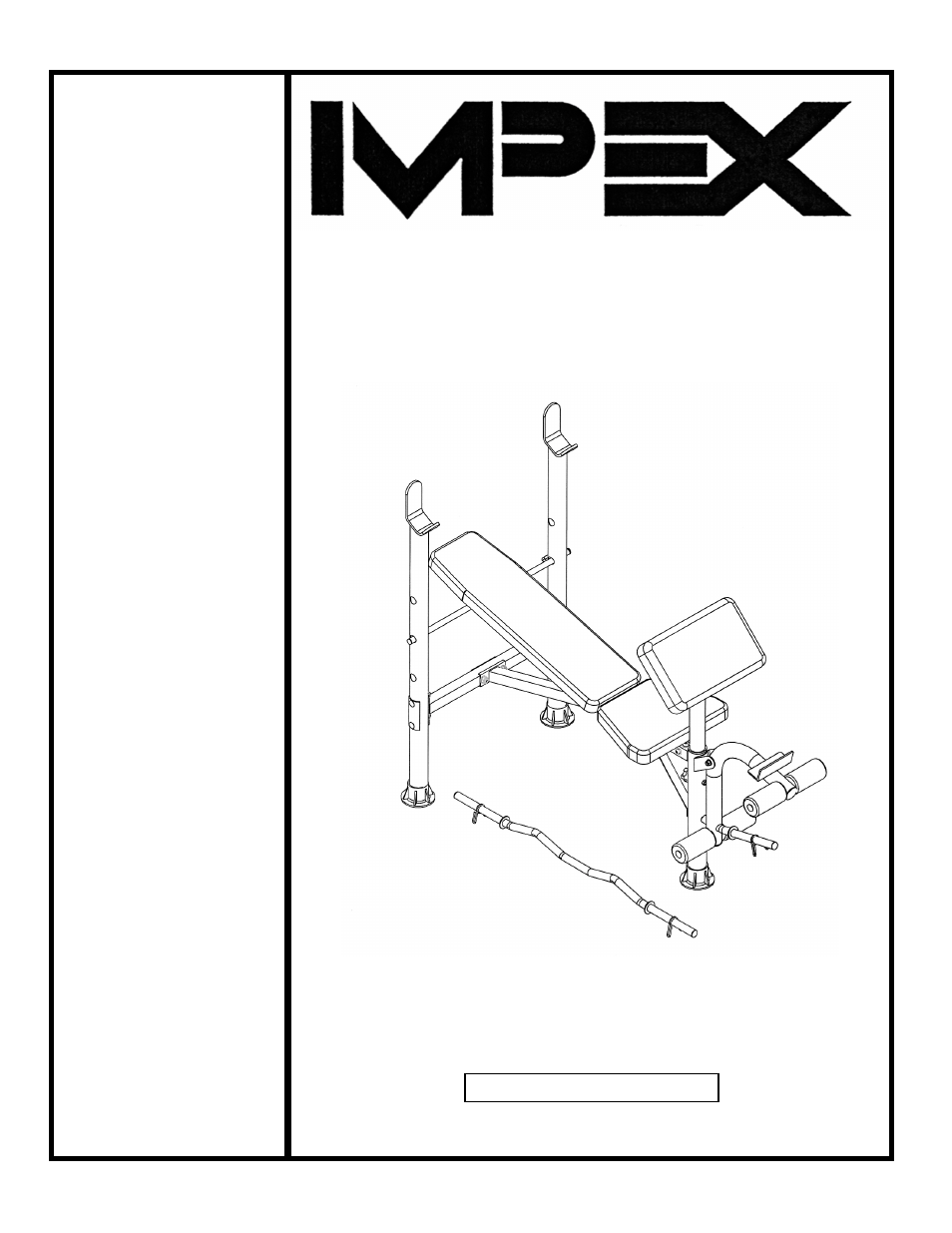

Impex MWB-356 User Manual
Marcy weight bench mwb-356, Model mwb-356, Impex inc
Table of contents
Document Outline
- BEFORE YOU BEGIN...................................................................................…. 1
- IMPORTANT SAFETY NOTICES..................................................................…. 2
- HARDWARE IDENTIFIER.....…....................................................................…. 4
- ASSEMBLY INSTRUCTIONS........................................................................…. 5
- EXPLODED DIAGRAM………………………………………………………………. 10
- PARTS LIST...............................................................................................……. 11
- WARRANTY.................................................................................................…. 12
- ORDERING PARTS.......................................................................................… 12
- ASSEMBLY INSTRUCTION
- Attach the Leg Developer (#10) to the Front Leg (#8). Secure it with one M8 x 3 1/8” Allen Bolt (#28), two Ø 5/8” Washers (#33), and one M8 Aircraft Nut (#36).
- Insert two Foam Tubes (#11) halfway through the holes on the Leg Developer. Push four Foam Rolls (#19) onto the Tubes from both sides.
- Place a Spring Clip (#22) onto the weight post on the Leg Developer. The maximum weight capacity for Leg Developer is 100 lbs.
- Attach the hole-side of the Backrest Supports (#13) onto both ends of the pivot on the Main Seat Support (#6). Place the other end rest against the Backrest Adjustment Bar (#4).
- Place the Backrest Board (#14) onto the Backrest Supports. Secure it with four M6 x 1 3/8” Philips Screws (#31) and Ø ½” Washers (#34).
- Place the Seat Pad (#15) onto the Main Seat Support. Secure it with four M6 x 1 3/8” Philips Screws (#31) and Ø ½” Washers (#34).
- Attach the Arm Curl Pad (#16) to the Arm Curl Stand (#12). Secure it with two M8 x 5/8” Allen Bolts (#30) and Ø 5/8” Washers (#33).
- Insert the Arm Curl Stand into the top opening on the Front Leg. Secure it with a Lock Knob (#24).
- 20 2” Round End Cap 2
