Impex MP-3105 User Manual

Page 11

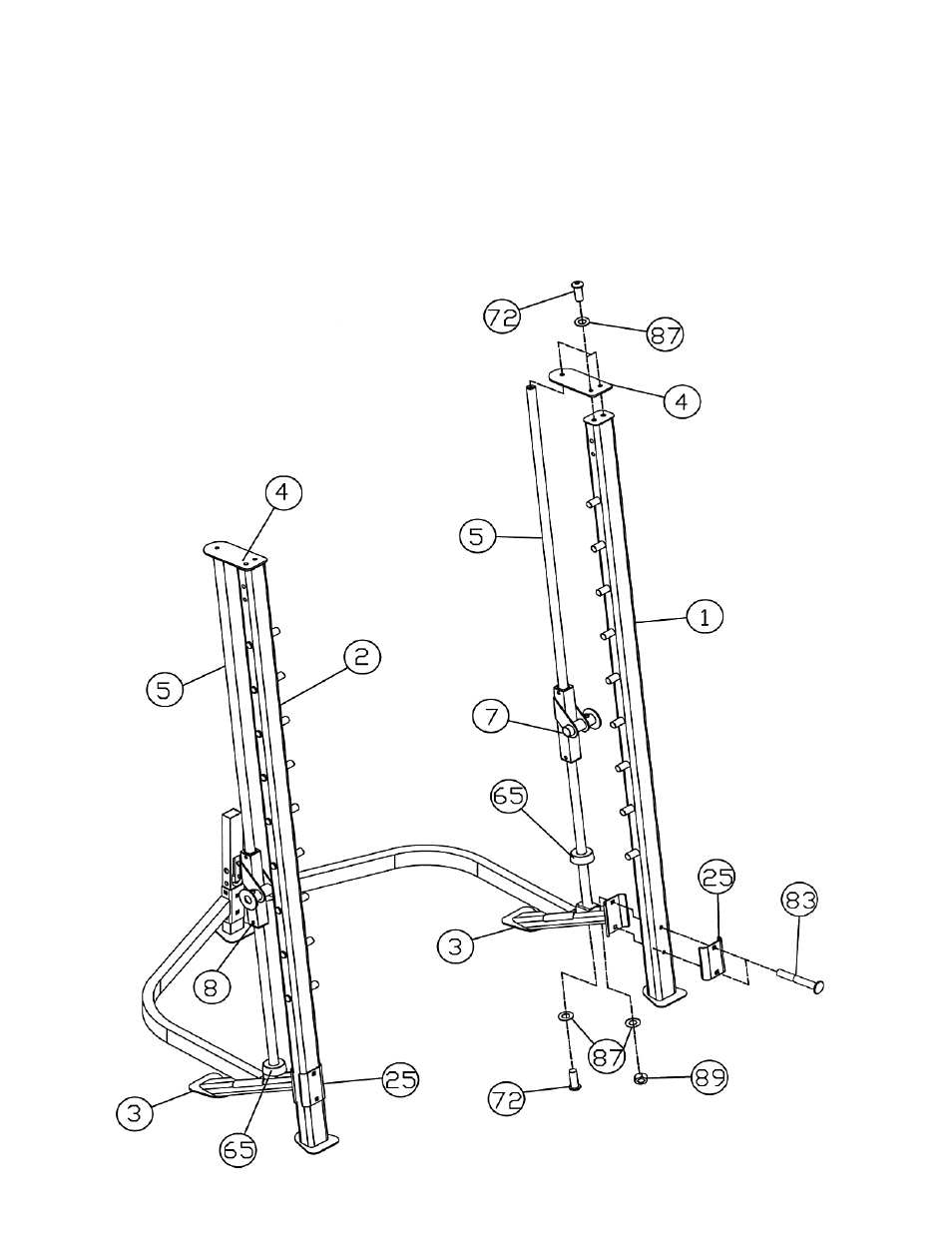

STEP 2 (See Diagram 2)
A.) Attach the Left Vertical Beam (#1) to the left Diagonal Support (#3). Secure it with two M10

x 2 ¾” Carriage Bolts (#83), one 4 3/8” x 2 ¾” Bent Bracket (#25), two Ø ¾” Washers
(#87), and two M10 Aircraft Nuts (#89).

B.) Attach one Guide Rod (#5) onto the left Diagonal Support. Secure it with one M10 x 1”

Allen Bolt (#72) and Ø ¾” Washer (#87) from the bottom.

C.) Slide a Ø 2 ½” x 1” Rubber Bumper (#65) and the Left Safety Stop Frame (#7) onto the

Guide Rod from the top.

D.) Attach a Guide Rod Bracket (#4) onto the Guide Rod (#5) and the Left Vertical Beam (#1).

Secure it with three M10 x 1” Allen Bolts (#72) and Ø ¾” Washers (#87).

E.) Repeat Procedure A to D above to install the other side.
