14

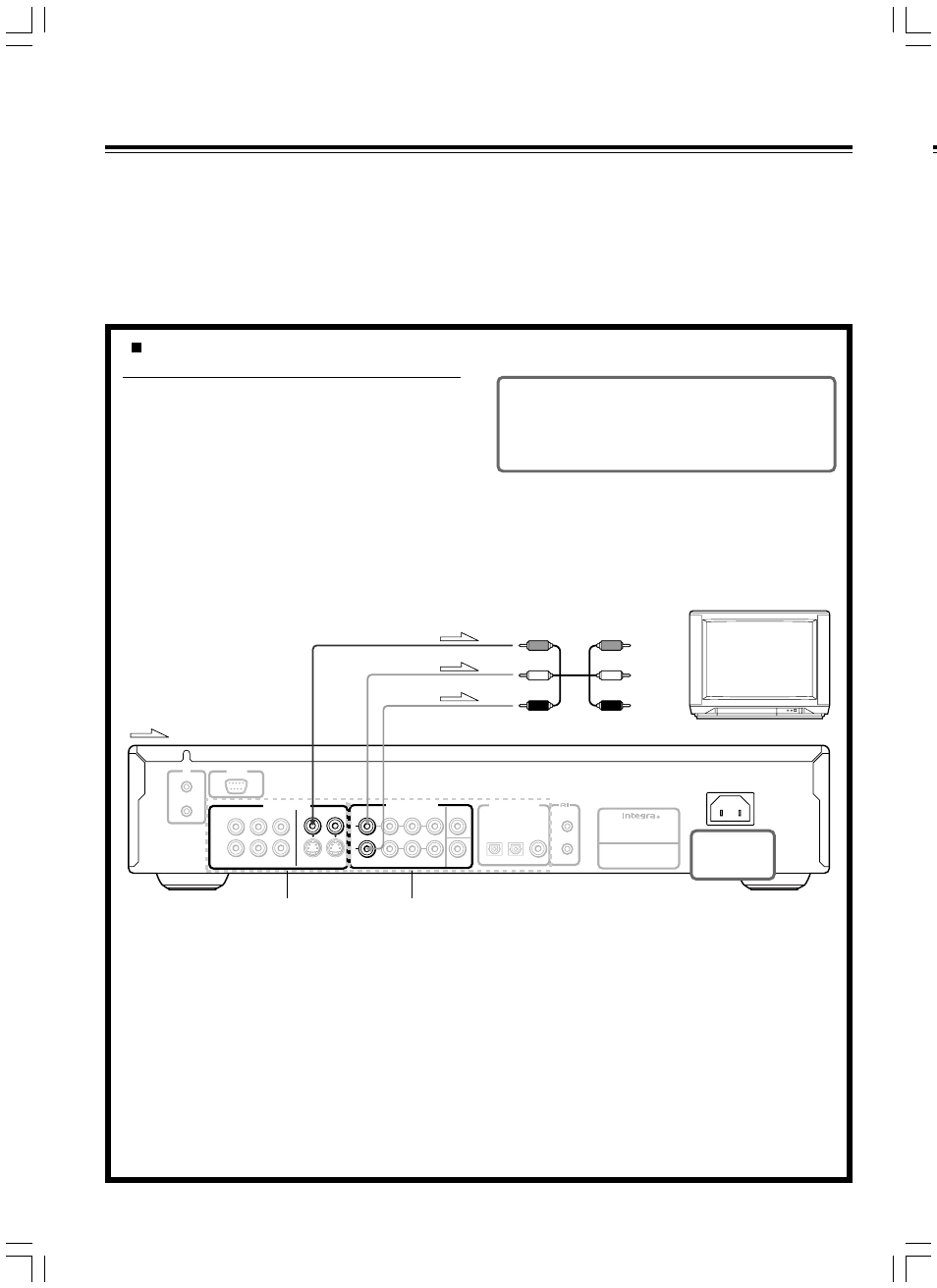

Connecting to a TV
AC INLET
Y P B P R
COMPONENT
VIDEO
S VIDEO
OPTICAL COAXIAL
REMOTE
CONTROL
OUT
IN
DIGITAL OUTPUT
CH 1 CH 2 FRONT SURR CENTER
SUB
WOOFER
VIDEO OUTPUT ANALOG OUTPUT
L
R
CH1
CH2
RS-232
DVD AUDIO/VIDEO PLAYER
MODEL NO. DPS-7.3
IR
: Signal flow
BE sure to set the TV Aspect after connection using
the Setup Navigator explained in “Setting Up the
Player” starting on page 17 or the function setting
menu explained in “Adjusting Audio and Video
Settings” starting on page 41.
Stereo audio/video connection cable
To audio/video input
L (White)
R (Red)
Using the supplied audio/video connection
cable
Using the supplied audio/video cable, make audio
connections from the ANALOG OUTPUT CH 1 or CH 2 L
and R jacks to the corresponding audio input jacks on the
TV. In the same manner, make video connection from the
VIDEO OUTPUT VIDEO jack to the corresponding video
input jack on the TV.
By making connections to a stereo system, you can
improve the quality of the sound. Using an audio cable (not
supplied), make audio connections from the ANALOG
OUTPUT CH 1 or CH 2 L and R jacks to the corresponding
jacks on the stereo component.
Note
Be sure to match the colors of the plugs on the cable with the
corresponding jacks on the DVD Player and the TV: yellow for
video, red for R (right) audio and white for L (left) audio.
Video
(Yellow)
DO NOT connect
the mains lead at
this time.
Jacks for video
connections Jacks for audio
connections
