Diagram 3 – Impex SB-670 User Manual
Page 8
STEP 3
(See Diagram 3)
A.) Attach the Seat Pad to the Left & Right Seat Bracket (#5 & #6). Secure them with four M6 x
¾” Allen Bolts (#25) and four Ø ½” Washers (#33).
B.) Attach the Backrest Board to the Backrest Support (#7). Secure it with two M8 x 1 ¾” Allen
Bolts (#26) and two Ø 5/8” Washers (#32).
C.) Use the handle on Incline Support (#8) to move the Incline Support to selected open slot on
Main Seat Support (#1) to obtain the desired Backrest Incline.

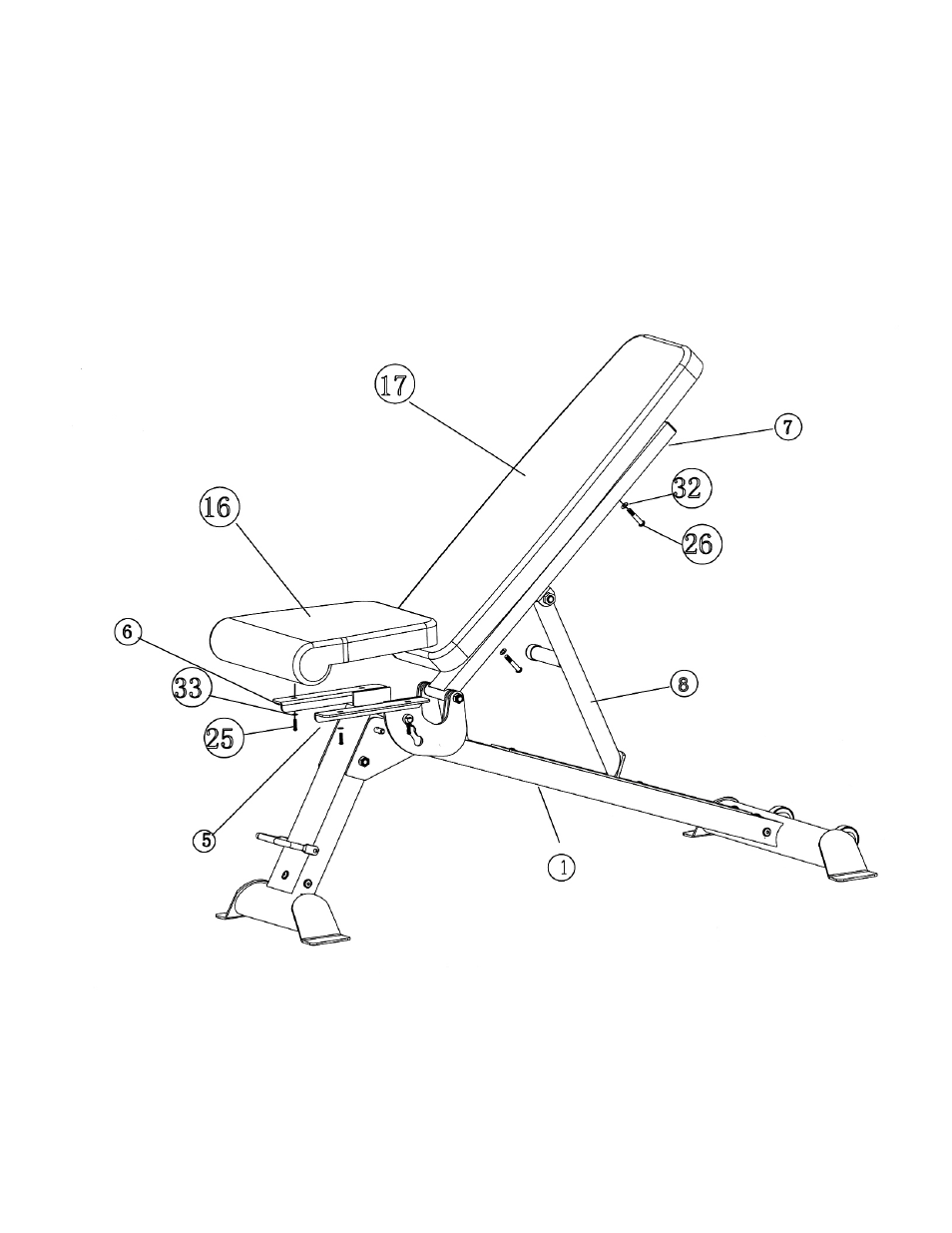

DIAGRAM 3
7
