ASSEMBLY INSTRUCTION
Tools Required For Assembling the Machine: Two Adjustable Wrenches and Allen
Wrenches. NOTE: It is strongly recommended for two or more people to assemble this
machine to avoid possible injury.
STEP 1 (See Diagram 1)
A.) Do not tighten Nuts and Bolts until instructed to do so.
B.) Attach the Front Post (#4) to the Front Stabilizer (#3). Secure it with three M10 x 5/8” Allen
Bolts (#23) and three Ø ¾” Washers (#31).
C.) Attach the Main Seat Support (#1) to Front Post. Secure the lower hole with one M10 x 4 ¾”
Allen Bolt (#21), two Ø ¾” Washers (#31), and one M10 Aircraft Nuts (#29). Secure the
upper hole with a Lock Pin (#11) into the upper hole.
D.) Attach the Main Seat Support to the Rear Stabilizer (#2). Secure it with three M10 x 5/8”
Allen Bolts (#23) and three Ø ¾” Washers (#31).
E.) Securely tighten all nuts and bolts.
F.) Attach the Handle (#12) to the Front Post. Secure it with two M6 x 5/8” Allen Bolts (#13).
G.) Fold the Font Post by pulling out the Lock Pin (#11), fold down the Front Post, and then
reinsert the Lock Pin.

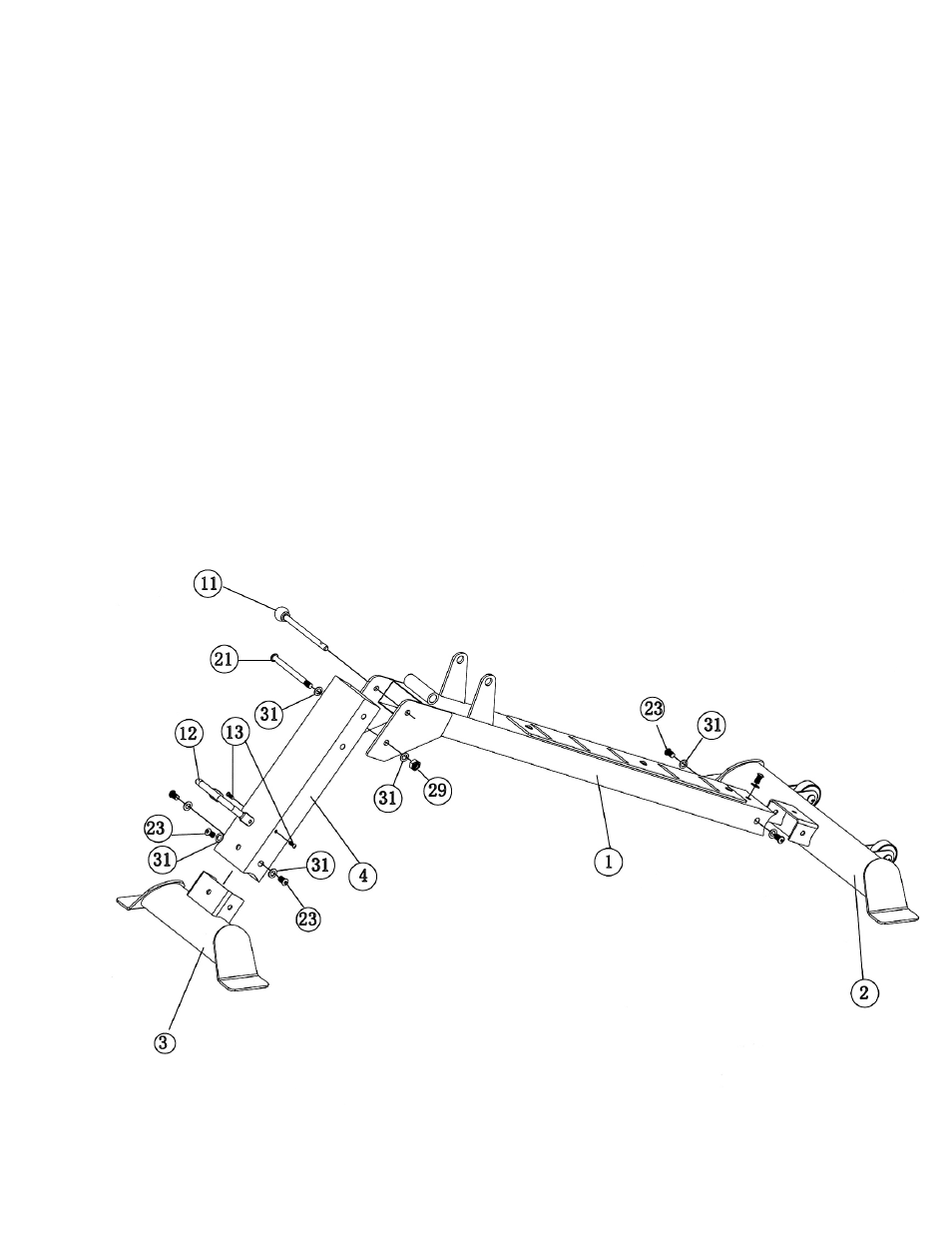

DIAGRAM 1
