STEP 4 (SEE DIAGRAM 4)
A.) Attach the hole-side of the Backrest Supports (#16) onto both ends of the Pivot on the
Main Seat Support (#52) and place the other side rest against the Backrest Adjustment
Bar (#10).
B.) Place the Backrest Board (#18) onto the Backrest Supports (#16). Secure it with four M6
x 1 3/8” Hex Bolts (#50) and
∅
½” Washers (#51).
C.) Place Seat (#19) onto the bracket on the Main Seat Support (#52). Align the holes and
secure the Seat with four M6 x 1 3/8” Hex Bolts (#50) and
∅
½” Washers (#51).
D.) Insert the Arm Curl Stand (#22) into the opening on the top of the Front Stabilizer (#42).
Secure it with a Knob Bolt (#47).
E.) Attach the Arm Curl Pad (#23) to the Arm Curl Stand (#22). Secure it with two M8 x 5/8”
Hex Bolts (#20) and
∅
5/8” Washers (#21).

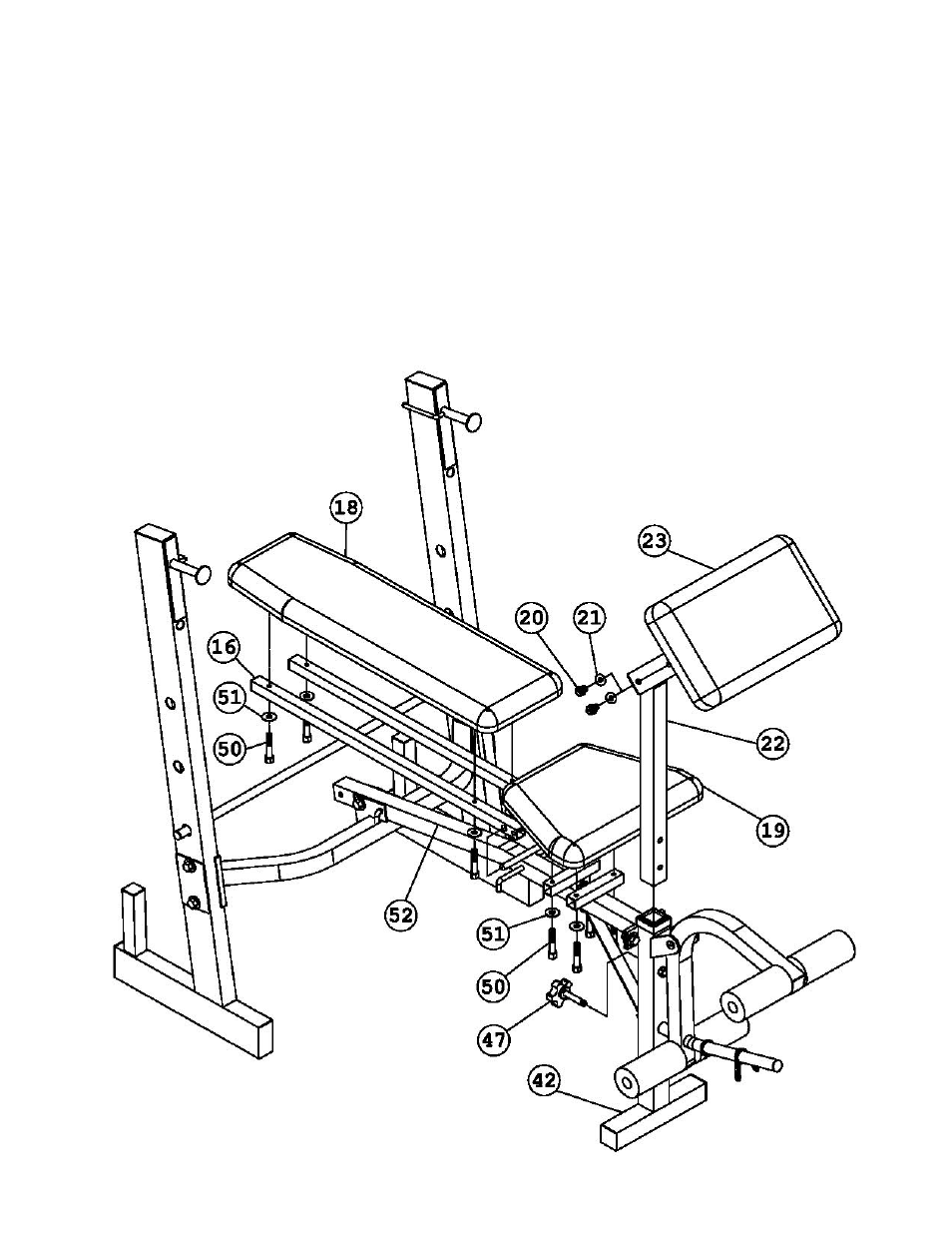

DIAGRAM 4
