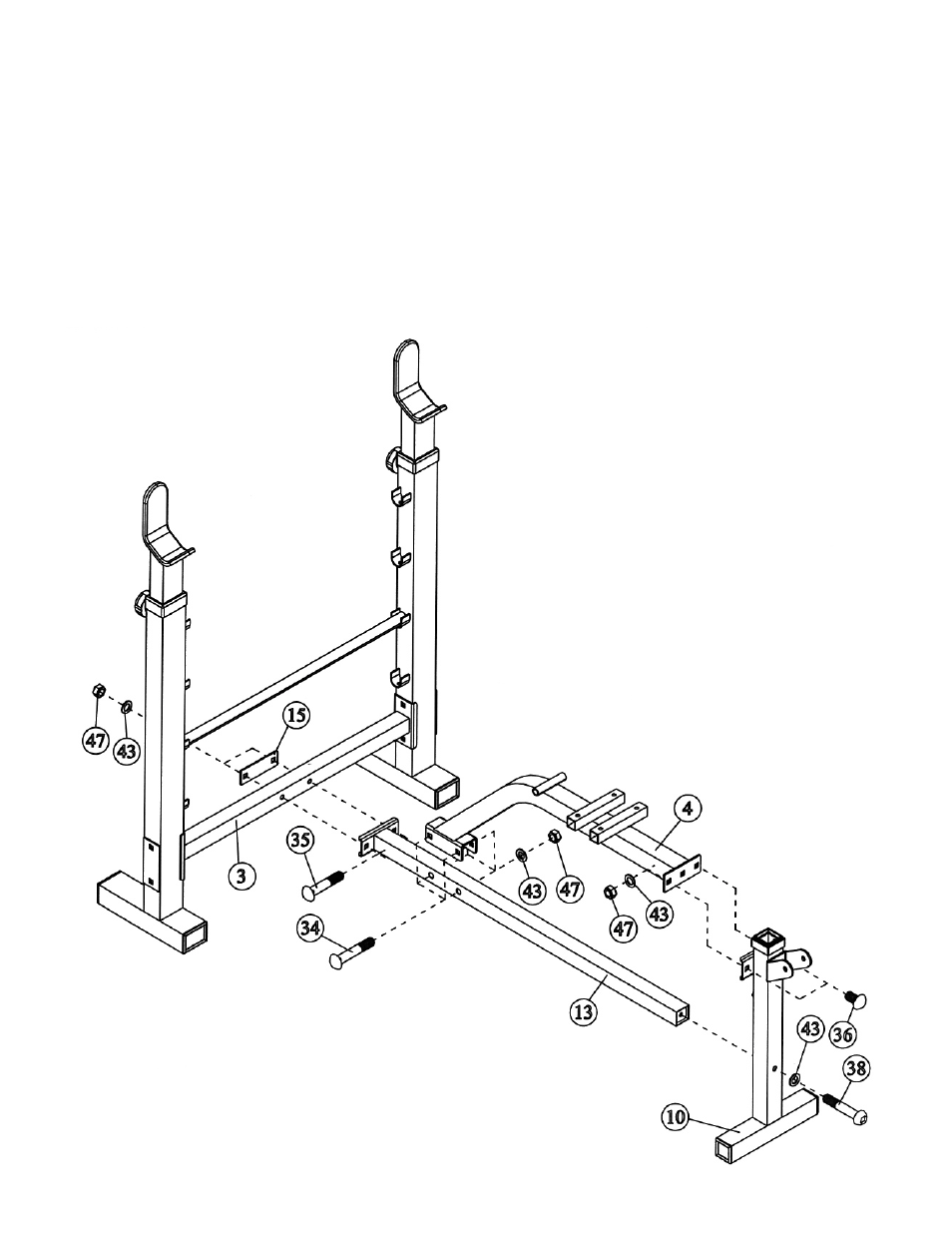

STEP 2 (See Diagram 2)
A.) Attach the Main Stabilizer (#13) to the Cross Brace (#3). Secure it with a 4 3/8” x 1 ½”
Bracket (#15), two M10 x 2 1/8” Carriage Bolts (#35),
∅
¾” Washers (#43), and M10
Aircraft Nuts (#47).
B.) Attach the Front Support (#10) to the Main Stabilizer (#13). Secure it with one M10 x 2
3/8” Allen Bolt (#38) and
∅
¾” Washer (#43).
C.) Attach one end of Man Seat Support (#4) to the Main Stabilizer (#13). Secure it with two
M10 x 2 ½” Carriage Bolts (#34),
∅
¾” Washers (#43), and M10 Aircraft Nuts (#47).
D.) Attach the other end of Main Seat Support (#4) to the Front Support (#10). Secure it
with two M10 x 1” Carriage Bolts (#36),
∅
¾” Washers (#43), and M10 Aircraft Nuts
(#47).
DIAGRAM 2
5
