Setting Up the LitePro
12 LitePro 560/570 User’s Guide
• If your video player provides an S-Video signal , its video-out
connector is a slightly larger, round, four-pin S-Video jack.
You cannot use the audio/video cable that came with the
LitePro; you will need to obtain an S-Video cable. Plug your S-
Video cable into the S-Video connectors in the “
SOURCE 3 ” or
“ SOURCE 4 ” areas on the connector panel as shown below.
The video-out connector on your video player may be labeled
“To Monitor.”

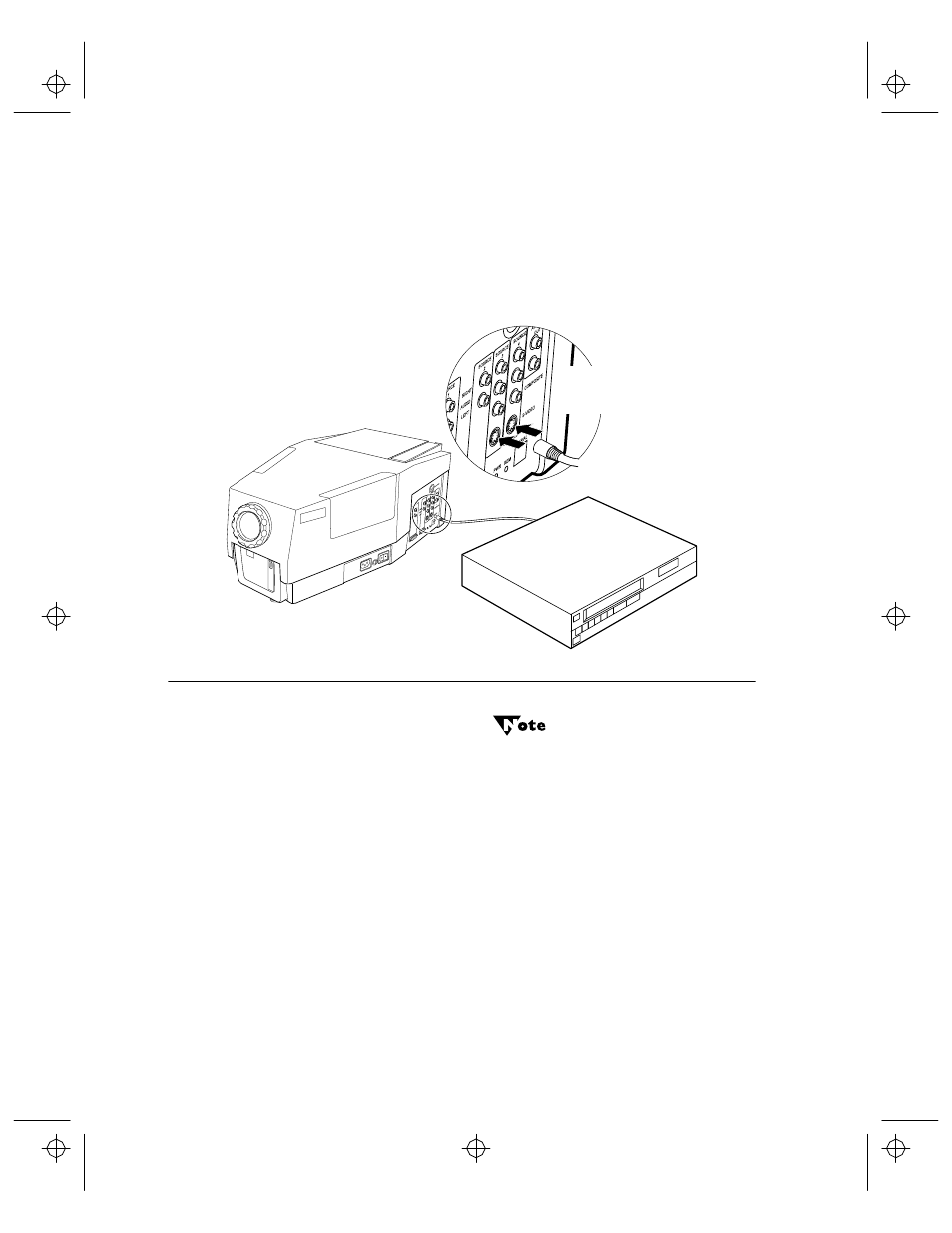

Figure 9. Connecting an S-Video Cable
connect video cable
to either SOURCE 3 or
SOURCE 4 connector
