Setting Up the LitePro
This chapter describes how to position the LitePro projector for
optimum viewing and how to connect it to your equipment.
1. If you are setting up the LitePro for the first time, you’ll need to
install the two projection lamps that were shipped with it. Refer
to ”Replacing the Projection Lamps” on page 40 for instructions.
2. Place the projector on a flat surface.
• If you want to use the LitePro’s Rear Project feature, set it up
behind your translucent screen. Refer to “Rear Projection” on
page 28 for more information.
• The projector must be within 6 feet of your power source.
• The projector must be within 6 feet of the computer.
• The distance from the LitePro’s lens to the screen determines
the size of the projected image as shown below.

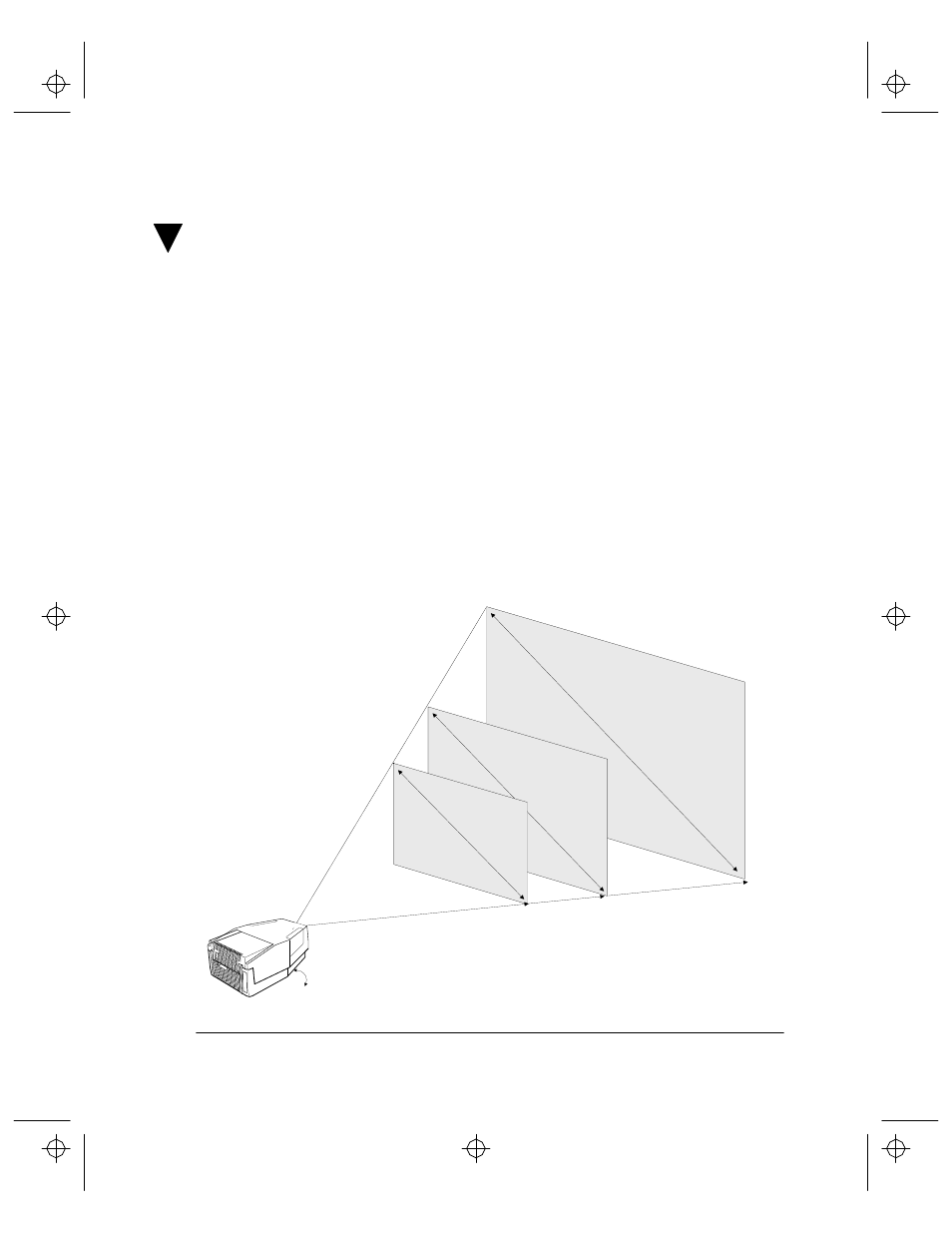

Figure 2. Image Size (measured diagonally)
8 ft. (2.4m)
6 ft. (1.8m)
5 ft. (1.5m)
5.7 ft. (1.7m)
7.2 ft. (2.2m)
9.9 ft. (3m)
elevated about 2” (5cm)
from table
Distance to Screen
(measured parallel to tabletop)
