GA-8I915MK-GV Motherboard - 22 -
English

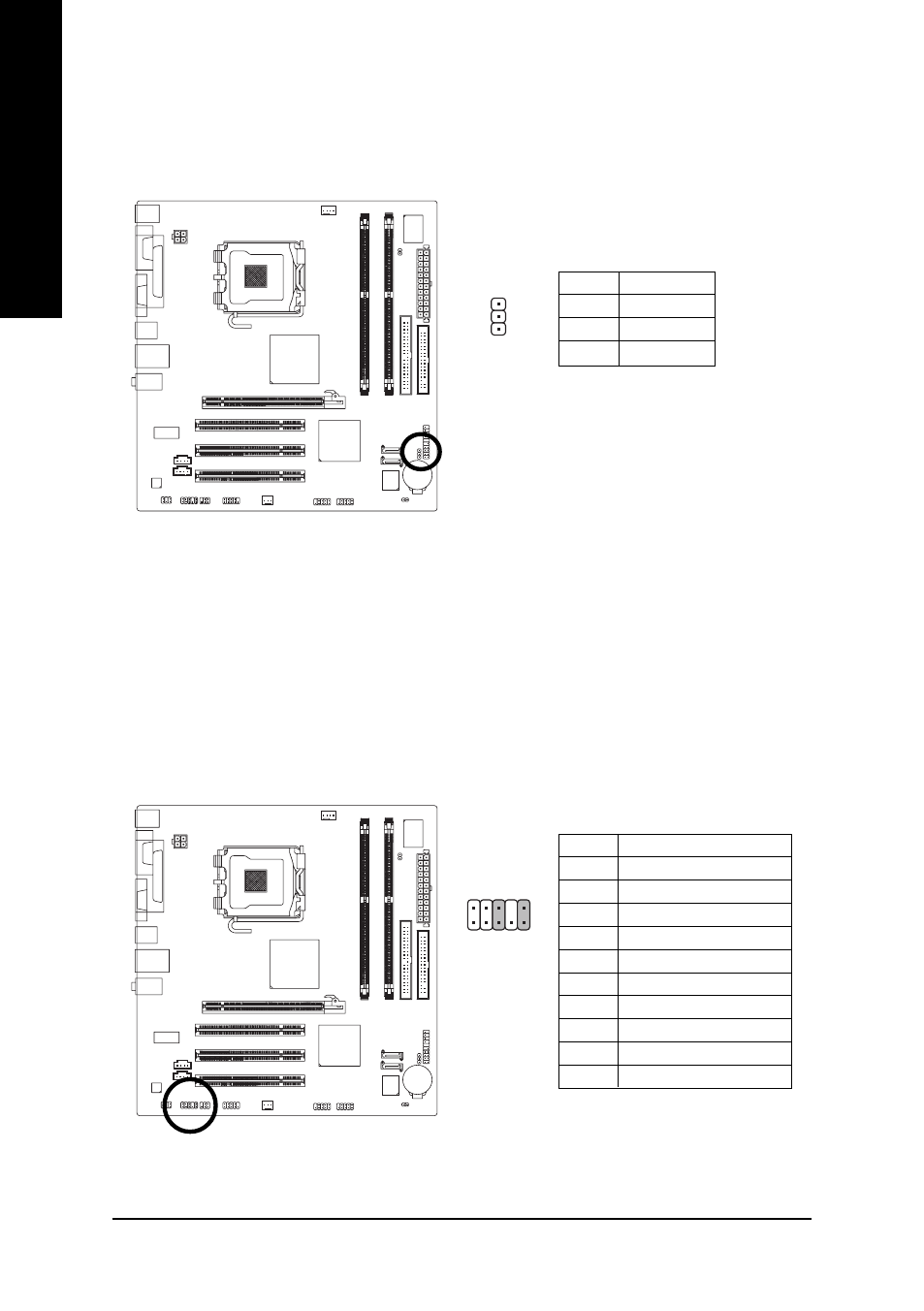

10) F_AUDIO (Front Audio Panel Connector)
Please make sure the pin assigment on the cable is the same as the pin assigment on the MB header.
To find out if the chassis you are buying support front audio panel connector, please contact your
dealer. If you want to use "Front Audio" connector, you must remove the jumpers from pins 5-6,
9-10.
1
10
9
2
9) PWR_LED
PWR_LED is connected with the system power indicator to indicate whether the system is on/off.
It will blink when the system enters suspend mode.
Pin No. Definition
1 MPD+
2 MPD-
3 MPD-
Pin No. Definition
1 MIC
2 GND
3 MIC_BIAS
4 POWER
5 FrontAudio(R)
6 Rear Audio (R)/ Return R
7 NC
8 No Pin
9 FrontAudio (L)
10 Rear Audio (L)/ Return L
1
