IS-TVDVD20 20-inch TV/DVD Combo
www.insignia-products.com
H
EADPHONES
When you use the headphones, keep the
volume at a moderate level. If you use the
headphones continuously with high volume
sound, it may cause hearing damage.
L
ASER
BEAM
Do not look into the opening of the disc slot or
ventilation opening of your TV/DVD combo to
see the source of the laser beam. It may cause
sight damage.
D
ISC
Do not use a cracked, deformed, or repaired
disc. These discs are easily broken and may
cause serious personal injury and product
malfunction.
N
OTE
TO
CABLE
SYSTEM
TV
INSTALLER
This reminder is provided to call the Cable TV
system installer's attention to Article 820-40 of
the NEC that provides guidelines for correct
grounding and, in particular, specifies that the
cable ground shall be connected to the
grounding system of the building, as close to the
point of cable entry as practical.

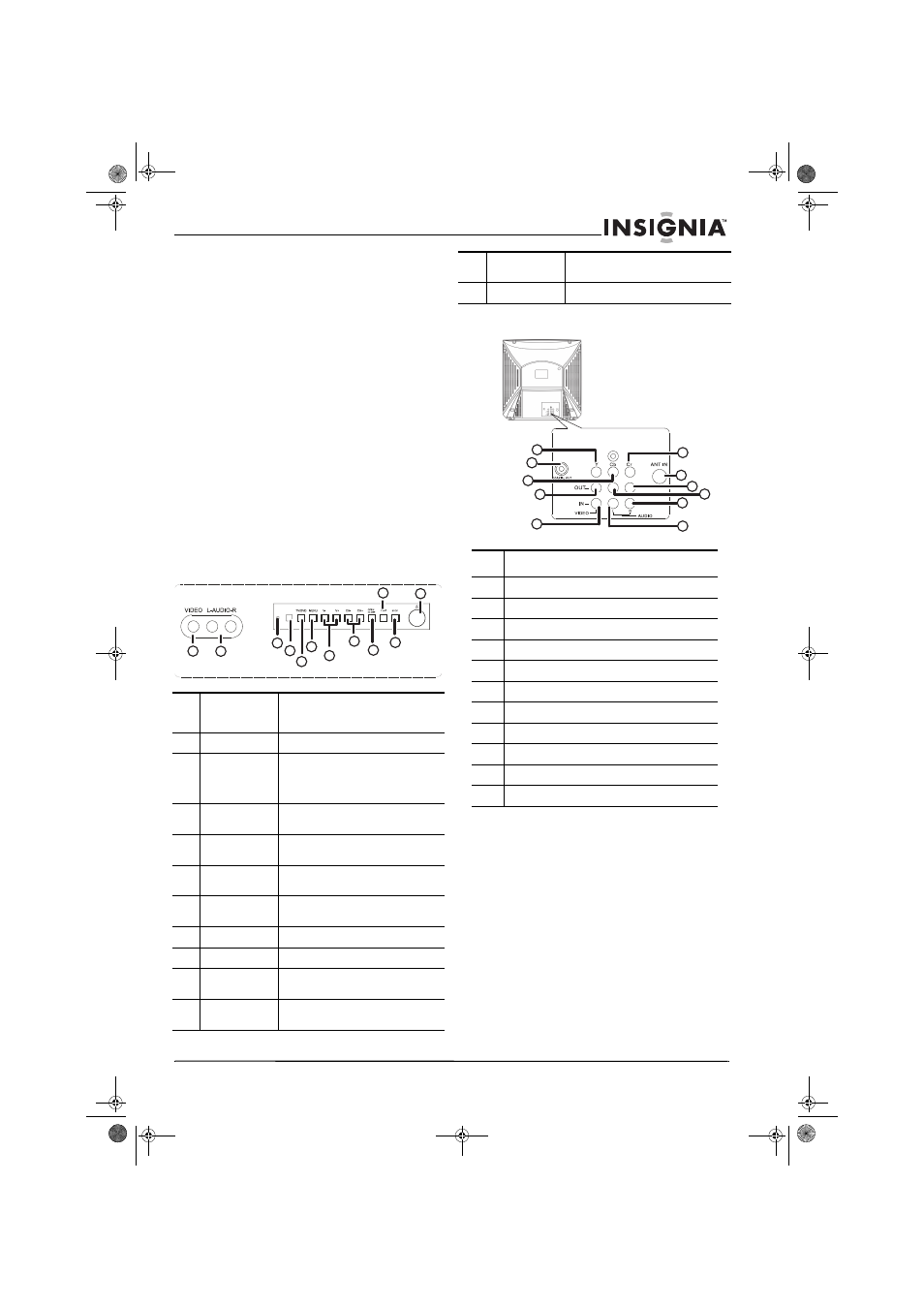

Features
Front panel
Back panel
Button/
connector
Description
1
PLAY
Press to start disc playback.
2
Standby Power
Press to turn your TV/DVD combo
on and off or to “wake” your
TV/DVD combo if it is in standby
mode.
3
VIDEO
Plug your external video device
into this connector.
4
L-AUDIO-R
Plug your external audio system
into these connectors.
5
Power
indicator
This indicator lights when your
TV/DVD combo is turned on.
6
Remote
control sensor
Receives signals from the remote
control. Do not block.
7
TV/DVD
Press to select TV or DVD mode.
8
MENU
Press to open the TV OSD.
9
V – and V +
Press to decrease or increase the
volume.
10
CH – and
CH +
Press to change the TV channel.
3
4
5
6
7
8
9
10
11
12
1
2
11
OPEN/CLOSE
Press to open the DVD tray. Press
again to close the tray.
12
STOP
Press to stop DVD playback.
Connector
1
DVD Video Y input connector
2
Coaxial output terminal
3
DVD Video Cb input connector
4
Video output connector
5
Video input connector
6
DVD Video Cr input connector
7
Antenna/CATV input connector
8
Audio right channel output connector
9
Audio left channel output connector
10
Audio right channel input connector
11
Audio left channel input connector
1
6
7
3
4
5
11
8
10
9
2
