ASSEMBLY INSTRUCTION
Tools Required Assembling the Machine: Two Adjustable Wrenches and Allen
Wrenches. NOTE: It is strongly recommended two or more people assembling this
machine to avoid possible injury.
STEP 1 (See Diagram 1)
A.) Connect the Left & Right Upright Beam (# 1 & #2) by a Cross Brace (#4) in the mid span.
Secure them with M10 x 3 ¾” Carriage Bolts (#40), one 5 ½” Bent Bracket (#16), two
∅
¾”
Washers (#49), and two M10 Aircraft Nuts (#52) on each side.
B.) Insert two Crutches (#6) into the top openings on the top of Left & Right Upright Beams.
Insert two M18 Lock Knobs (#31) through selected holes to obtain desired height.
C.) Place the Backrest Adjustment Bar (#5) on the selected slot on the Upright Beams to
obtain the desired backrest incline.

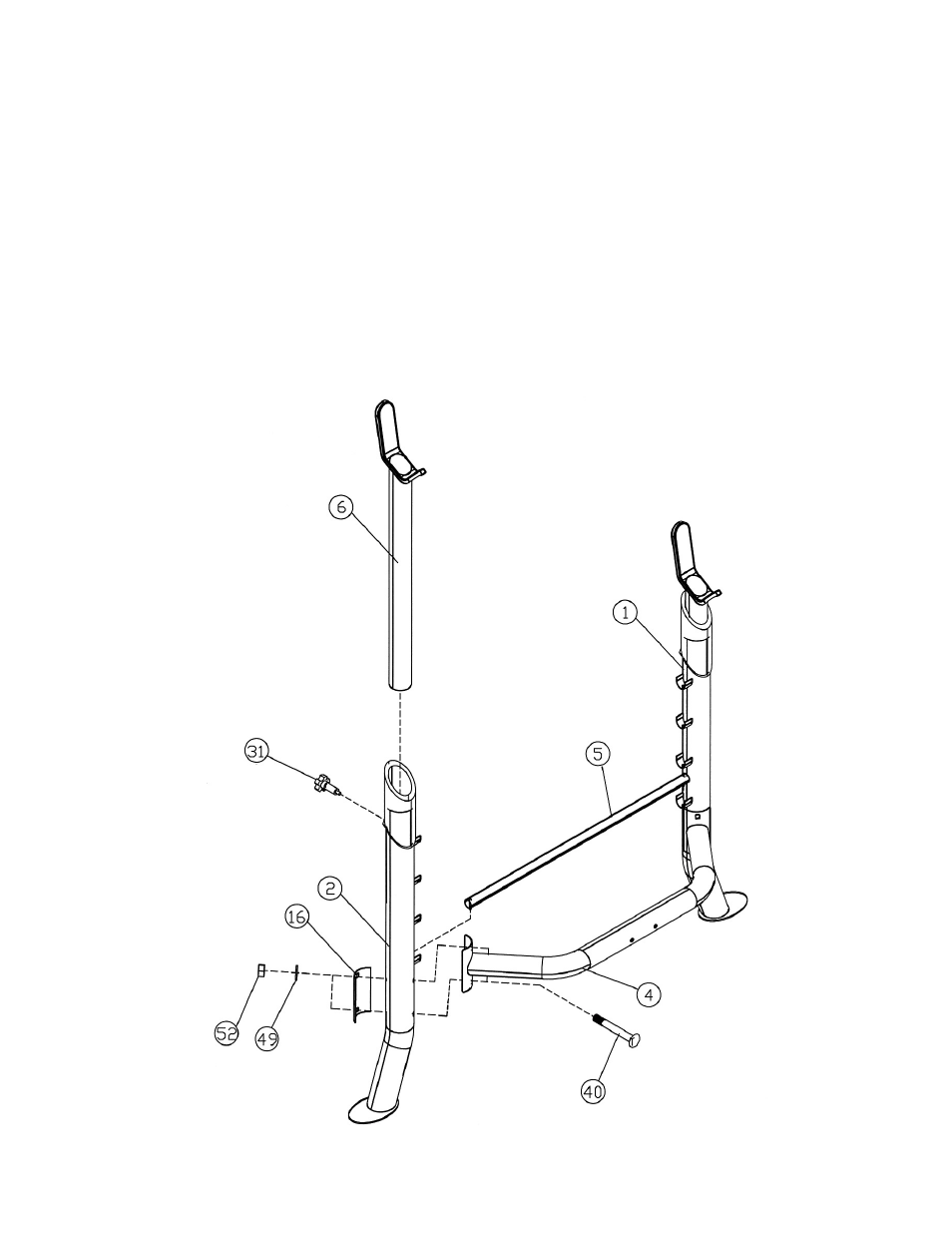

DIAGRAM 1
