STEP 5 (See Diagram 5)
A.) Attach the Leg Developer (#8) to the Main Seat Support. Secure it with an Axle (#26), two
M10 x 5/8” Allen Bolts (#44), and two Ø ¾” Washers (#49).
B.) Insert two Foam Tubes (#19) halfway through the holes on the Leg Developer. Push four
Foam Rolls (#29) onto the Tubes from both ends. Plug four Foam Roll End Caps (#33)
into the ends.
C.) Slide an Olympic Sleeve (#30) onto the weight post on Leg Developer. Attach a Spring
Clip (#25) onto the Sleeve.
D.) Attach the Arm Curl Handle to the back hole on the Leg Developer. Secure it with one 3”
Lock Pin (#28). Attach the Abdominal Strap (#53) to the front hole on Leg Developer.
Secure it with one 3” Lock Pin (#28).
E.) Pull up and flip the Arm Curl Pad along the track to face the back when doing Abdominal
exercises using the Abdominal Strap.
F.) Remove the Arm Curl Stand, Arm Curl Hand, and Abdominal Strap when doing Leg
Developer exercises.

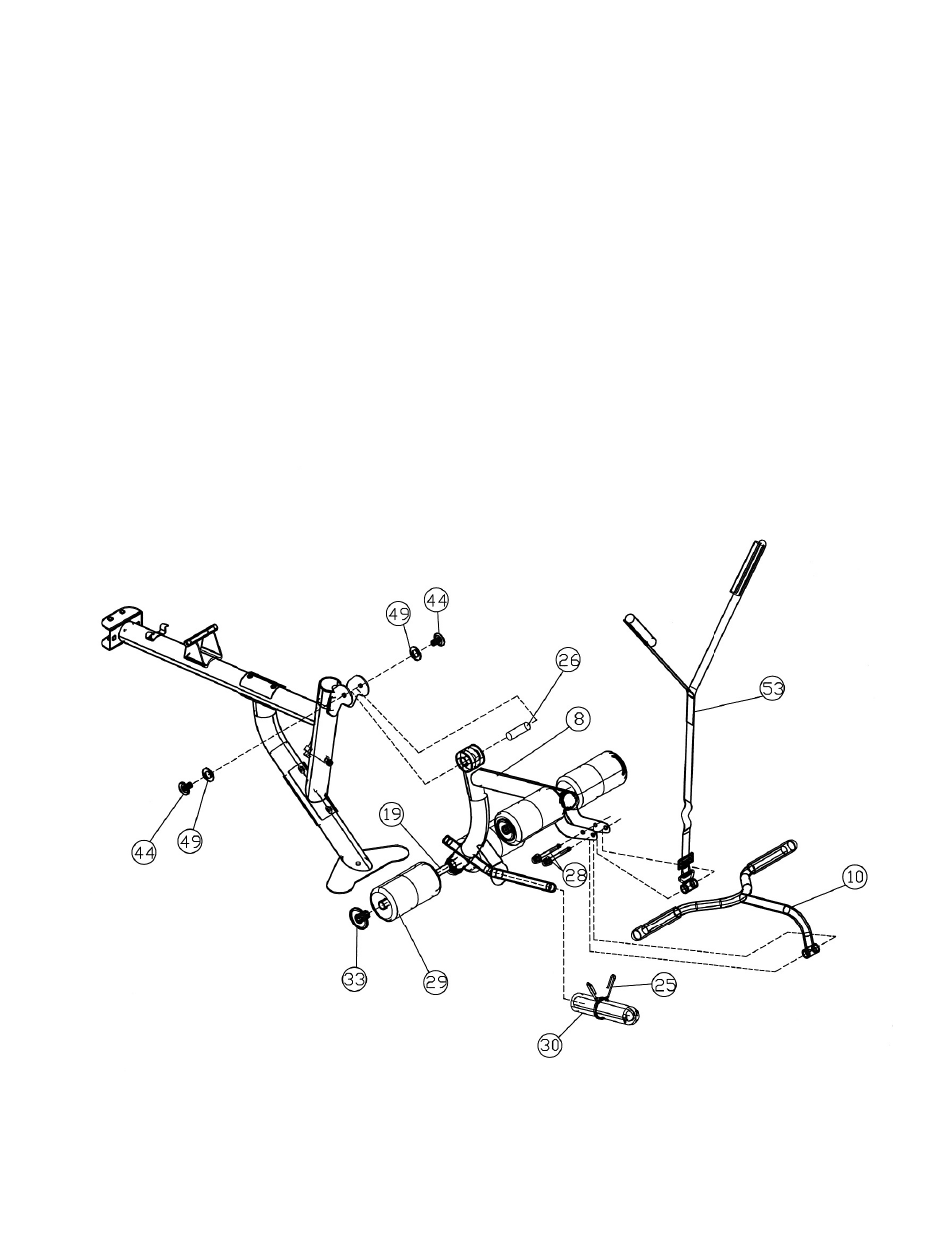

DIAGRAM 5
