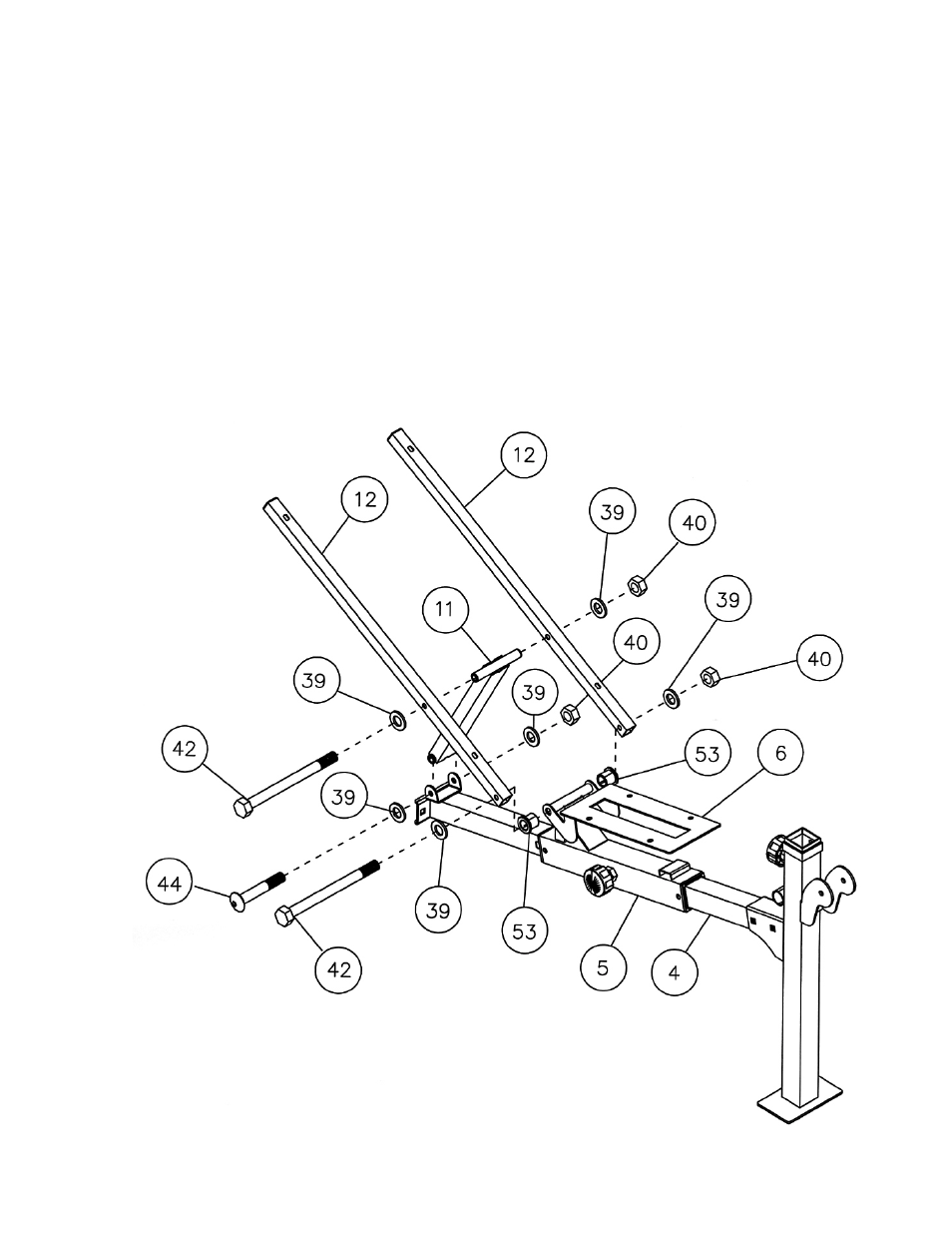

STEP 3 (See Diagram 3)

A.) Attach the Seat Bracket (#6) to the pivot on the Sliding Block (#5). Push two

¾” x

3/8” Bushings (#53) through the holes on the Seat Bracket into both ends of the pivot.

B.) Attach the Backrest Supports (#12) to the Bushings. Secure it with one M10 x 7 ¼”

Hex Bolt (#42), two

¾” Washers (#39), and one M10 Aircraft Nut (#40).

C.) Attach the Backrest Incline Support (#11) to the Backrest Supports (#12). Secure it

with a M10 x 7 ¼” Hex Bolt (#42), two

¾” Washers (#39), and one M10 Aircraft Nut

(#40).

D.) Attach the other end of Backrest Incline Support (#11) to the open bracket on the Main

Seat Support (#4). Secure it with one M10 x 3 3/8” Allen Bolt (#44), two

¾”

Washers (#39), and one M10 Aircraft Nut (#40).

E.) Use the Sliding Block to select desired Backrest Incline position. NOTE: Do not over

tighten the Bolts and Nuts. Make sure the Backrest Supports are able to incline.

DIAGRAM 3
