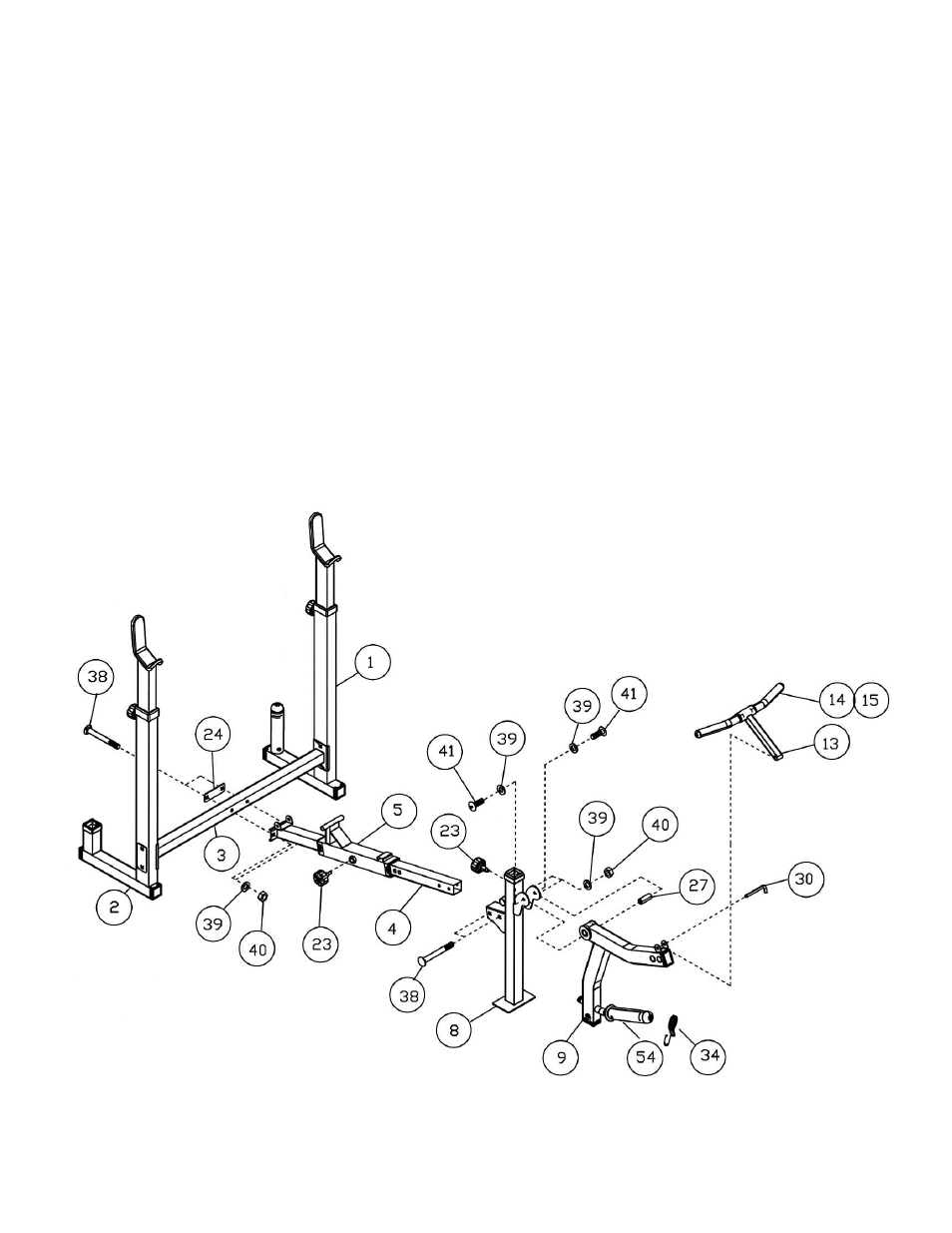

STEP 2 (See Diagram 2)

A.) Slide the Sliding Block (#5) onto the Main Seat Support (#4). Align the holes and secure

it with a Lock Knob (#23).

B.) Attach the Main Seat Support to the Cross Brace (#3). Secure it with two M10 x 2 ½”

Carriage Bolts (#38), one 4 3/8” x 1 ¾” Bracket (#24), two

¾” Washers (#39), and

two M10 Aircraft Nuts (#40).

C.) Attach the Leg Developer Holder (#8) to the Main Seat Support (#4). Secure it with two

M10 x 2 ½” Carriage Bolts (#38), two

¾” Washers (#39) and M10 Aircraft Nuts (#40).

Attach a Lock Knob (#23) to the hole on the Leg Developer Holder.

D.) Attach the Leg Developer (#9) to the open bracket on the Leg Developer Holder. Align

the holes and secure it with an Axle (#27), two M10 x 5/8” Allen Bolts (#41), and two

¾” Washers (#39).

E.) Attach an Olympic Sleeve (#54) Spring Clip (#34) to the weight post on the Leg

Developer. Attach a Spring Clip (#34) to the Sleeve.

F.) Attach the Curl Bar Handle Support (#13) to the open bracket on the Leg Developer.

Lock it with a 3” L-shaped Lock Pin (#30) for Arm Curl exercise. Remove the Pin when
using the Leg Developer.

DIAGRAM 2

5
