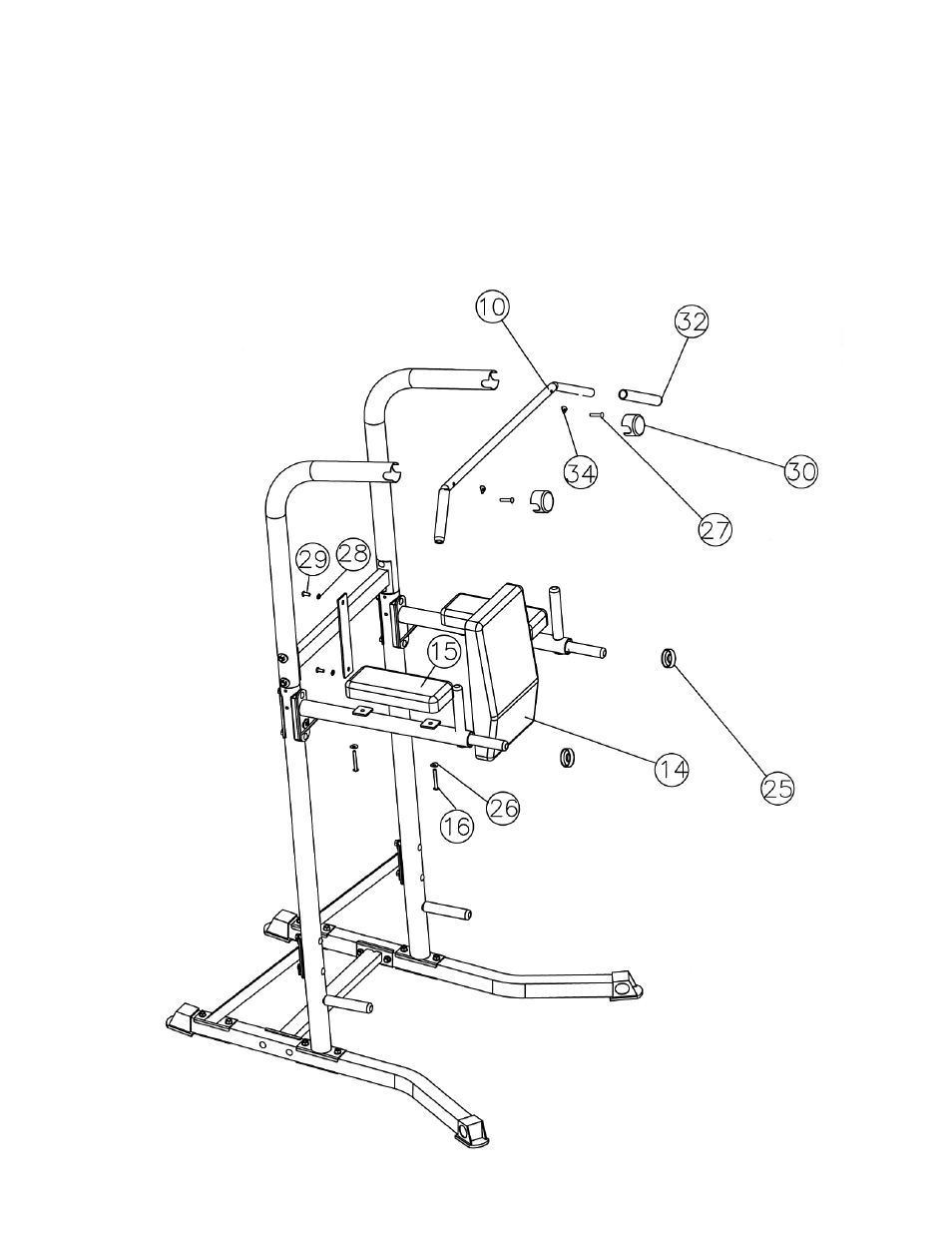

STEP 3 (See Diagram 3)

A.) Attach the Chin-up Bar (#10) to the top opening on the two Upper Upright Beams.

Secure the Chin-up Bar to each opening with one M8 x 1 5/8” Allen Bolt (#27) and Ø ½”
Bent Washer (#34). Cover each opening with an Upright Beam End Cap (#30).

B.) Attach the two Arm Pads (#15) onto the Dip Supports. Secure each Arm Pad with two

M8 x 2 ½” Allen Bolts (#16) and Ø 5/8” Bent Washers (#26).

C.) Attach the Backrest Board (#14) to the Cross Brace (#7). Secure it with two M8 x ¾”

Allen Bolts (#29) and Ø 5/8” Washers (#28).

D.) Securely tighten all Nuts and Bolts previously installed.
