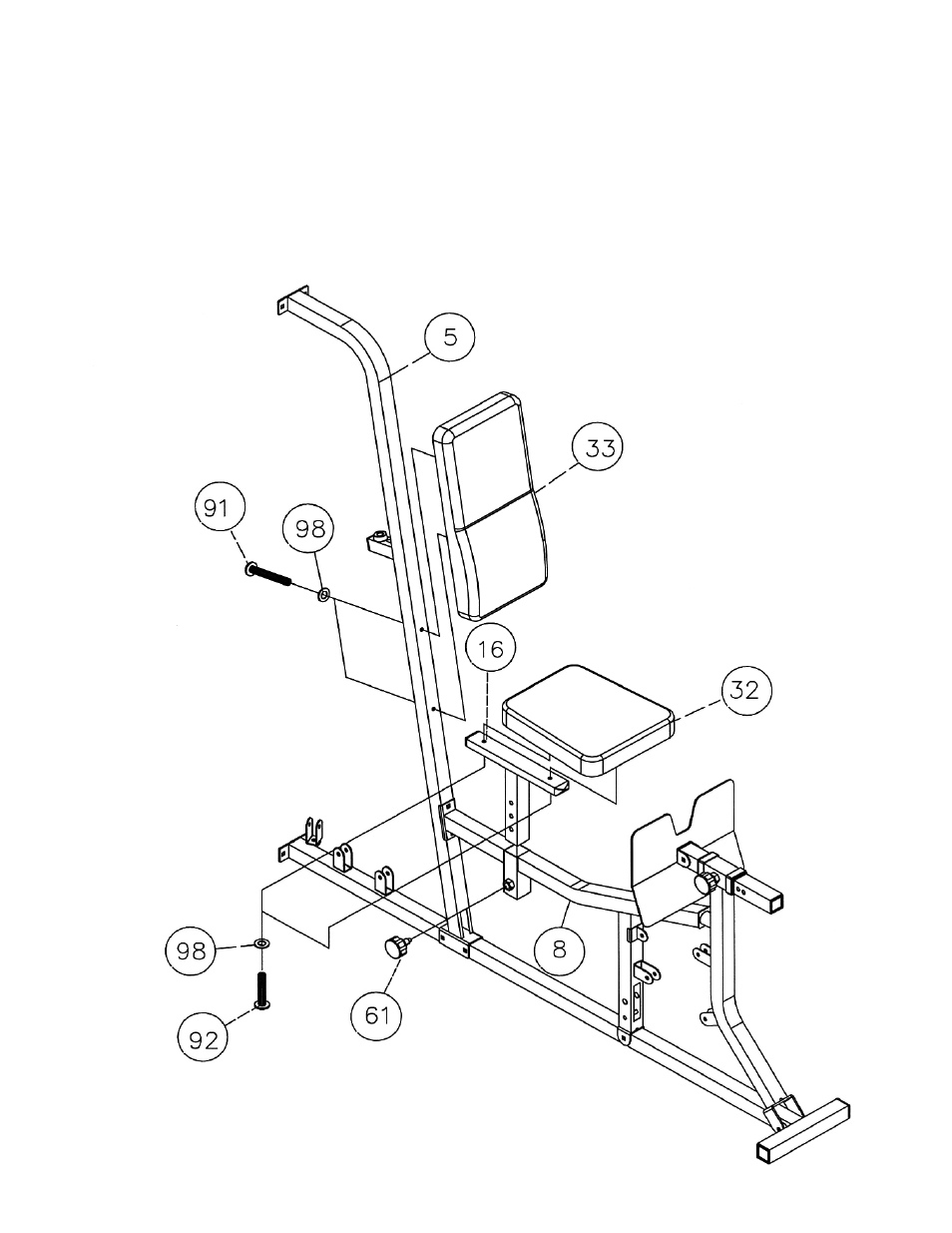

STEP 13 (See Diagram 13)

A.) Place a Seat Pad (#32) onto the Seat Incline Adjustment (#16). Secure it with two M8 x 1 5/8”

Allen Bolts (#92) and Ø 5/8” Washers (#98).

B.) Insert the Seat Incline Adjustment into the opening on the Left Seat Support. Secure it with a

M18 Lock Knob (#61) at desired position.

C.) Attach a Backrest Board (#33) to the Left Vertical Beam (#5). Secure it with two M8 x 2 3/8”

Allen Bolts (#91) and

5/8” Washers (#98).
