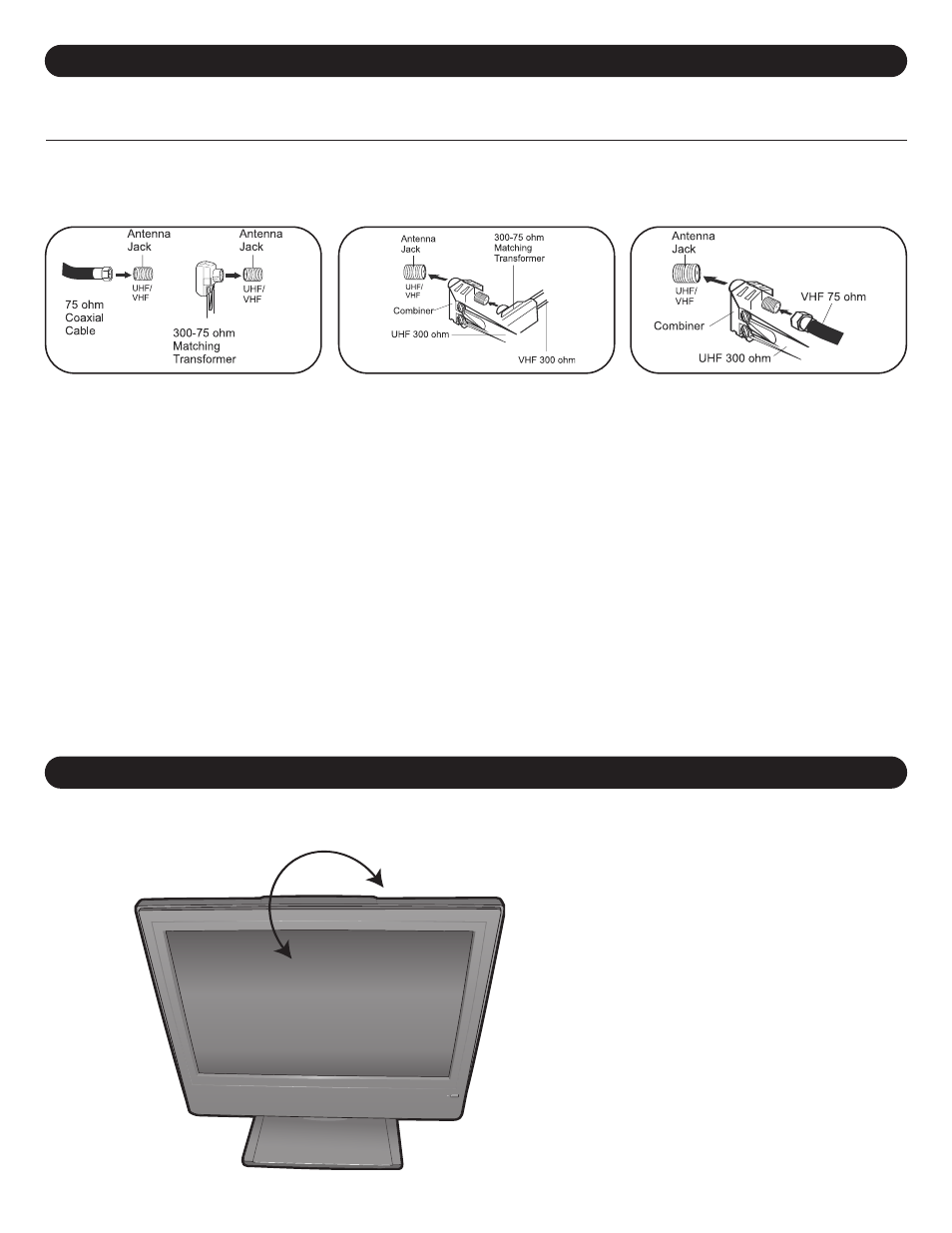

OUTDOOR ANTENNA CONNECTIONS

OUTDOOR VHF/UHF ANTENNA CONNECTION (ANTENNA NOT SUPPLIED)

Follow the instructions for the type of antenna system you intend to use.

Combination VHF/UHF

Antenna (Single 75 ohm cable

or 300 ohm twin-lead wire)

Separate VHF/UHF Antennas

Combination VHF/UHF

Antenna (Separate VHF and

UHF 300 ohm twin-leads)

Connect the UHF twin-lead wire to a

combiner (NOT SUPPLIED). Connect

the VHF twin-lead to a 300-75 ohm

matching transformer (NOT SUPPLIED).

Attach the transformer to the combiner.

Attach the combiner to the antenna jack.

Connect the 75 ohm cable from the VHF

antenna and the UHF antenna twin-lead

wire to a combiner (NOT SUPPLIED).

Attach the combiner to the antenna jack.

NOTE: If your VHF antenna has a twin-

lead wire use a 300-75 ohm

matching transformer, then

connect the transformer to the

combiner.

Connect the 75 ohm cable from the

combination VHF/UHF antenna to the

antenna jack.

If your combination antenna has a 300

ohm twin-lead wire, use a 300-75 ohm

matching transformer (NOT SUPPLIED).

RECEIVING ATSC CHANNELS

You can connect to an outdoor antenna to receive the free ATSC digital channels.

The size of the antenna you will need will depend on how far away the television station broadcast

antennas are from you. The further the distance the larger the antenna you need. If your unsure of how

far you are you can go to http://www.antennaweb.org and put in your zip code to search their database

for your distance and the direction of the broadcast antennas. If you’re fairly close you may be able to

get away with just a small antenna that will sit on top of your TV set. If you need a larger antenna you

can either put one in the attic or outside on an antenna mast.

VIEWING ANGLE ADJUSTMENT

This unit is designed to allow you to have a comfortable viewing angle, which can be adjusted by slightly rotating the monitor

to the front or rear.

NOTE: Do not force the LCD

monitor over its maximum viewing

angle settings. Attempting this will

result in damage to the monitor

and stand.
