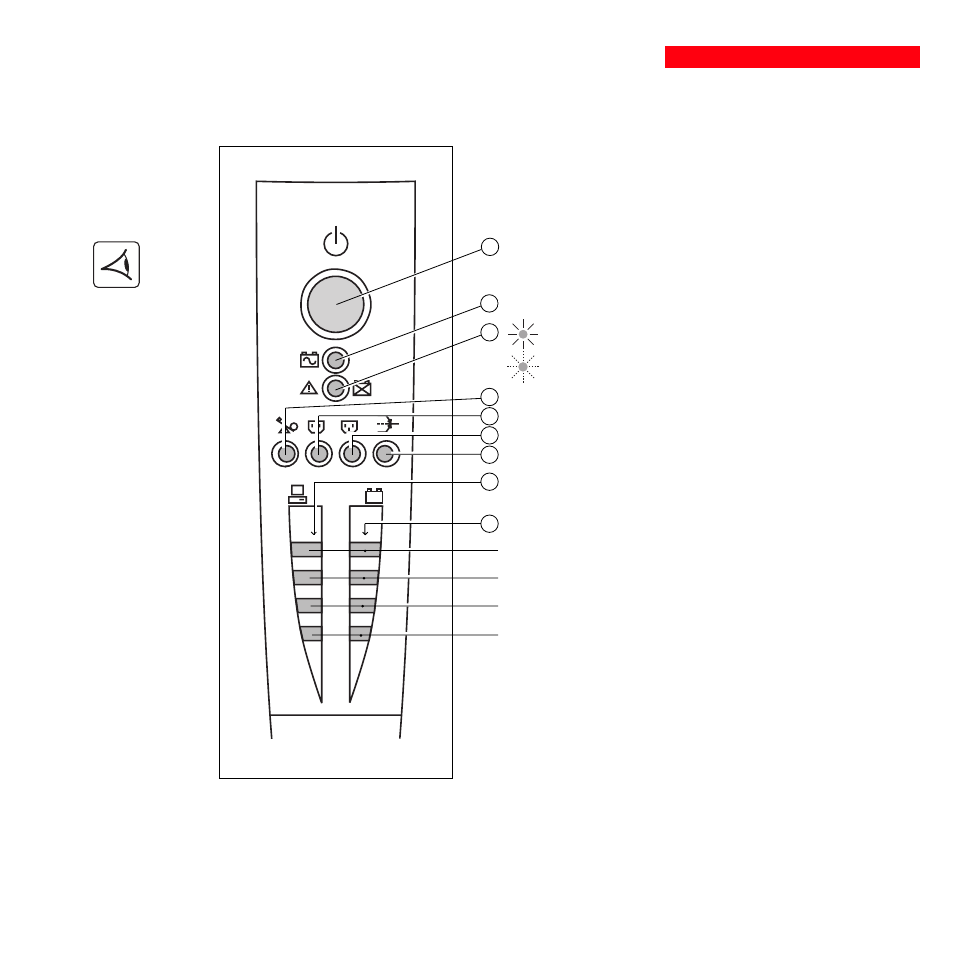

1.3 Control panel
Bargraph indicating percent load at output.
Group 1 programmable receptacles supplied with power.
Illuminated ON/OFF button for the receptacles.
Group 2 programmable receptacles supplied with power.
Operation on battery power.
10
11
12
15
14
18
17
13
16
1. Presentation
UPS fault.
Battery fault.
Overload.
Booster or fader mode.
Bargraph indicating the battery charge level.
0 to 25%.
26 to 50%.
51 to 75%.
76 to 100%.
