2. Installation
2.4 Connection to the RS232 or USB communications port (optional)

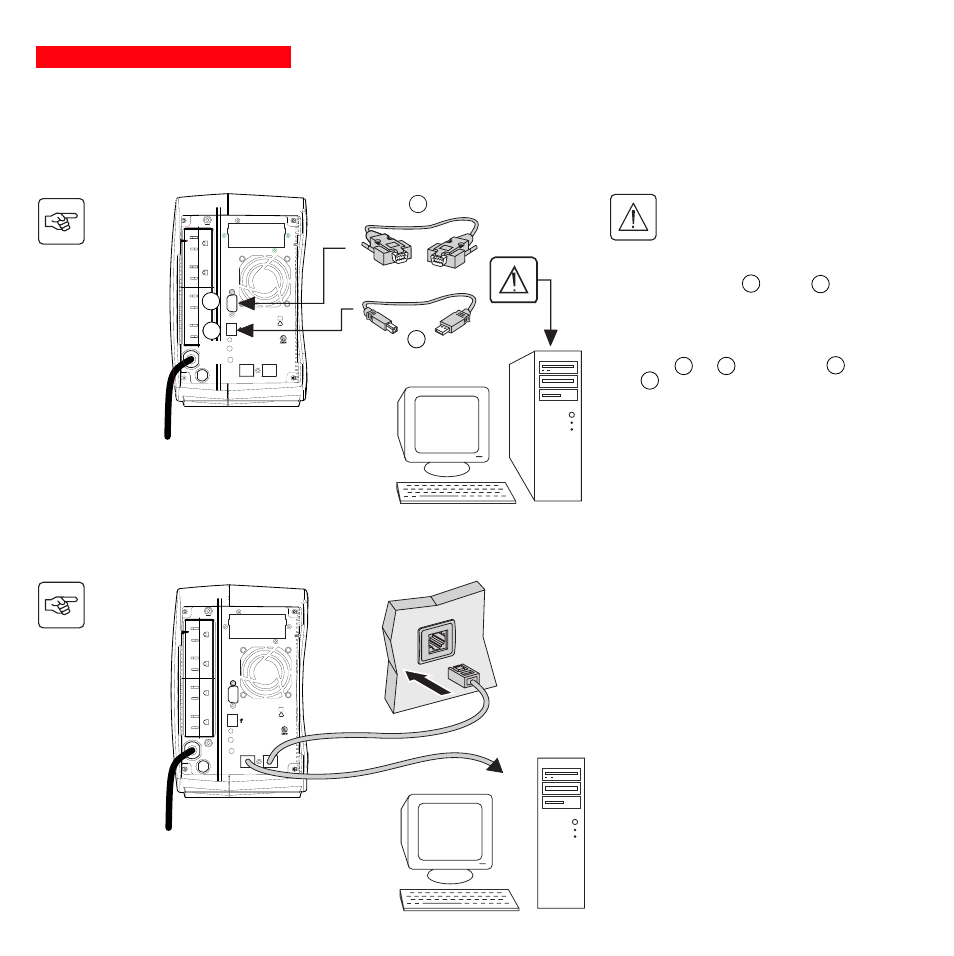

1 - Connect the RS232 21 or USB 22 com-
munications cable to the serial port or the
USB port on the computer.
2 - Connect the other end of the communica-
tions cable 21 or 22 to the RS232 2 or
USB 1 communications port on the UPS.
The UPS can now communicate with all
MGE UPS SYSTEMS supervision, set-up or
safety software.
21
22
The RS232 and USB communica-
tions ports cannot operate simulta-
neously.
2.5 Connection to the data-line protection port (optional)
The data-line protection function on the UPS
eliminates overvoltages flowing on the com-
puter-network lines.
Simply connect the line to be protected to the
UPS using the data-line protection connec-
tors (IN and OUT) as indicated opposite
(RJ45 cables not supplied).
Pb
Hertz 50/60 Hz W/VA 1000W/1440VA Ausg
Hertz 50/60 Hz Amps 12A MAX Netz Util
Load
Mains Reseau
Volt 120V~1O
Volt 120V~1O
36Vdc, 9Ah
U.S. PAT. NO. 6,094,363
Programmable
2
1
Vac OUT
I max 12A
U.P.S. 34Z5
R
Vac IN
SITE WIRING FAULT
Data line protection T20A/125V~
RS232
344-50254-00
IN OUT
A Pulsar Evolution 1500 tower UPS has been used below to illustrate the instructions. The principle is the same for all the
other tower and rack models.
1
2
