SECTION 3 – INSTALLATION
3-1. Specifications
Welding Power
Source Type
Type of Input
Power
Wire Feed
Speed Range
Wire
Diameter
Range
Welding Circuit
Rating
Overall
Dimensions
Weight
Deltaship
Constant Voltage
(CV) DC With
10-Pin Receptacle
24 Volts DC (5
Amp) For Wire
Feed Motor
24 Volts AC (0.5
Amp) For Gas
Valve
0 to 780 ipm
(0 To 20 mpm)
Solid Wire
.045 To 1/16 in
(1.2 To 1.6 mm)
Flux Cored Wire
.045 To .068 in
(1.2 To 1.7 mm)
Max Spool
Weight:
44 lb (20 kg)
38 Volts,
350 Amperes,
100% Duty Cycle
Length: 20-7/8 in
(530 mm)
Width: 9 in (229
mm)
Height: 13-3/4 in
(286 mm)
17.5 lb (8 kg)

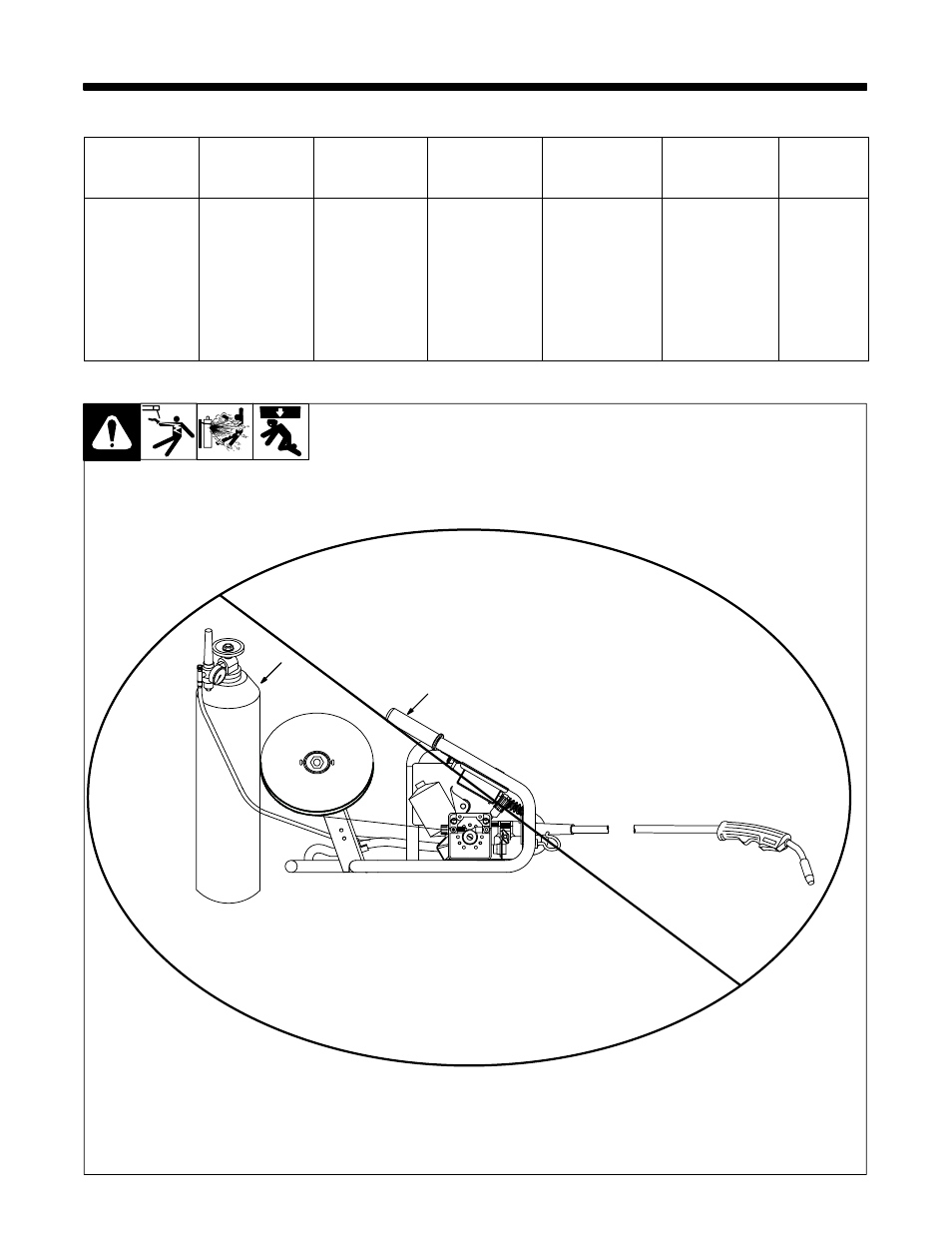

3-2. Site Selection
Ref. ST-802 483-A
1 Wire Feeder
2 Gas Cylinder (Customer
Supplied)
Y Do not put feeder where
welding wire hits cylinder.
Y Do not move or operate
equipment when it could tip.
2
1
