23
SECTION 4
MAINTENANCE

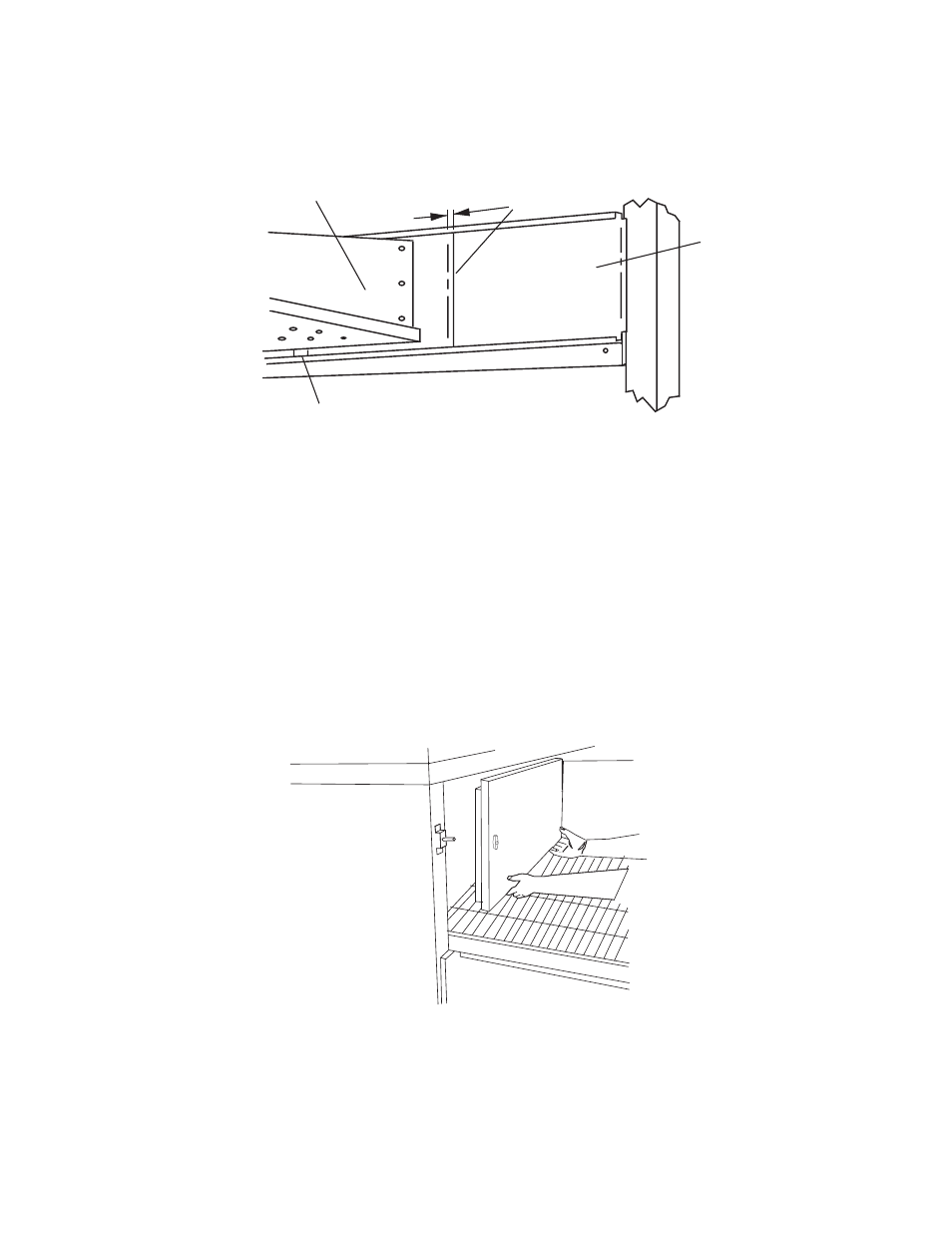

5. Install fingers and blank plates correctly with edges interlocked and no space between edges.
Figure 4-18
D. Reinstall End Plugs
1. Reinstall lower end plug. Be sure to tighten the wing screw on the end plug.
2. Reinstall conveyor.
3. Reinstall upper end plug. Be sure to tighten two wing screws on the end plug..
Figure 4-19
Blank Plate
Tab on Outer Plate of
Finger Located in Groove
Top Finger
Correct -
Edges Overlap
Completely
