21
SECTION 4
MAINTENANCE

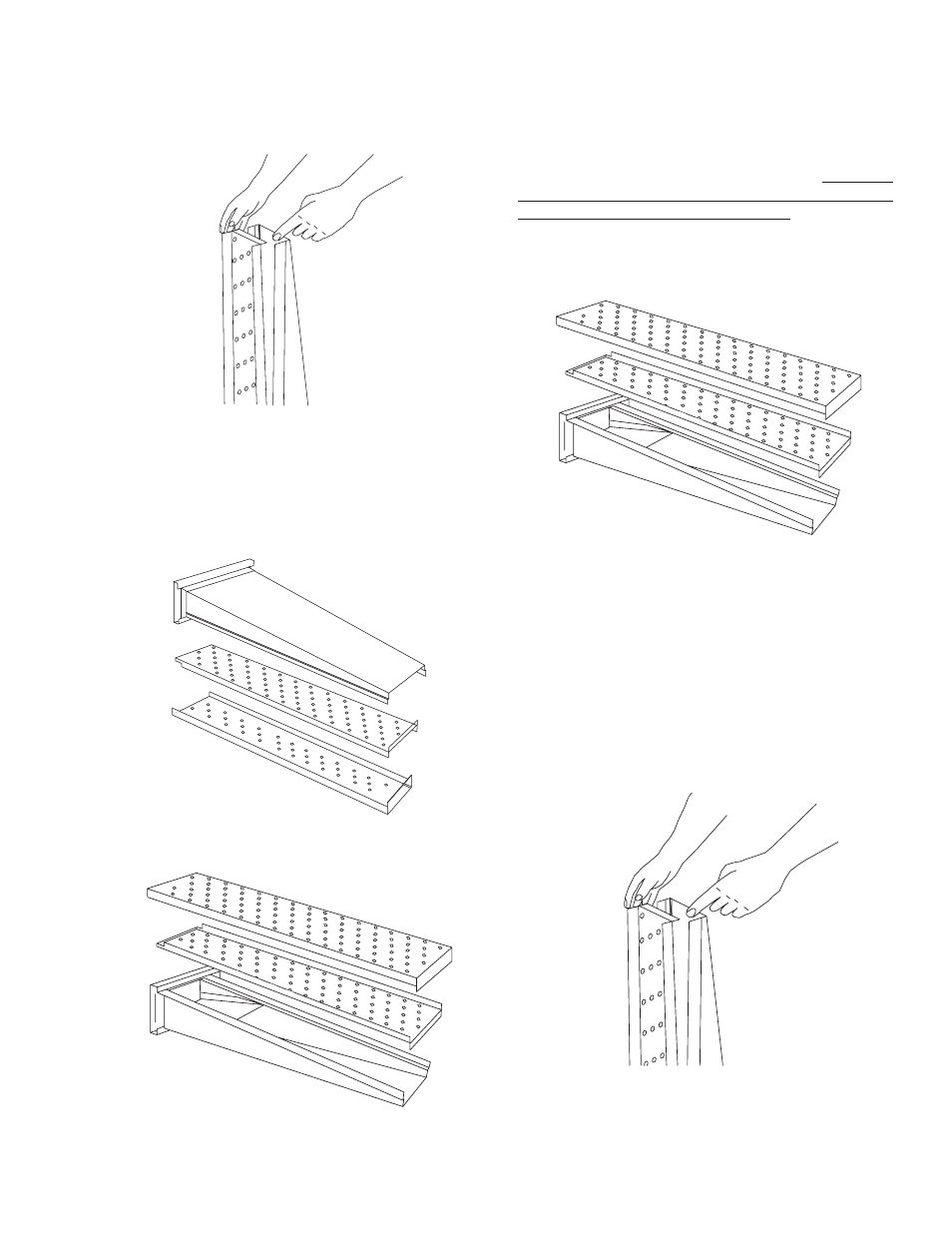

Figure 4-11
Figure 4-12. Standard Lower Finger
Figure 4-13. Standard Upper Finger
Figure 4-14
Figure 4-15
6. To remove the inner plate, pull the plate out and
then up.
7. The outer finger plate is stainless steel and may be
cleaned by either soaking in a hot, strong detergent
solution or using a caustic cleaner. The conveyor belt
can also be cleaned in the same way.
C. Reassembly of Air Fingers
1. Air fingers are made up of one inner plate, one
outer plate and the finger housing manifold. Be sure to
match up the markings (T1, T2, T3, etc.) on all parts of
the air fingers as you are reassembling.
2. Reassemble the inner plate. Keep your fingers clear
so you won’t pinch them. The inner plate of a finger
will only go in one way because of its design.
3. Replace the outer plate by placing your hands flat
on the top of the plate and pushing down. Keep your
fingers clear so you won’t pinch them.
