SECTION 4
MAINTENANCE
Figure 4-3
II. MAINTENANCE - MONTHLY
NOTE: The oven interior may require cleaning more than once a
month depending on the volume of baking. To clean the interior , you
have to disassemble some parts of the oven.
When cleaning your PS520-Series Oven note the following:
PRECAUTIONS-
1. Do not use excessive water or saturation of oven
insulation will occur.
2. Do not use caustic oven cleaner or the aluminized
finger manifold surfaces will be severely damaged.
When cleaning your oven, first remove all heavy debris
with a vacuum cleaner. Use a damp cloth for light
cleaning. For heavier cleaning of baked on grease and
carbon deposits use a non-caustic cleaner that will not
react with the aluminized finger manifold surfaces.
You can order non-caustic cleaner from your local
authorized Middleby Marshall Parts Distributor in the
quantities listed below
Part# Quantity
27170-0244 Case of Quarts (6)
27170-0246 Case of Gallons (4)
A. Removing Conveyor From Oven For Cleaning
1. Remove entry and exit trays
2. Loosen (do not remove) two screws on housing guard.
3. Remove motor housing guard.
4. Lift conveyor and remove chain.

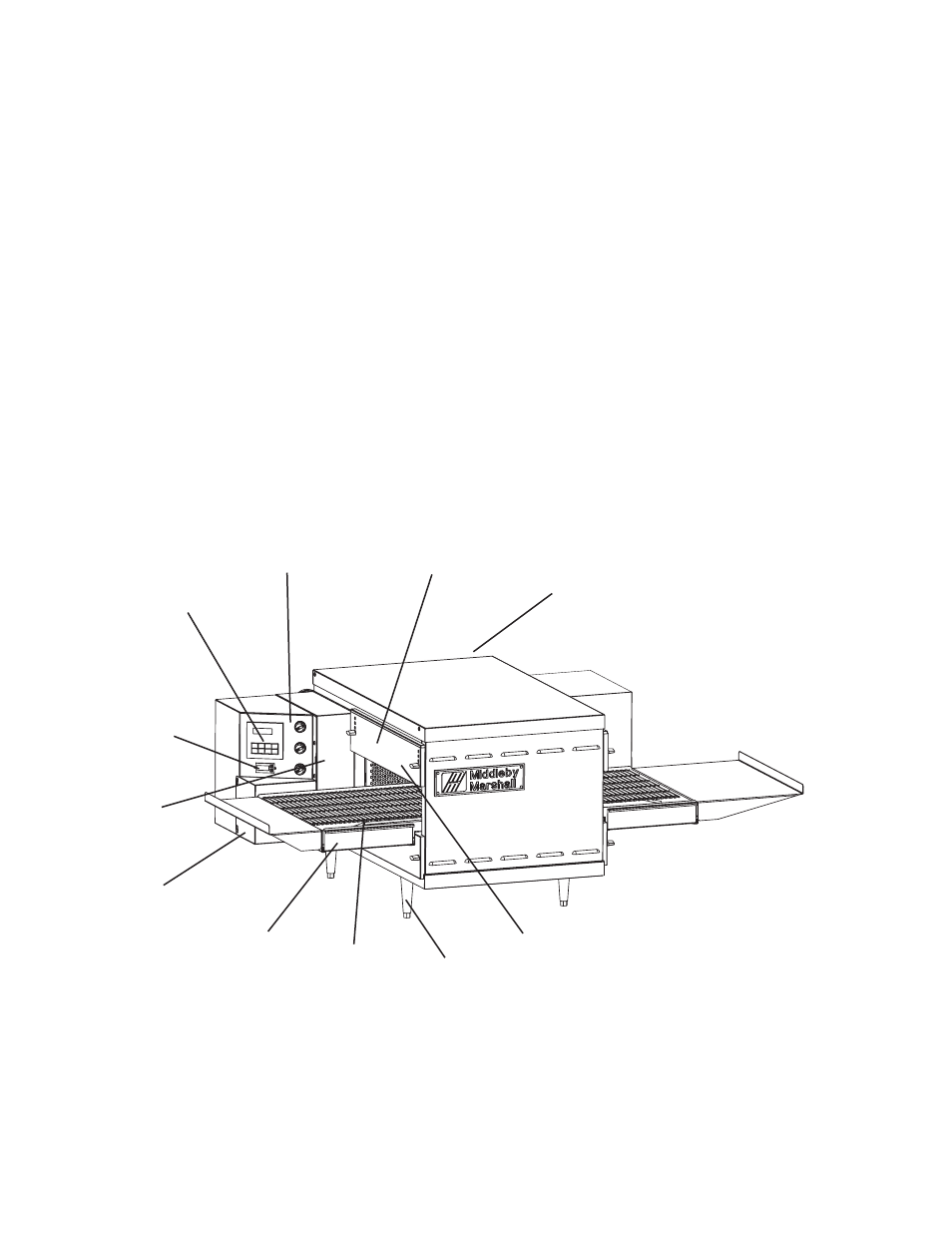

Removable Air Fingers
(inside baking chamber)
Console
Controls
Temperature
Controller
Conveyor
Speed
Control
Conveyor
Motor
(inside)
Motor
Housing
Guard
Removable
Crumb Pan
Removable
Conveyor
Assembly
Legs
Adjustable
Eyebrow
Blower and Cooling
Fan Motor
