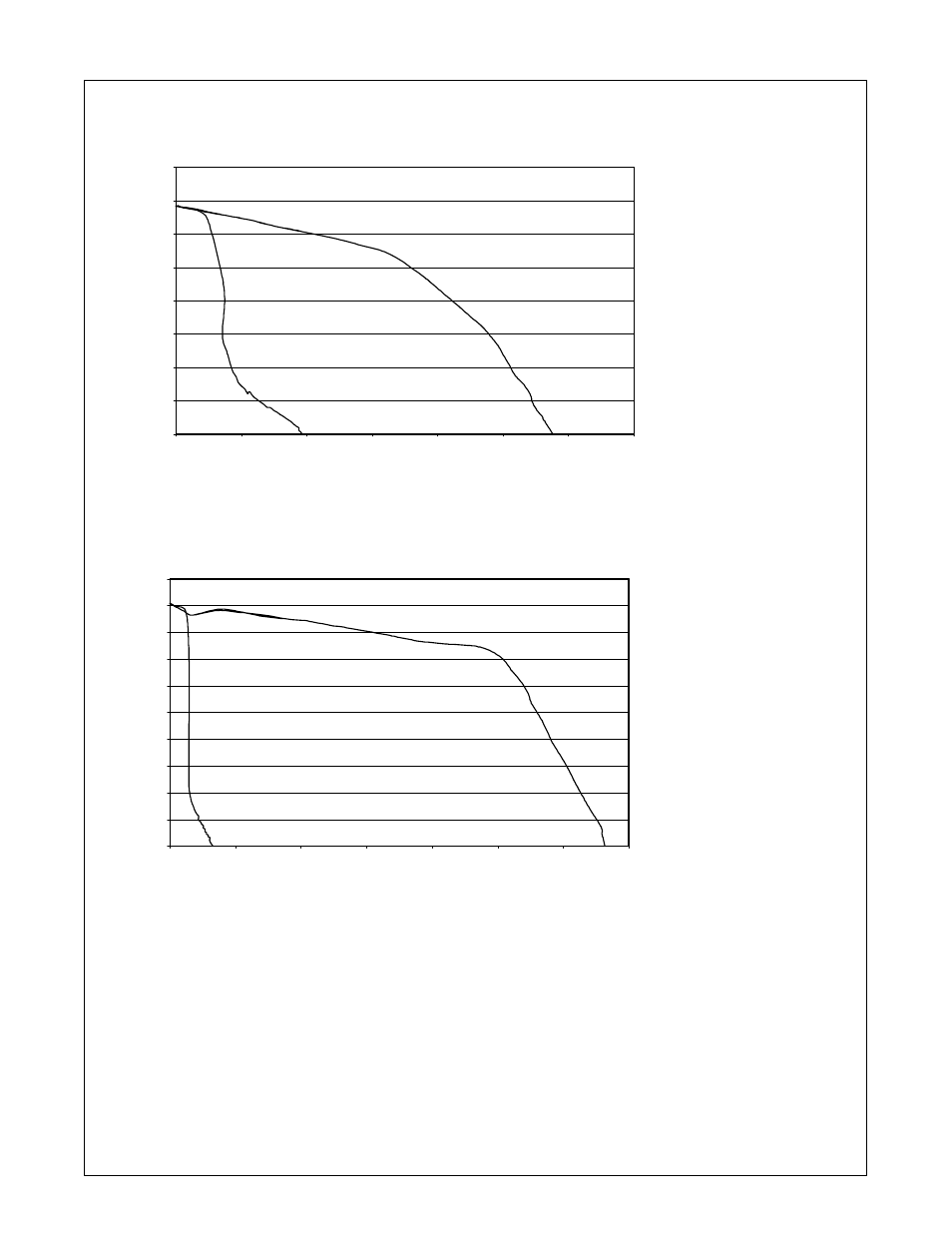

The volt-ampere curves show the
minimum and maximum voltage
and amperage output capabilities of
the welding generator. Curves of
other settings fall between the
curves shown.
.
AC output is not available on all
models.
A. CC/AC TIG Mode
B. CC/DC TIG Mode
4-8. TIG Mode Volt-Ampere Curves
0
5
10
15
20
25
30
35
40
45
50
0 50 100 150 200 250 300 350
DC AMPERES
DC
VO
LT
S
0
10
20
30
40
50
60
70
80
0 50 100 150 200 250 300 350
AC AMPERES
AC VOL
TS
