7 Momentum mo8 Manual
The mo8 enclosure can be used in a number of different confi gurations depending on the needs of
the end user. Units are shipped with rack ears, which can be front or rear mounted or can rotate for
vertical or horizontal surface mounting. Optional rubber stage boots allow the units to be used as
stage boxes.
An optional contractor panel can be ordered, which then allows the end user to terminate all analog
connections with simple “phoenix” screw terminal connectors or utilize a standard DB25 “break out
cable” instead of the front panel XLR connectors. This also allows passive “splitting” of the analog
signals if needed. Pro Co offers whatever breakout cables you need. Just ask for them when you
order your system.

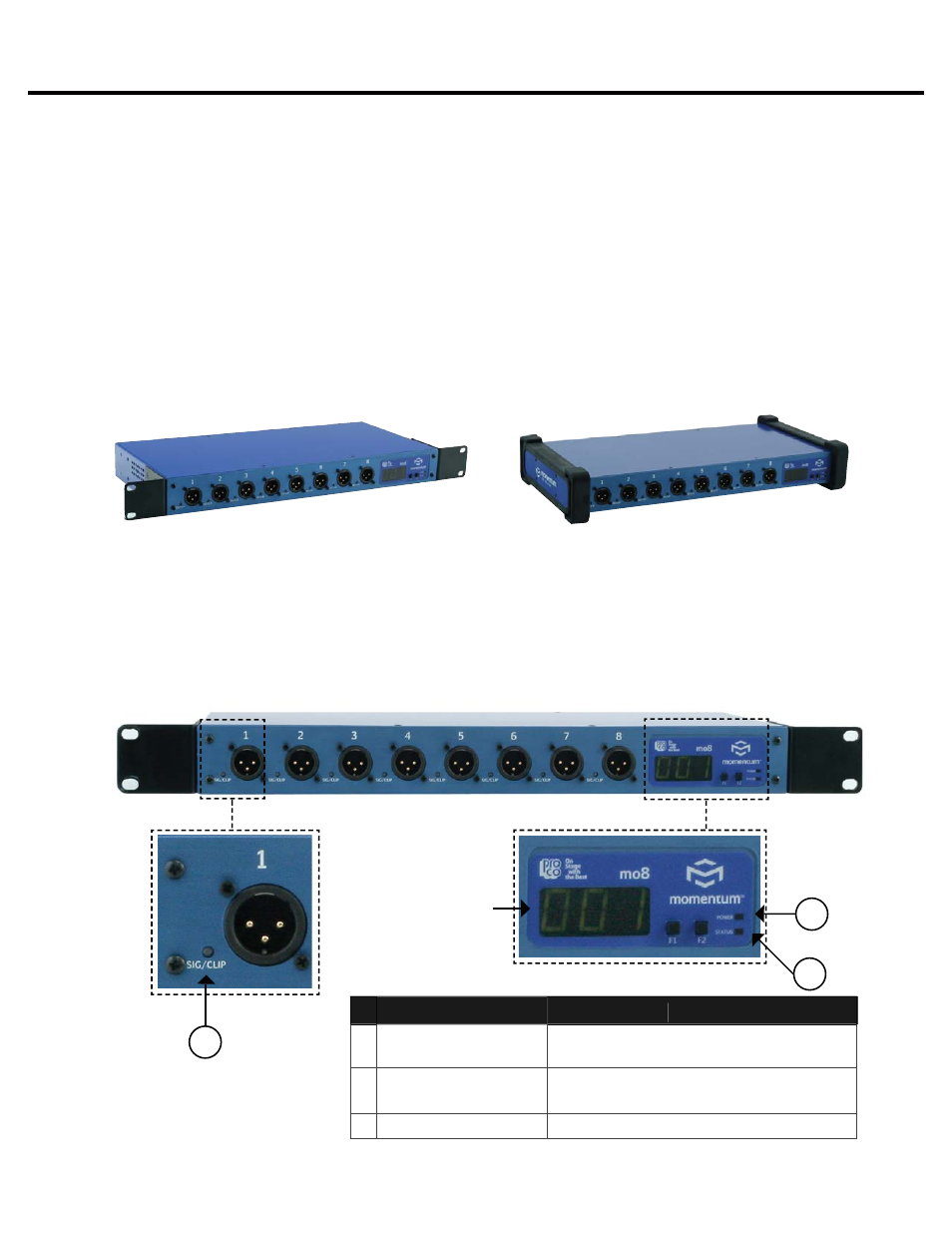

mo8 Front View with optional Stage Boots mo8 Front View with Rack Ears
Overview Chapter 1
The mo8 Enclosure
Front Panel
The front of the mo8 has a 2-button control panel and eight output channels. Each channel has
one signal / clip LED indicator that is visible on the front panel.
The control panel includes a power LED, status LED, a 3-digit readout display and control
buttons.
2-Button
Control Panel
LED Description
1 Signal/Clip LED Green = -40dB F.S. or above;
Red= -3dB F.S. or above
2 Status LED Green = Network connected;
Red = Network fault
3 Power LED Green = Digital power OK
1
3
2
