11 Momentum mo8 Manual
Connection and Setup Chapter 2
Network Confi gurations
The following are examples of network confi gurations. These samples show confi gurations using ana-
log inputs and outputs. Momentum digital input and outputs or DSP devices use the same methods for
network confi guration.
Using the Momentum system, the network confi guration possibilities are endless. For more information
on advanced confi gurations and support, visit www.procomomentum.com. For further support, con-
tact you local dealer or Pro Co technical support.

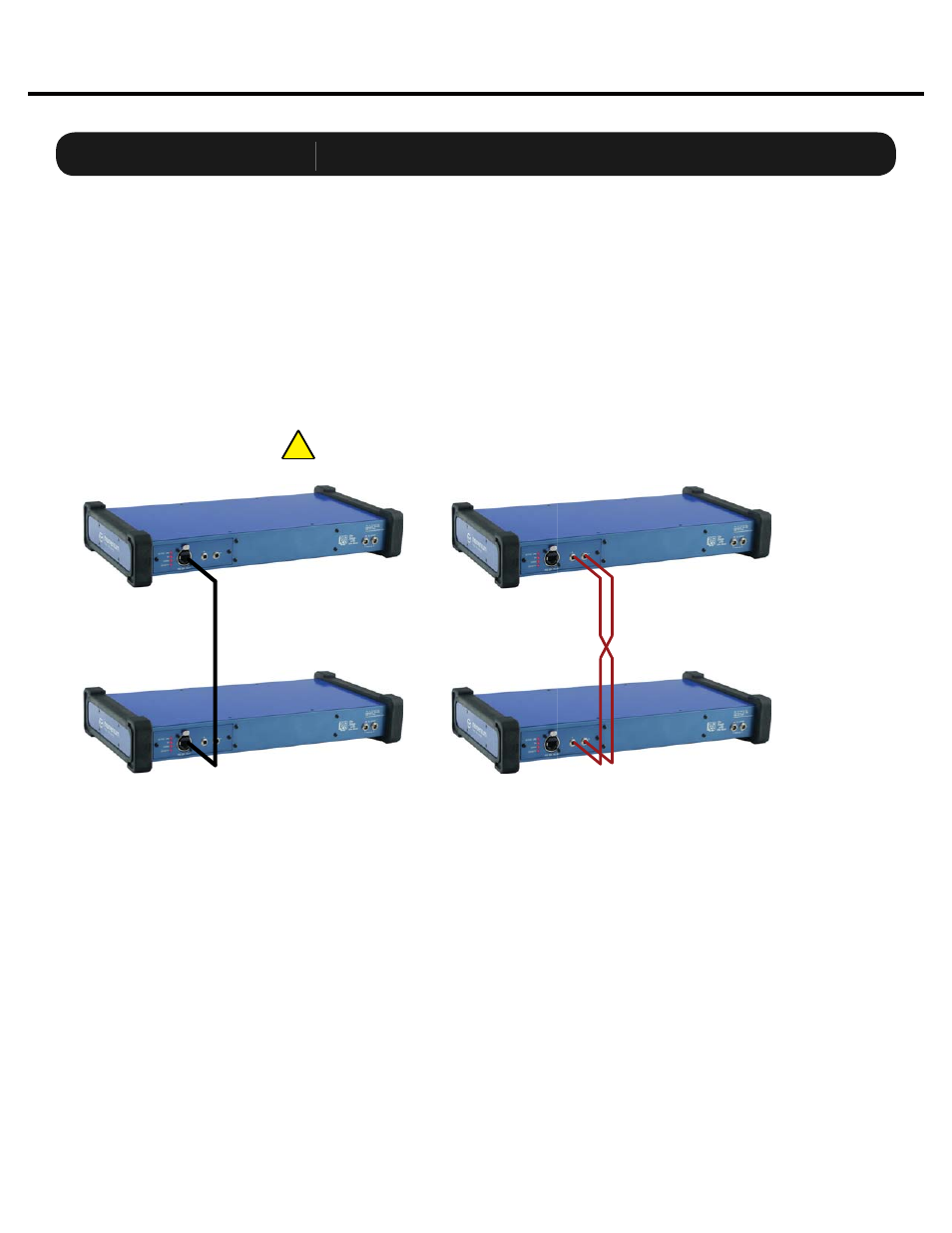

One to One Connection
CAT5E or CAT6
No crossover required
100 Meters
!
Direct Copper Connection
Optionally, Fiber and Copper may both be connected for redundancy.
mi8 Input
mo8 Output
Direct Fiber Connection
275 Meters using 62.5/125um MMF 200Mhz
550 Meters using 50/125um MMF 500Mhz
Cross Fiber Rx/Tx
Chn 001 must be present on the network at all
times. This unit will sync the network clock.
