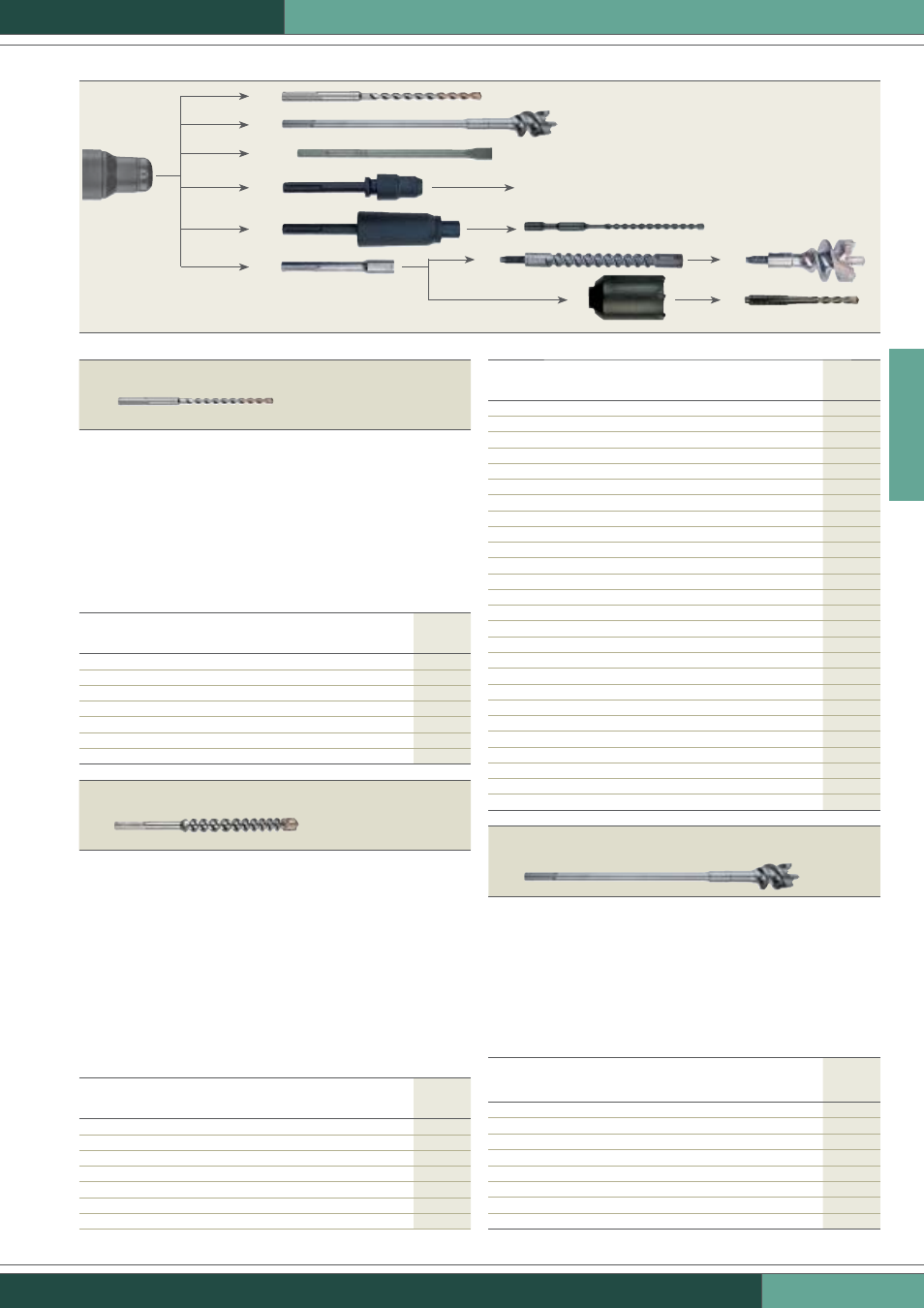

SDS-MAX ACCESSORIES
FOR HAMMERS WITH SDS-MAX BIT RETAINER
Carbide hammer drill bits, SDS-max, 2 cutters
Symmetrical construction of the head with main and
auxiliary cutters ensures centric guiding in the drill hole
and reduces friction, meaning longer life for the drill.
Short spiral inlets and large boring dust grooves
in the optimised double delivery helix ensure
quick boring dust discharge.
Maximum energy transfer due to dynamic
core strengthening.
For use in concrete, masonry, natural stone
Diameter
mm
Working length
mm
Overall length
mm
Order
no.
12
200
340
6.23310
12
400
540
6.23311
12
550
690
6.23312
14
200
340
6.23313
14
400
540
6.23314
15
200
340
6.23315
15
400
540
6.23316
Carbide hammer drill bits, SDS-max, 4 cutters
Symmetrical construction of the head with main and
auxiliary cutters ensures centric guiding in the drill hole
and reduces friction, meaning longer life for the drill.
Short spiral inlets and large boring dust grooves in
the optimised double delivery helix ensure
quick boring dust discharge.
Maximum energy transfer due to dynamic core strengthening.
The additional 2 auxiliary cutters protect the drill
bit on contacting iron reinforcement and helps prevent
damage to the bit head.
For use in concrete, masonry, natural stone
Diameter
mm
Working length
mm
Overall length
mm
Order
no.
16
200
340
6.23317
16
400
540
6.23318
18
200
340
6.23319
18
400
540
6.23320
20
200
320
6.23321
20
400
520
6.23322
20
800
920
6.23323
Diameter
mm
Working length
mm
Overall length
mm
Order
no.
22
200
320
6.23324
22
400
520
6.23325
22
800
920
6.23326
24
400
520
6.23328
24
200
320
6.23327
25
200
320
6.23329
25
400
520
6.23330
25
800
920
6.23331
28
250
370
6.23332
28
450
570
6.23333
28
550
670
6.23334
30
250
370
6.23335
30
450
570
6.23339
32
250
370
6.23340
32
450
570
6.23341
32
800
920
6.23342
35
250
370
6.23343
35
450
570
6.23344
35
550
670
6.23345
38
250
370
6.23346
38
450
570
6.23347
40
250
370
6.23348
40
450
570
6.23349
40
800
920
6.23350
45
450
570
6.23337
52
450
570
6.23338
Carbide router bits (one-piece) with SDS-max
Extremely long tool life even when using powerful
rotary hammers
Optimum power transmission to bit head without
damping loss of impact force.
3 large spirals for fast drilling progress, low vibration
drilling and quick dust discharge.
Ideal for drilling into reinforced iron and hard materials.
Diameter
mm
Overall length
mm
Order
no.
45
550
6.23375
45
990
6.23376
55
550
6.23377
55
990
6.23378
65
550
6.23379
65
990
6.23380
80
550
6.23381
80
990
6.23382
for carbide-tipped hammer drills
with SDS plus shank end
for carbide-tipped
hammer drills with
splined shank end
