gac2.2H 60 Hz geNeRaTOR • OpeRaTiON aNd paRTs maNual — Rev. #1 (03/31/10) — page 17
cOMpOnents (generatOr)
120 V
OFF
GAC-2.2H
POWERED by
Honda Engines
120V
15A
GR PRISE DE TERRE
AC CIRCUIT BREAKER
INTERRUPTEUR DE
COURANT PRINCIPAL
NEUTRAL BONDED TO FRAME
NEUTRE MIS A LA MASSE A LA CARCASSE DU MOTEUR
211052
AC VOLTMETER VOLTOMETRE CA
A21210011
1 2
6
7
5 4
3

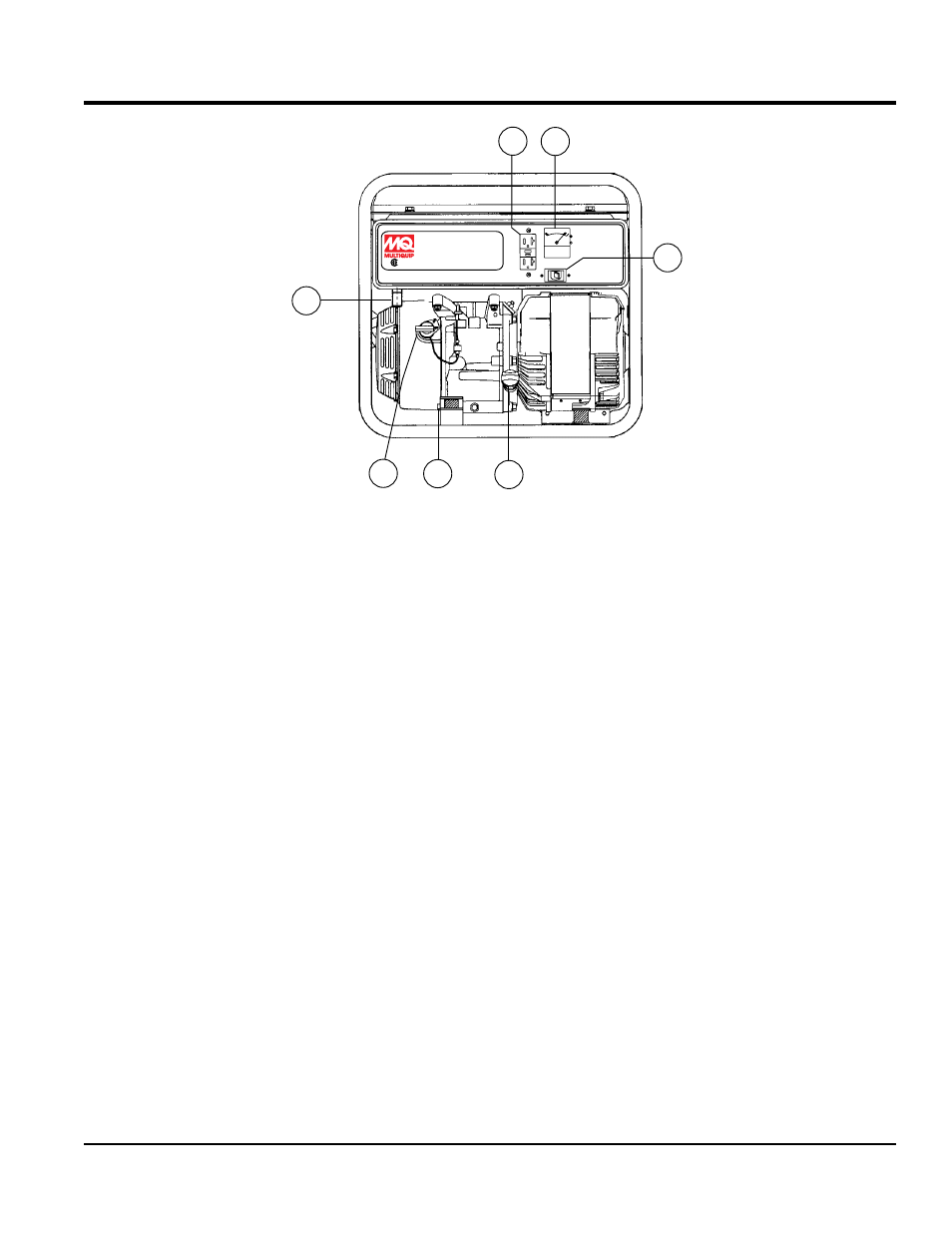

Figure 3. Generator Components
1. gFci duplex Receptacle – NEMA 5-15R, GFCI
receptacle will provide 120V @ 15 amps.
2. ac-voltmeter – Indicates (with a mark) the rated 60 Hz
(single-phase) output voltage. In addition the voltmeter
can also be used as a diagnostic tool. If the voltmeter
indicator (needle) is below the rated voltage, engine
problems may exist (low/high RPM's).
To prevent damage to the generator or power tools
due to low output voltage, turn the generator OFF and
consult your authorized Multiquip service dealer.
3. main Breaker – single-pole, 15 amp circuit breaker
protects the generator from short circuiting or
overloading. When starting the generator always have
circuit breaker placed in the OFF position.
4. engine Oil Filler cap – Remove cap/dipstick when
the adding of engine oil is required. See Table 4 for
recommended type engine oil.
5. chassis ground – This ground connection point
should be connected to a good earth ground (ground
rod).
6. engine ON/OFF switch – Use this switch to start and
stop the engine. Place switch in ON position to start
engine, to stop engine place switch in OFF position.
7. gFci ground – GFCI ground connection point.
