LOG PLACEMENT
VF30 INSTALLING LOGS ON GRATE
(See Figure 14)
1. Install back log (#1) on rear log support bracket.
2. Install left bottom log (#2) on left log support bracket in
front of back log.
3. Install right bottom log (#3) on right log support bracket
in front of back log.
4. Install top left log (#4) on top of left bottom log.
5. Install top right log (#5) on top of right bottom log.

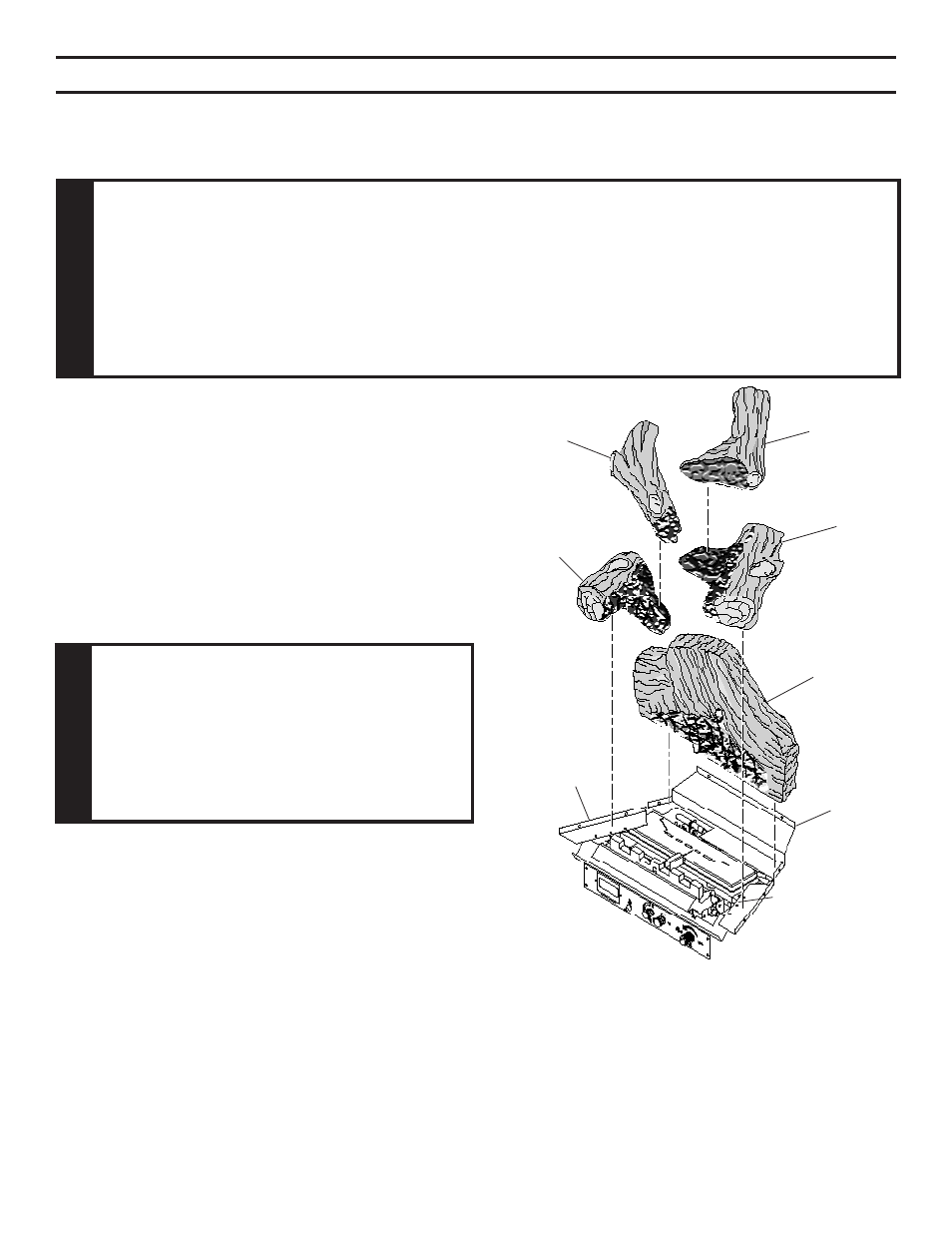

Figure 14 - Installing Logs to Grate (VF30)
Before you begin — This unit is supplied with four ceramic fiber logs. Do not handle these logs with your bare
hands. Always wear gloves to prevent skin irritation from ceramic fibers. After handling the logs, wash your
hands gently with soap and water to remove any traces of fibers.
Right
Bottom
Log #3
Right
Top Log
#5
Rear Log
Support
Bracket
Left Log
Support
Bracket
Right Log
Support
Bracket
W
ARNING
The positioning of the logs are critical to the safe and clean operation of this heater.
Sooting and other problems may result if the logs are not properly and firmly positioned
in the appliance. Never add additional logs or embellishments such as pine cones,
vermiculite or rock wool to the heater. Only use the logs supplied with the unit.
Failure to position the parts in accordance with diagrams below or to use only
parts specifically approved for this heater may result in property damage or
personal injury.
CAUTION
During initial operation of the new
heater, burning logs will give off
a paper burning smell and orange
flames will be present. Simply open
the windows for a few hours to vent
the odor.
