REMOVING UNIT FROM CRATE
1. Remove two (2) straps. See Figure 7.
2. Open plastic bag and slide to bottom of unit. See
Figure 8.
3. Lift up on ash lip and pivot down to open control
door. See Figure 9.
4. Lift up on front. Pivot bottom of front out. Remove
front. See Figure 9.
5. Lift screen to remove.
6. Remove log box from inside of unit.
7. Lift unit off pallet. Lift unit up high enough to clear
upright supports unit is sitting on.
Note: You will need at least two (2) strong
people to lift unit off of pallet.

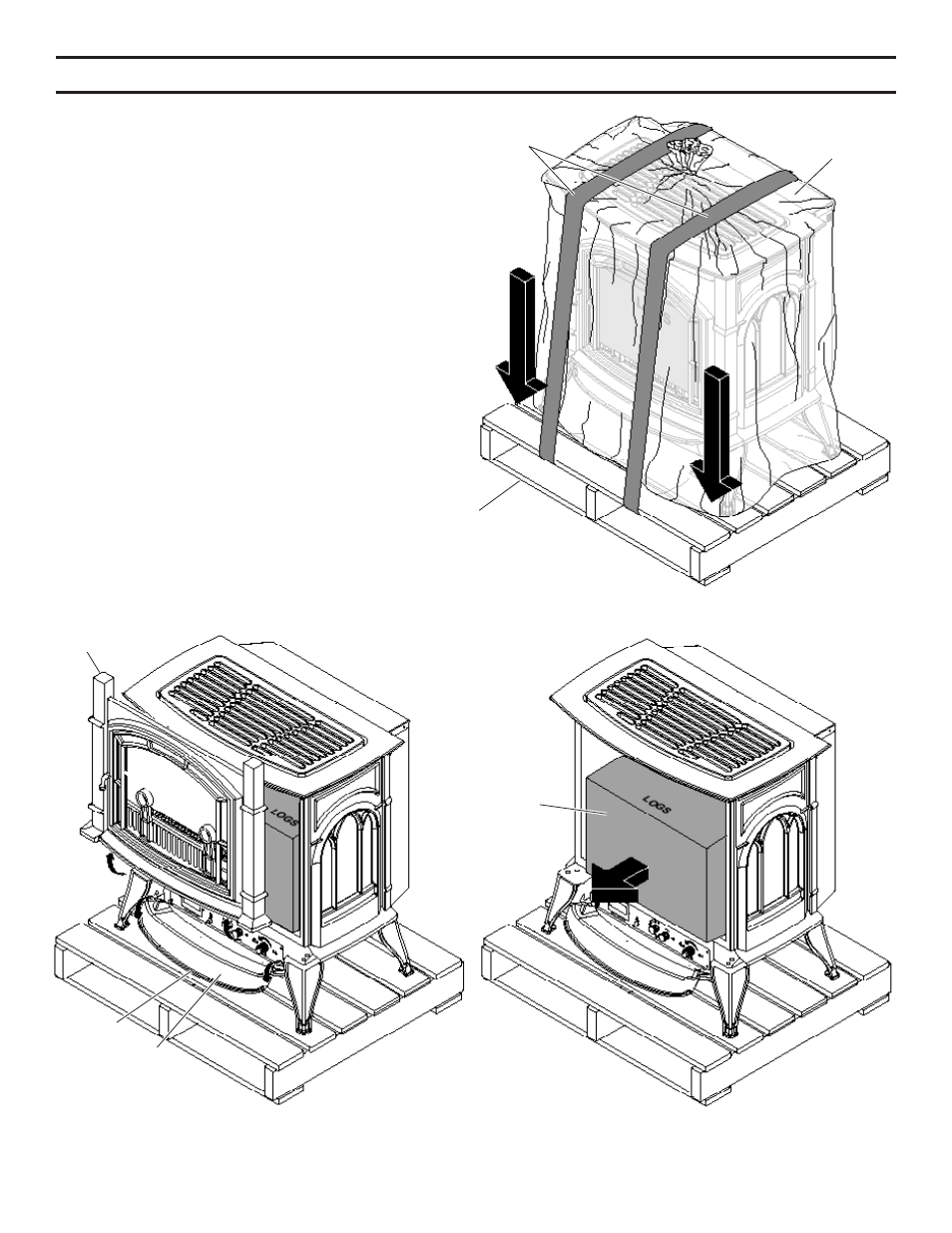

Figure 7 - Removing Straps and Plastic from Unit
Figure 8 - Opening Control Door and Removing
Hearth Door
Figure 9 - Removing Log Box
Straps
Plastic
Bag
Control
Door
Ash Lip
Hearth
Door
Log
Box
Pallet
