ENGLISH m ENT buttons
Used to execute a function selected with the Jog Dial n.
There are 2 ENT buttons, one on each side, so that the remote
controller can be used just as easily with either hand.
The characters on the display can also be programmed.
, Function buttons
Used to switch the remote controller to the command sets for specific
sources (amplifier, receiver, etc.), thereby allowing a single remote
controller to control up to 11 different components. To use these
buttons to switch the amplifier’s source, press the desired button twice
within 2 seconds. The AMP button , is used only to switch command
set of the remote controller itself and therefore does not transmit any
signal. Further, the function buttons may also be programmed to
execute macros. (A macro allows a complex string of operations to be
performed in series simply by pressing a single button.) One button
can be programmed to learn sequences containing up to 10
commands. The following is an example of such a sequence that can
be activated automatically using a macro:
Turn the receiver ON
→ Switch the function to DVD → Set the
Surround Mode to Dolby Digital → Switch the TV to video input → Set
the DVD player to Play.
. VOLUME up / down button
Used to adjust the volume on receivers and other components
equipped with volume control.
⁄0 CURSOR/TRANSPORT CONTROL buttons
Used to operate on-screen and other displays used by receivers and
other components, as well as to operate the PLAY, STOP, PAUSE,
NEXT, and PREVIOUS functions of each source.
⁄1 < • 3 (CURSOR/ TRANSPORT
CONTROL switching) button
Used to switch the function of the CURSOR/ TRANSPORT
CONTROL buttons ⁄0between the CURSOR and TRANSPORT
CONTROL functions, with the currently selected function displayed on
the LCD when the DVD or VCR functions are selected. When
functions other than DVD or VCR are selected, the < •
3 button
remains inactive.
⁄2 Channel up / down button
Used to controls the up/down function of tuner, or allows one to cycle
through the tuner presets.
⁄3 MUTE button
Used to temporarily mute the sound for amplifiers, receivers, etc.
⁄4 GUIDE button
Used to call up the on-screen menus used to control DVD players,
digital satellite systems (DSS), and other menu-equipped systems.
⁄5 CLEAR button
Used to clear the contents of memory or programmed functions.
⁄6 MEMO button
Used to program your CD player’s track memory, or to enter a VCR
recording program, and can be used to provide the MEMO function
included with other components in your system.
⁄7 Ten-Key pad/Surround Mode buttons
Used to enter numeric digits, useful for finding a specific track on a
CD, or to tune a preset radio station, etc. When the function is set to
AMP, it is possible to choose Surround Mode, etc.
⁄8 Infrared Transmitter/Receiver Window
Used to transmit remote control signals based on beams of infrared
light to system components. To ensure that these signals are properly
received, make sure that this window is pointing in the general
direction of the infrared receiver on the amplifier or other components.
This window should also be pointed toward the source remote
controller when using Programmable Learning function.
Note:
The MODE z, MACRO x, and < • 3 (CURSOR/TRANSPORT
CONTROL switching) ⁄1 cannot be programmed.

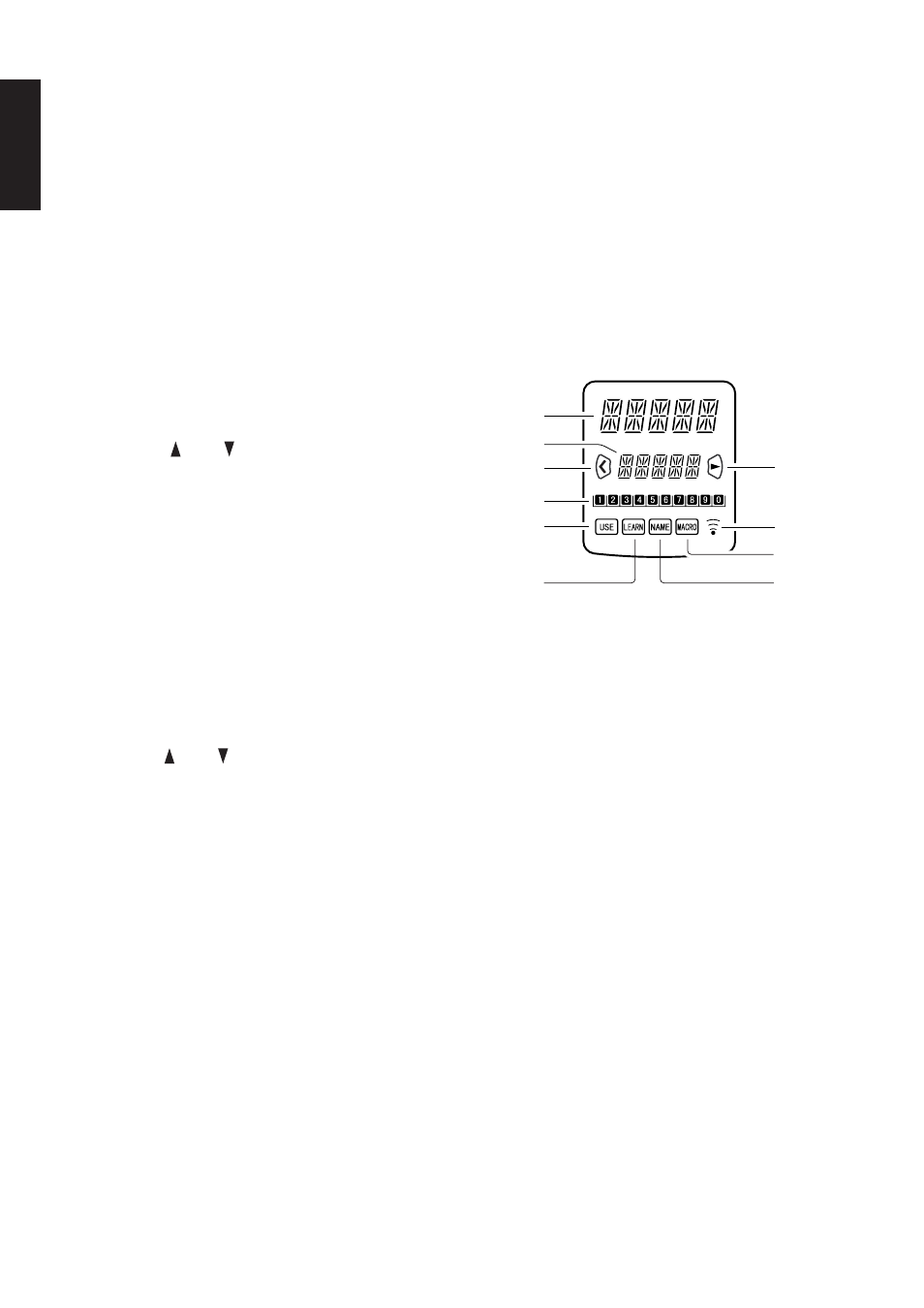

LCD (Liquid Crystal Display)
Information about currently selected functions and modes is displayed
on the LCD. Pressing any buttons will call up a full display of
information on the status of that function or mode. This display will
disappear after approximately 1 minute, except for the Function
Name indicator a, which is always displayed.
a Function Name indicator
Displays the name of the currently selected function (DVD, TV, etc.)
using up to 5 characters.
b Command Name indicator
Displays up to 10 types of commands for each function using up to 5
characters.
c Command Page indicator
Allows confirmation of current command page. Also, when setting or
transmitting macros, displays information such as the number of
macro steps and the time intervals between command transmissions.
d Transmission indicator
Indicates when the remote controller is transmitting a signal.
e USE indicator
For normal operation the USE indicator is displayed.
f LEARN indicator
Indicates when the remote controller is in the LEARN mode.
g NAME indicator
Indicates when the remote controller is in the NAME mode and a
function name is being changed.
h MACRO indicator
Indicates when the remote controller is in the MACRO mode.
i CURSOR indicator
Indicates when the CURSOR/TRANSPORT CONTROL button is in
the cursor mode.
