DVD Player/Video Game with

Component Video

(Figure 9)

1. Connect the Component Video cables from

(YCb Cr or Y Pb Pr) VIDEO OUT on the back of

the DVD player to COMPONENT (1 or 2) on
the TV side panel. The correct connections are:

Y to Y

Cb or Pb to Pb

Cr or Pr to Pr

2. Connect a set of audio cables from AUDIO OUT

on the back of the DVD player to COMPONENT

AUDIO Input (1 or 2) on the TV side panel.

• The red cable connects to the R (right)channel
• The white cable connects to the L (left) channel

NOTE: Some video game systems support component

connections. Please refer to your video game
console Owner’s Guide.

NOTE: If your DVD player supports progressive

scan playback, be sure to set your player

accordingly. Please refer to your DVD player’s

Owner’s Guide.

Other S-Video Device

(Figure 10)

1. Connect a S-Video cable from VIDEO OUT on

the device back panel to VIDEO INPUT-1 or

INPUT-2 on the TV side panel.

2. Connect a set of audio cables from AUDIO OUT

on the device back panel to AUDIO INPUT-1 or

INPUT-2 on the TV side panel.

• The red cable connects to the R (right) channel
• The white cable connects to the L (left) channel

If your S-Video Device is mono (non-stereo), connect

only the white (left) cable.

See Appendix B, page 58, for component video

signal compatibility information.

For digital audio connections, see your DVD

and A/V receiver Owner’s Guides.

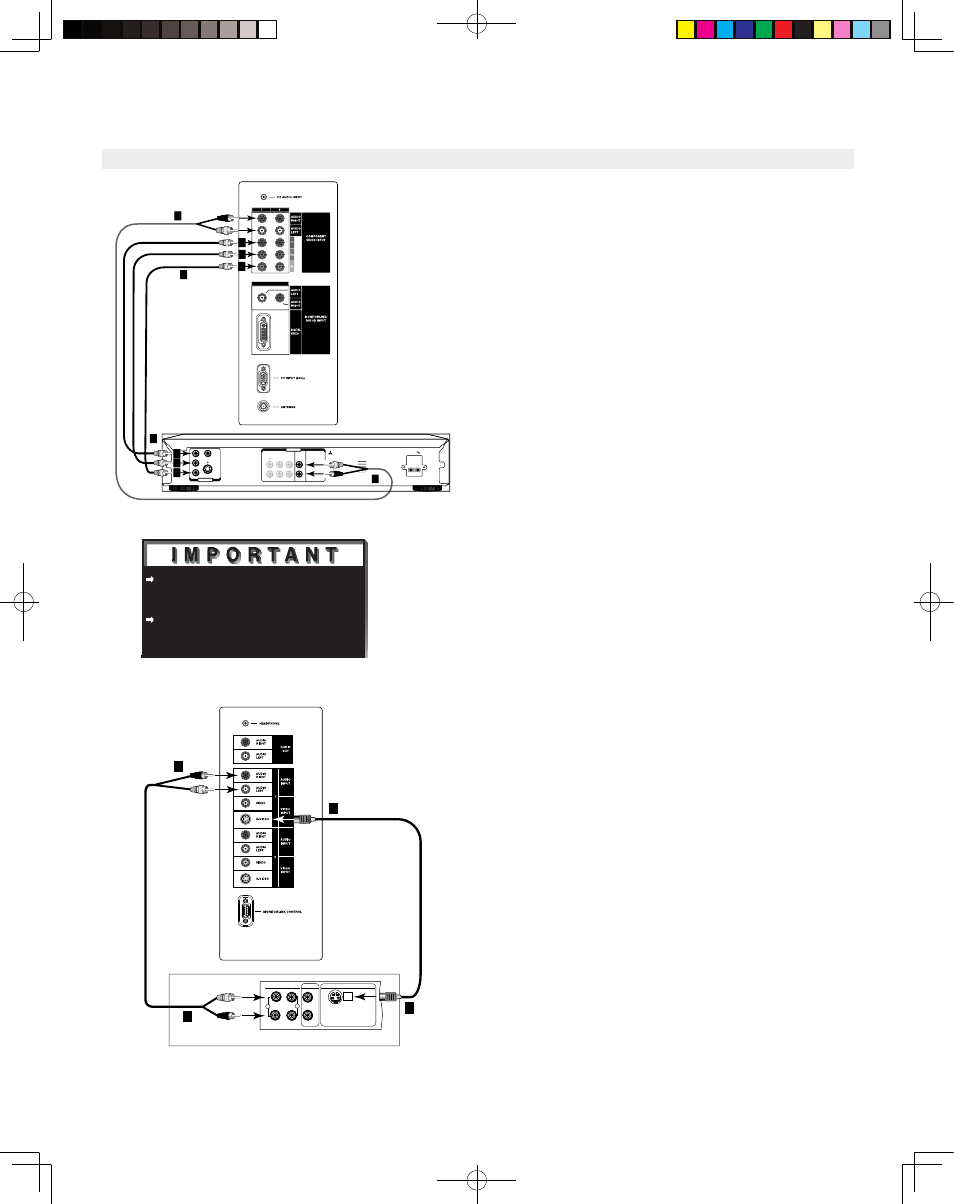

Figure 9. Connecting a DVD Player with Component Video.

Figure 10. Connecting an S-Video Device.

Connecting a DVD Player or Other S-Video Device

Note: The TV side panel and connections shown here are for reference only and may vary by model.

��

�

��

�

��

��
��

��

��
��
��

��

�

��

�

�
�

�

��

�
�

�

��

�

��

�
