INTRODUCTION
Rear Panel

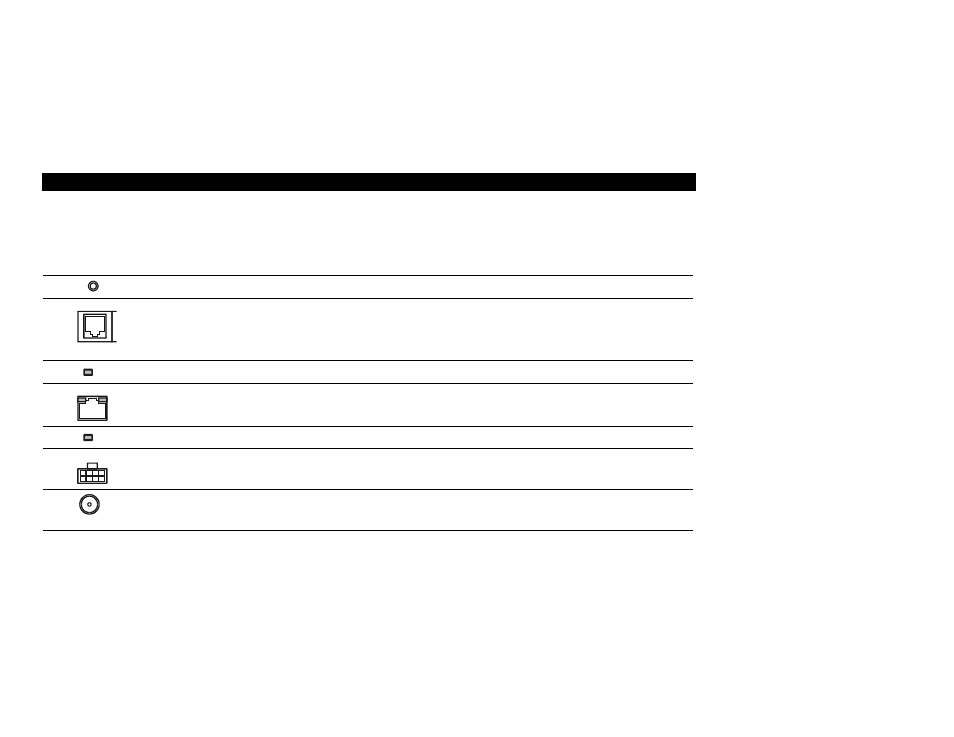

The rear panel provides Ethernet activity and link status lights, the reset button, and all the connectors.
Item Description
1 This is the recessed reset button.
2
LINE 2 These ports transfer data to and from analog phone lines. They are RJ-11 connectors.
3 When this yellow light flashes, the Ethernet connection is transferring data.
4
ENET This port transfers data to and from your computer. This is an RJ-45 connector.
5 When this green light is on, the Ethernet connection is available.
6 POWER This connector provides power to the CG3500.
7
CABLE
This port provides RF connectivity to and from your service provider. This is an F-type connector.
