INSTALLATION

The installation of the CG3500 can be completed in a matter of minutes. After you attach the cables, you must configure your
computer.

The CG3500 installation steps must be performed in the order shown in the following pages.

For a Single User

1

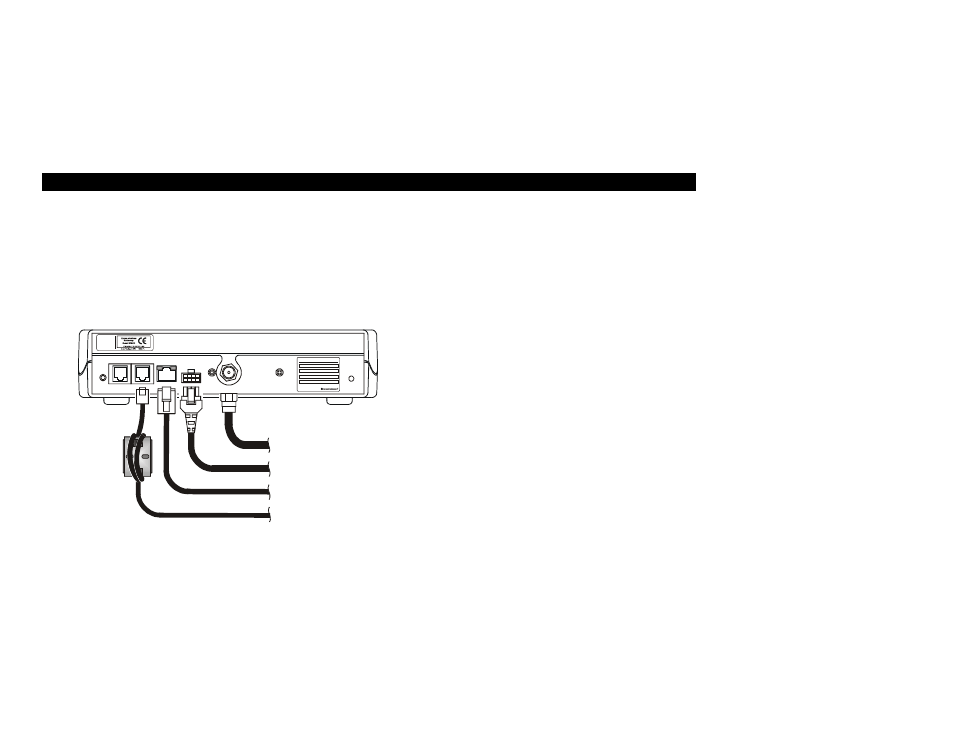

Connect the coaxial cable to a cable outlet in your home. Connect the other end to the CG3500 connector marked CABLE,
as shown below. Hand-tighten the connectors to avoid damaging them.

LINE 2

LINE 1

ENET

POWER

CABLE

MODEL: CG3500 Communications Gateway

Made in Taiwan, R. O. C.

S/N: PPPPMMYJJJSSSSSCKAABBCCCC

CUST S/N: BCDFGHJKLMNP

P/N: 480473-001

HFC MAC ID: ABCDEF012345

To telephone

To cable outlet or splitter

To UPS

To Ethernet jack on computer

Ferrite
