BASIC CONFIGURATION

The CG3500 contains all necessary software. You don’t need to configure
the CG3500, but you must configure your computer for TCP/IP and check
for an IP address. Your service provider may provide additional instructions
for setting up your computer. The following basic instructions are for
Windows™ 95 or Windows 98. If you are using a different operating
system, refer to that user guide.

Configuring for TCP/IP

On the Windows Desktop, click Start.

Select Settings and then Control Panel from the pop-up menus.

Double-click the Network icon on the Control Panel window.

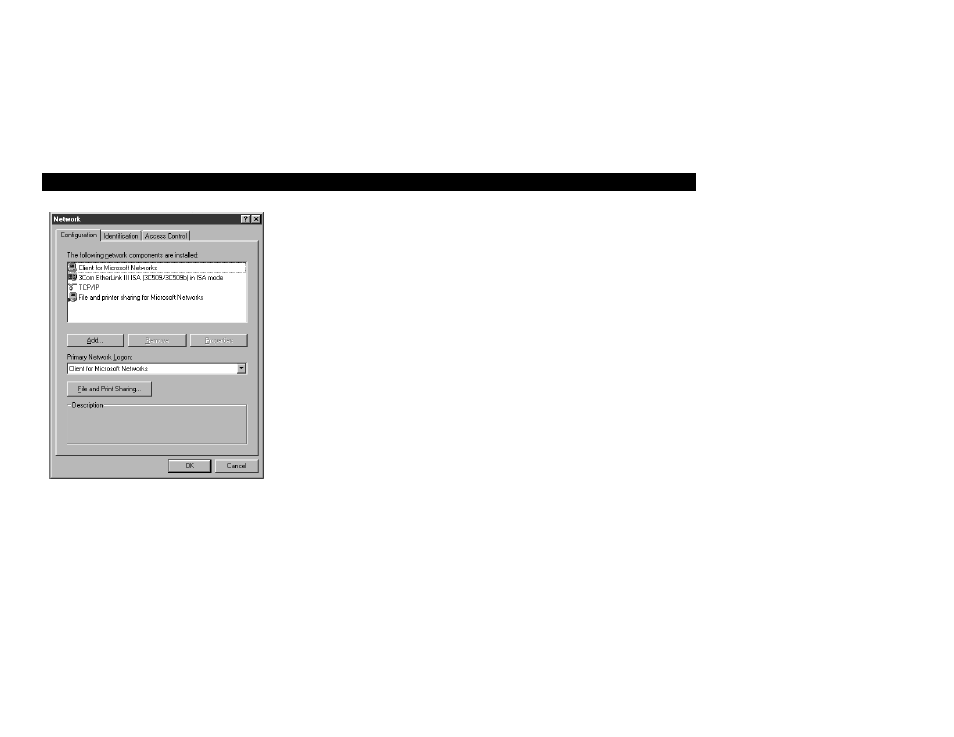

Select the Configuration tab on the Network window.

Check to see if TCP/IP has been installed for the Ethernet card. If
TCP/IP appears in the list of network components, it is installed and
you can proceed to step 10. If it doesn’t appear on the list, continue
with step 6.
