diMensiOns

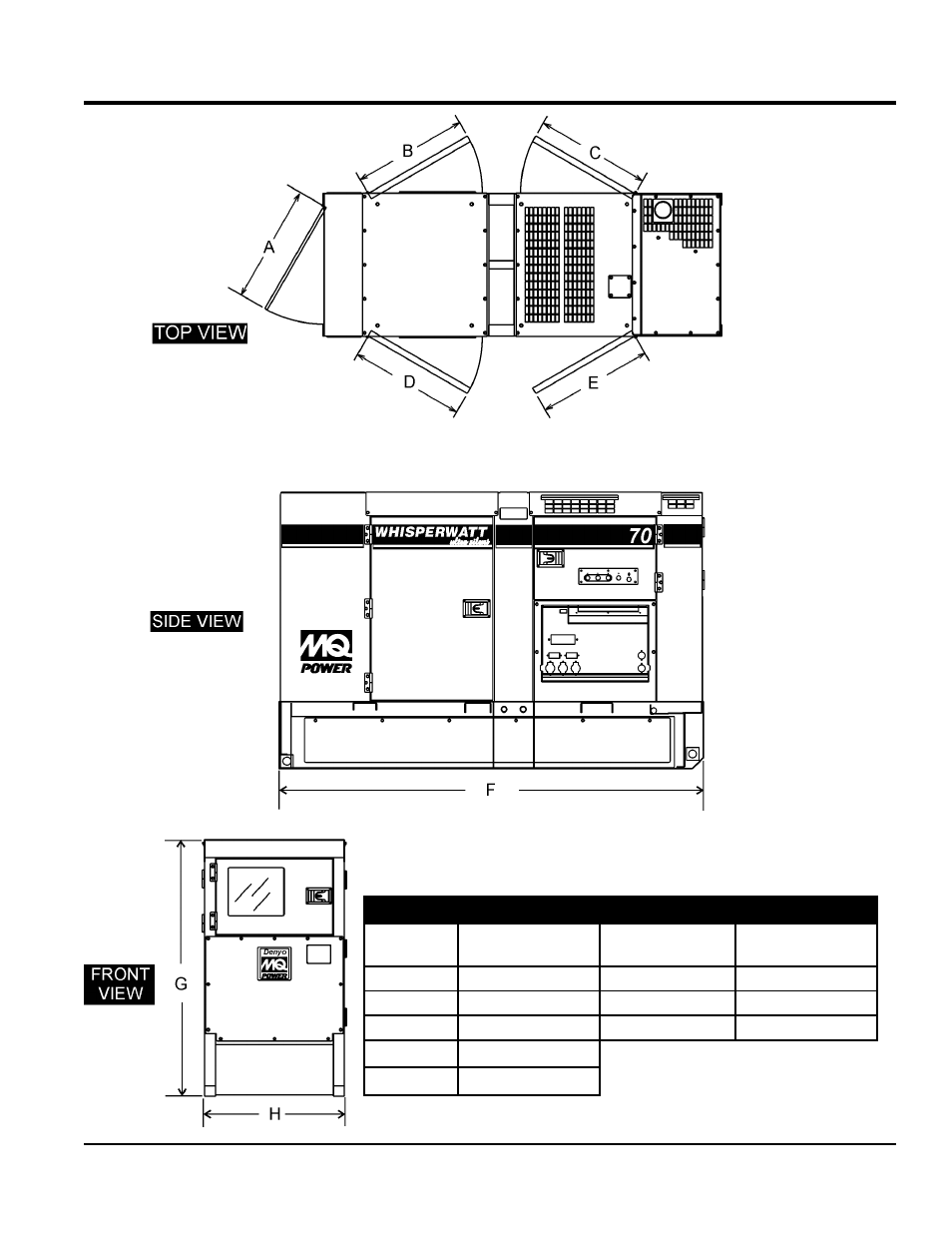

Figure 1. Dimensions
Table 3. Dimensions
reference
letter
Dimension in. (mm) reference letter Dimension in. (mm)
A 30.10 in. (790 mm.) F 105.1 in. (2,670 mm.)
B 30.20 in. (766 mm.) G 68.30 in. (1,735 mm.)
C 30.20 in. (766 mm.) H 37.40 in. (950 mm.)
D 30.20 in. (766 mm.)
E 30.20 in. (766 mm.)
