Motorola WR850 - Manual (Page 67)

Configuration Section 3
WR850 3-29

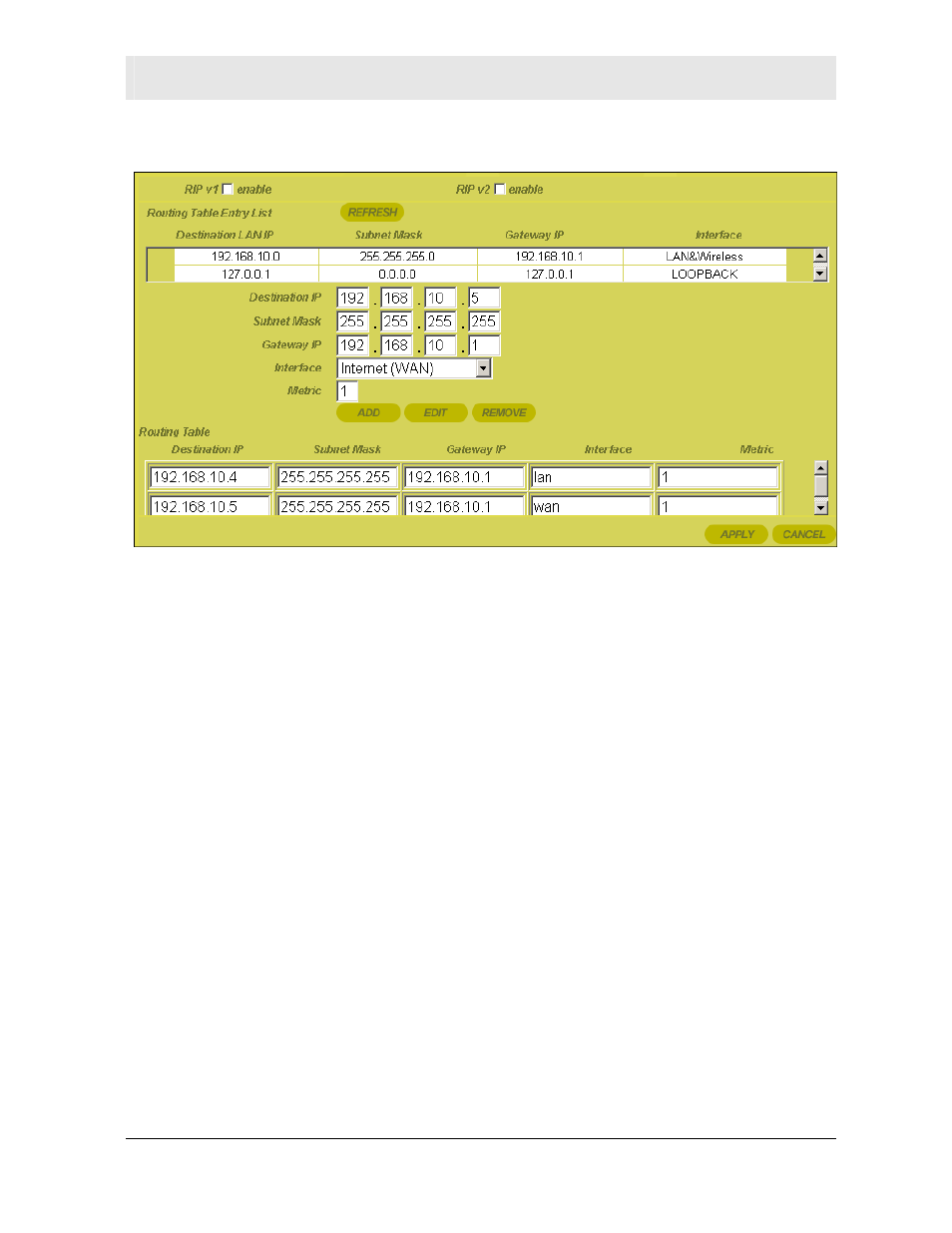

To access the screen, click Networking > Routing.
Field Description
RIP V1 Enables or disables RIPv1.
The default is disabled.
RIP V2 Enables or disables RIPv2.
The default is disabled.
Routing Table
Entry List To add a Routing Entry:
1 Select a Destination IP number, (the client’s Routing IP address).
2 Enter Subnet Mask and Gateway IP address.
3 Select the Interface (LAN & Wireless or Internet (WAN)) to which
the entry will apply.
4 Enter the Metric (or how many hops the routing can take).
5 Click Add to enter the Routing Entry into the Routing Table.
6 Click Apply to save the entry.
To edit or remove an entry, click the desired entry and perform
the requested action.
