page 20 — DCa45ssk/ku3 60 hz generaTor • operaTion anD parTs manual — rev. #0 (12/15/11)
Output terMinal panel faMiliarizatiOn
ouTpuT Terminal panel
The Output Terminal Panel (Figure 6) shown below is
located on the right-hand side (left from control panel) of
the generator. Lift up on the cover to gain access to
receptacles and terminal lugs.
NOTICE
Terminal legs “O” and “Ground” are considered bonded
grounds.
ouTpuT Terminal FamiliarizaTion
The “Output Terminal Panel ” (Figure 6) is provided with
the following:
„ Two 120/240V output receptacles @ 50 amp
„ Two Circuit Breakers @ 50 amps
„ Two 120V GFCI receptacles @ 20 amp
„ Two GFCI Circuit Breakers @ 20 amps
„ Five Output Terminal Lugs ( U, V, W, O, Ground)
AUX. POWER RECEPTACLES
240/139V, 50 AMPS
120 VAC, 20 AMP
GFCI RECEPTACLES
Y
X
W
CS-6369
TWIST-LOCK
CIRCUIT BREAKERS
FOR GFCI RECEPTACLES
RECEPTACLE
AND
CIRCUIT BREAKER
PANEL
M Q P
OW
ER
ACCESS DOOR
LIFT TO OPEN
HARD WIRE
HOOKUP PANEL
O U V W
BLACK RED BLUE WHITE GREEN
1Ø AND 3Ø,
480 -120 VAC
OUTPUT TERMINALS
NEUTRAL
TERMINAL
GROUND
TERMINAL
CIRCUIT BREAKERS
FOR CS-6369 TWIST
LOCK RECEPTACLES

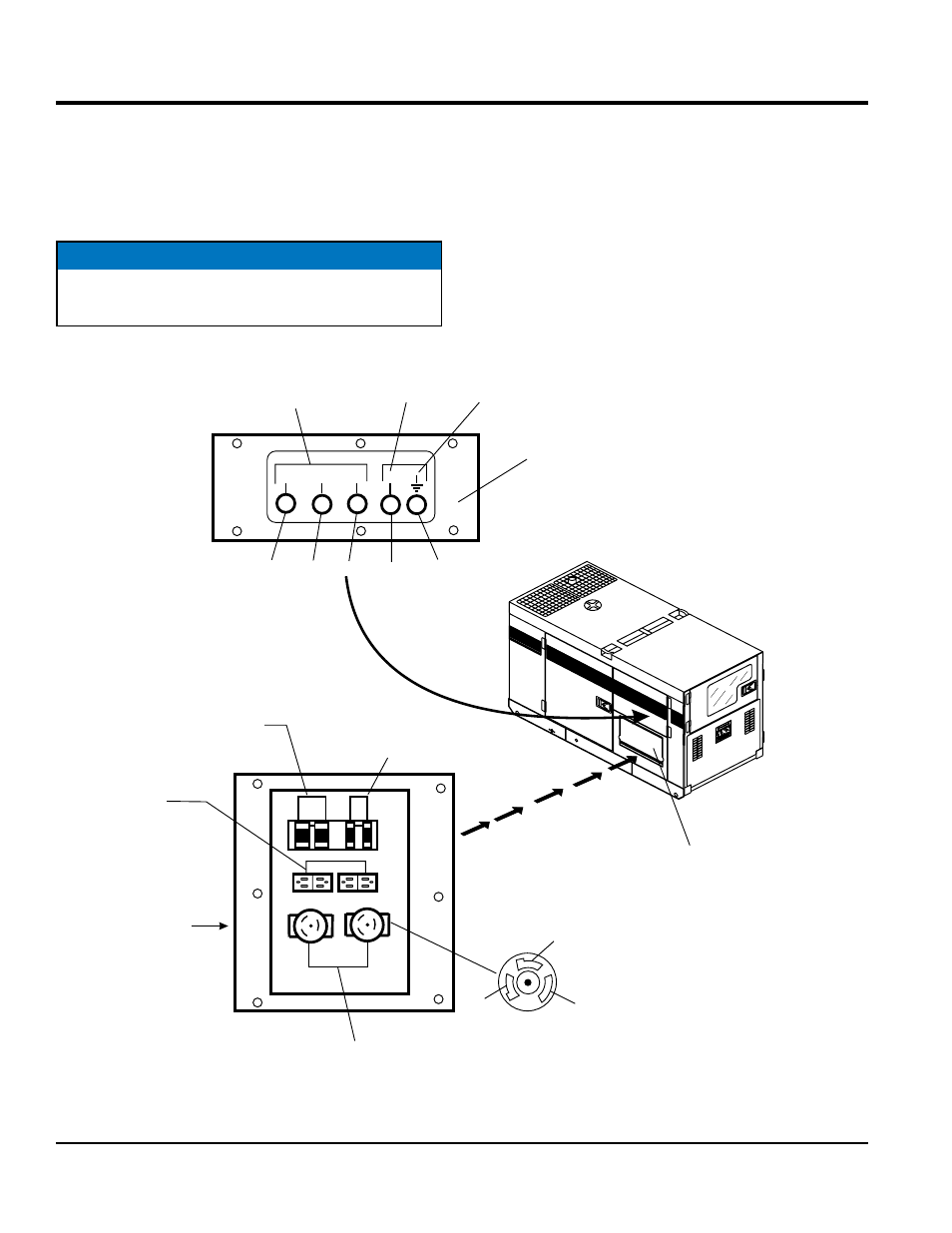

Figure 6. Output Terminal Panel
