DCa45ssk/ku3 60 hz generaTor • operaTion anD parTs manual — rev. #0 (12/15/11) — page 17
MajOr cOMpOnents
45
U V W O
3 PHASE 240/139 1 PHASE 240/120 3 PHASE 480/277
PRESS TO LOCK
3
1
45
2
4 5
6 7 8
9
10 11 12
M91020000
14
OFF
W-U
V-W
U-V
START
STOP RUN
DECREASE INCREASE
13

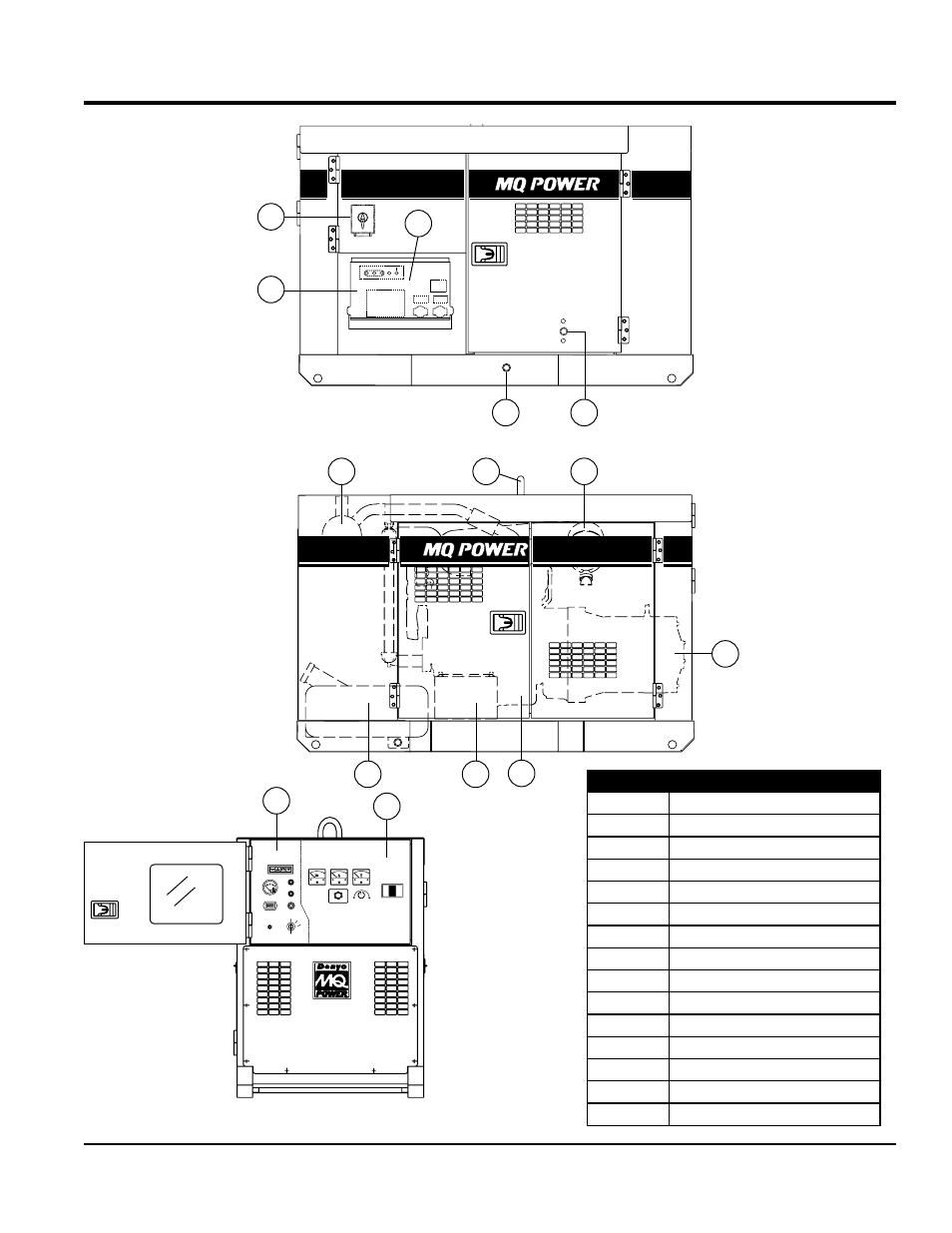

Figure 3. Major Components
Table 4. generator major Components
iTem no. DesCripTion
1 Output Terminal Panel Assembly
2 Terminal Panel Assembly
3 Voltage Selector Switch Assembly
4 Coolant Drain Plug
5 Fuel Drain Plug
6 Air Cleaner Assembly
7 Lifting Hook
8 Muffler Assembly
9 Generator Assembly
10 Engine/Radiator Assembly
11 Battery
12 Fuel Tank Assembly
13 Engine Control Panel Assembly
14 Generator Control Panel Assembly
