Quick Installation Guide
2-11 M68EZ328ADS v2.0 USER’S MANUAL MOTOROLA
2.3.2 Connecting M68EZ328ADS v2.0 to PC
Figure 2-4 shows connections among the PC, the external power supply and the M68E
Z328ADS v2.0 board. Use the following steps to complete cable connections:
For most evaluation platforms, serial communication is the primary channel to link up PC
with the target board. Both Metrowerks Codewarrior and Software Development System
(SDS) debug monitor support serial communication through UART port. The procedure are
as follows.
1. Connect a RS232 cable from COM port (COM1 or COM2) to connector P2 of
M68EZ328ADS v2.0.
2. Connect the power supply +3V or power adaptor to the P1 of M68EZ328ADS v2.0
3. Turn on the power supply. The RED LED will flash and the GREEN LED will illuminate
when power is correctly applied.
2.3.3 Installing software debugger
The following software debugger supports M68EZ328ADS v2.0:
• Metrowerks Codewarrior
• Single Step Development System
• SLD
Metrowerks Codewarrior
A simple procedure for using Metrowerks Codewarrior Target Monitor:
3.0-3.3V
Power Supply
EZ UART
Debug Port
Host Computer
COM1
/ COM2
RS232 Cable
M68VZ328ADS

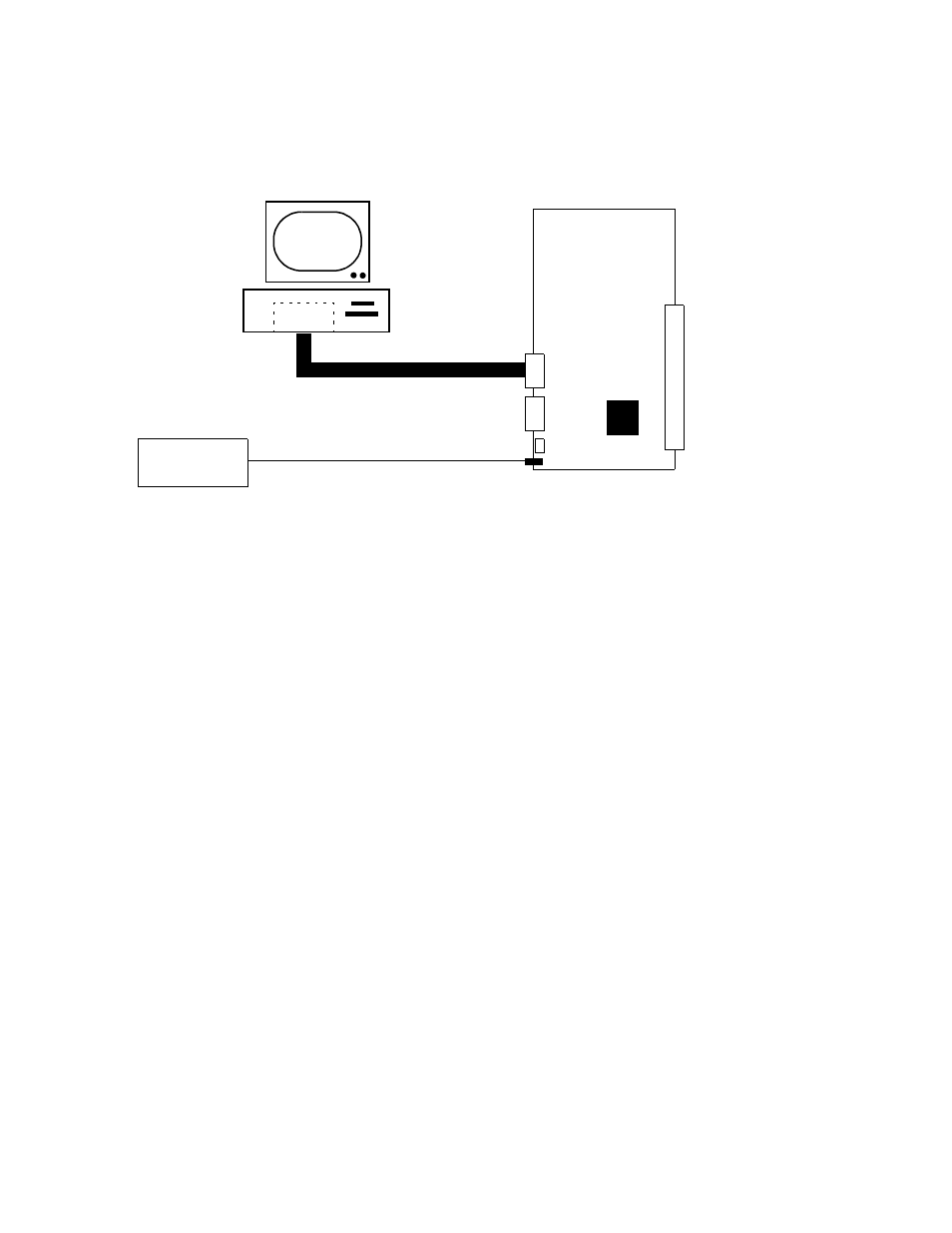

Figure 2-4. Connecting PC to Debug Port of M68EZ328ADS v2.0
