9
1. Remove the retaining washer from the
threaded shaft of the gearbox. Leave the
dust cup on the shaft.
2. Install the blade and the retaining washer
over the threaded shaft.
3. Make sure the raised part of the retaining
washer is facing the gearbox and the raised
area fits into the hole in the center of the
blade.
4. Slide the blade and retaining washer onto
the shaft of the gearbox.
5. Place the cupped washer onto the shaft.
Make sure the cupped side of the washer
is toward the blade.
6. Install the blade nut by threading onto the
shaft counterclockwise.

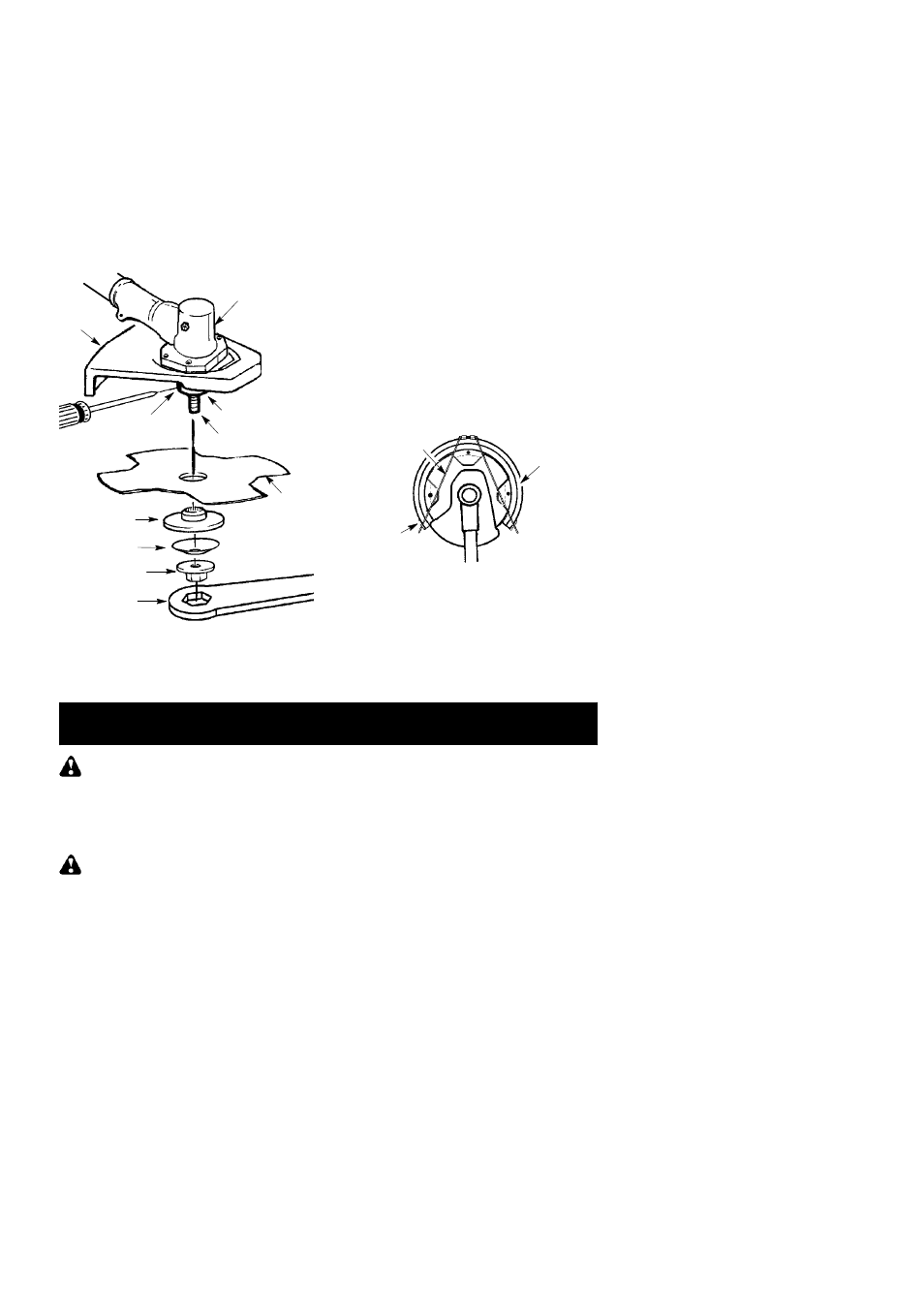

Shield
Blade Retaining
washer
Aligned holes
Cupped
washer
Nut
Threaded shaft
Gearbox
Wrench
Dust cup
NOTE: Make sure all parts are in place as il-
lustrated, and the blade is sandwiched between
the dust cup and the retaining washer. There
should be no space between the blade and the
dust cup or the retaining washer.
7. Align hole in dust cup with hole in side of
gearbox by rotating the blade.
8. Insert a small screwdriver into aligned
holes. This will keep the shaft from turning
while tightening the blade nut.
9. Tighten blade nut firmly with wrench (pro-
vided) while holding screwdriver in position.
10. Remove the screwdriver.
11. Turn blade by hand. If the blade binds
against the shield, or appears to be uneven,
the blade is not centered, and you must re-
install.
NOTE: To remove blade, insert screwdriver
into aligned holes. Unthread the nut and remove
parts. Be sure to store parts and instructions for
future use.
ATTACHING THE TRANSPORT
GUARD
NOTE: The transport guard must always be
attached to the blade when the machine is be-
ing transported or in storage.
1. Remove ends of wire retainer from the
clips on the transport guard.
2. Lift wire retainer and position blade in
transport guard.
3. Place wire retainer over blade and insert
both ends of wire retainer back into clips.
Wire retainer Transport
guard
Clip
OPERATION
WARNING: Be sure to read the fuel
information in the safety rules before you be-
gin. If you do not understand the safety rules,
do not attempt to fuel your unit. Contact an
authorized service dealer.
FUELING ENGINE
WARNING:
Remove fuel cap slowly
when refueling.
This engine is certified to operate on unleaded
petrol. Before operation, petrol must be mixed
with a good quality 2-cycle air-cooled engine oil.
We recommend McCulloch brand oil mixed at a
ratio of 40:1 (2.5%). A 40:1 ratio is obtained by
mixing 5 liters of unleaded petrol with 0,125 liter
of oil. DO NOT USE automotive oil or boat oil.
These oils will cause engine damage. When
mixing fuel, follow instructions printed on oil con-
tainer. Once oil is added to petrol, shake con-
tainer momentarily to assure that the fuel is thor-
oughly mixed. Always read and follow the safety
rules relating to fuel before fueling your unit.
IMPORTANT
Experience indicates that alcohol blended fuels
(called gasohol or using ethanol or methanol)
can attract moisture which leads to separation
and formation of acids during storage. Acidic
petrol can damage the fuel system of an engine
while in storage. To avoid engine problems,
