8

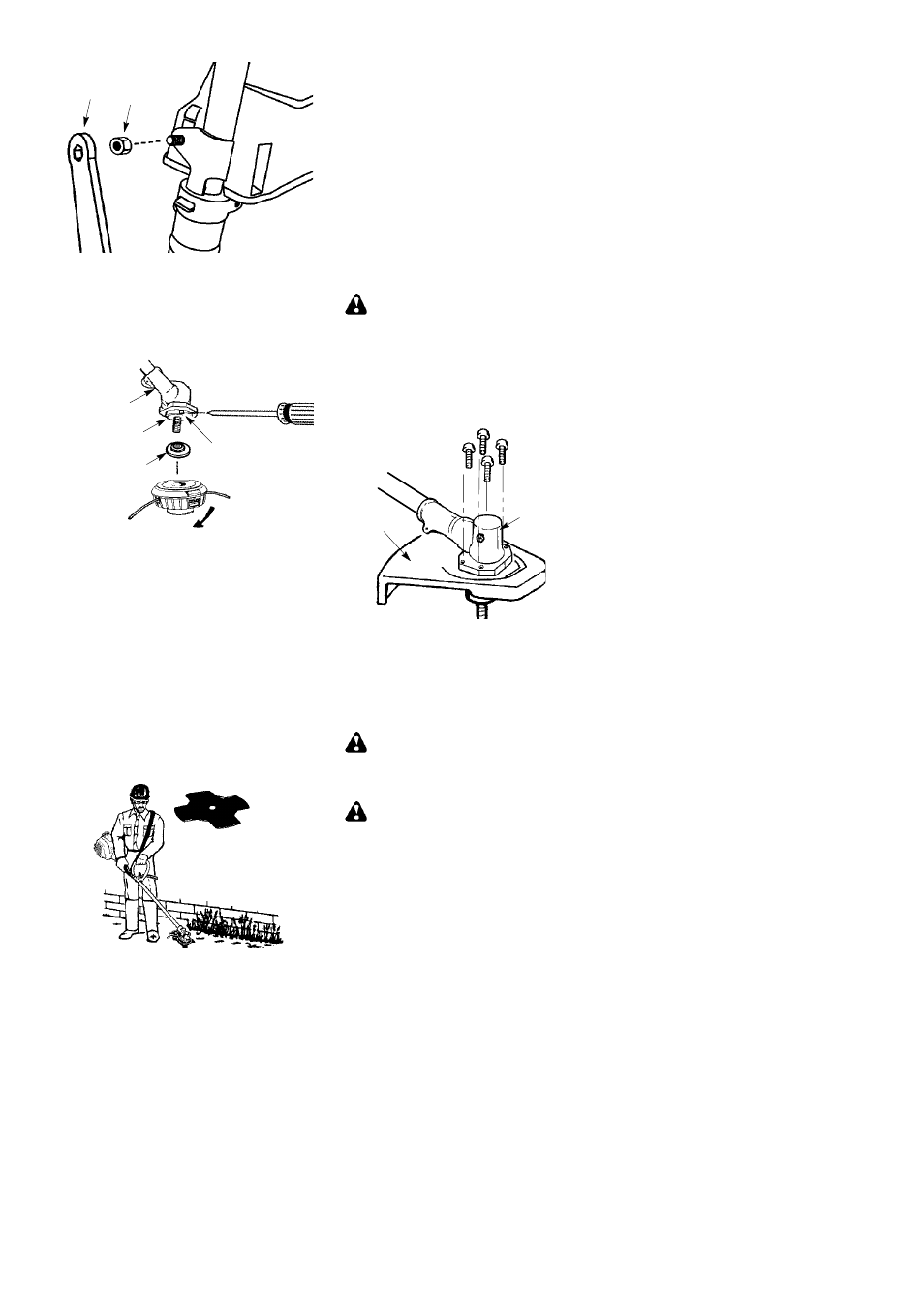

Nut
Wrench
NOTE: If your unit has a plastic cover over
the threads on the threaded shaft, remove the
covering to expose the threads. Before instal-
ling the trimmer head, make sure the dust cup
and retaining washer are positioned on the
gearbox.
Retaining
washer
Dust cup
Gearbox
Aligned holes
NOTE: Make sure all parts are properly
installed as shown in the illustration before
installing the trimmer head.
5. Align hole in the dust cup with the hole in the
side of the gearbox by rotating the dust cup.
6. Insert a small screwdriver into aligned
holes. This will keep the shaft from turning
while tightening trimmer head.
7. While holding the screwdriver in position,
thread trimmer head onto the shaft in the
direction shown on the decal (counter-
clockwise). Tighten until secure.
NOTE: The retaining washer must be posi-
tioned with the raised section facing toward the
gearbox.
ASSEMBLY INFORMATION -- WEED
BLADE
WEED
BLADE
NOTE: Remove the trimmer head and plastic
shield before attaching the metal shield and
installing the weed blade. To remove the trimmer
head, align hole in the dust cup with the hole in
the side of the gearbox by rotating the dust cup.
Insert a small screwdriver into aligned holes.
This will keep the shaft from turning while loos-
ening the trimmer head. Remove the trimmer
head by turning clockwise. Remove the screw-
driver. To remove the plastic shield, loosen and
remove nut. Pivot shield to release bracket from
slot. See INSTALLATION OF THE CUTTING
HEAD and ATTACHING THE PLASTIC
SHIELD for illustrations. Be sure to store all
parts and instructions for future use. Never use
the trimmer head with the metal blade installed.
ATTACHING THE METAL SHIELD
WARNING:
The metal shield must be
properly installed on the tool anytime the tool is
used with a blade. Failure to install the shield in
the position shown can result in serious injury to
the operator. The length of the shield must be
aligned with the length of the shaft.
1. Place the metal shield under the gearbox,
and align the screw holes.
Shield
Gearbox
2. Insert and thread the 4 mounting screws
through the holes of the gearbox and the
metal shield. Tighten evenly and securely
with the hex wrench provided.
INSTALLATION OF THE METAL
BLADE
WARNING:
Wear protective gloves
when handling or performing maintenance on
the blade to avoid injury. The blade is sharp and
can cut you even when it is not moving.
WARNING:
Do not use any blades, or
fastening hardware other than the washers and
nuts shown in the following illustrations. These
parts must be provided by McCulloch and
installed as shown below. Failure to use proper
parts can cause the blade to fly off and seriously
hurt you or others.
NOTE: The dust cup and retaining washer are
located on the gearbox shaft and not in the parts
bag. All other fasteners mentioned in the follow-
ing assembly steps are in the parts bag.
