PRODUCT IDENTIFICATION
AND
ASSEMBLY

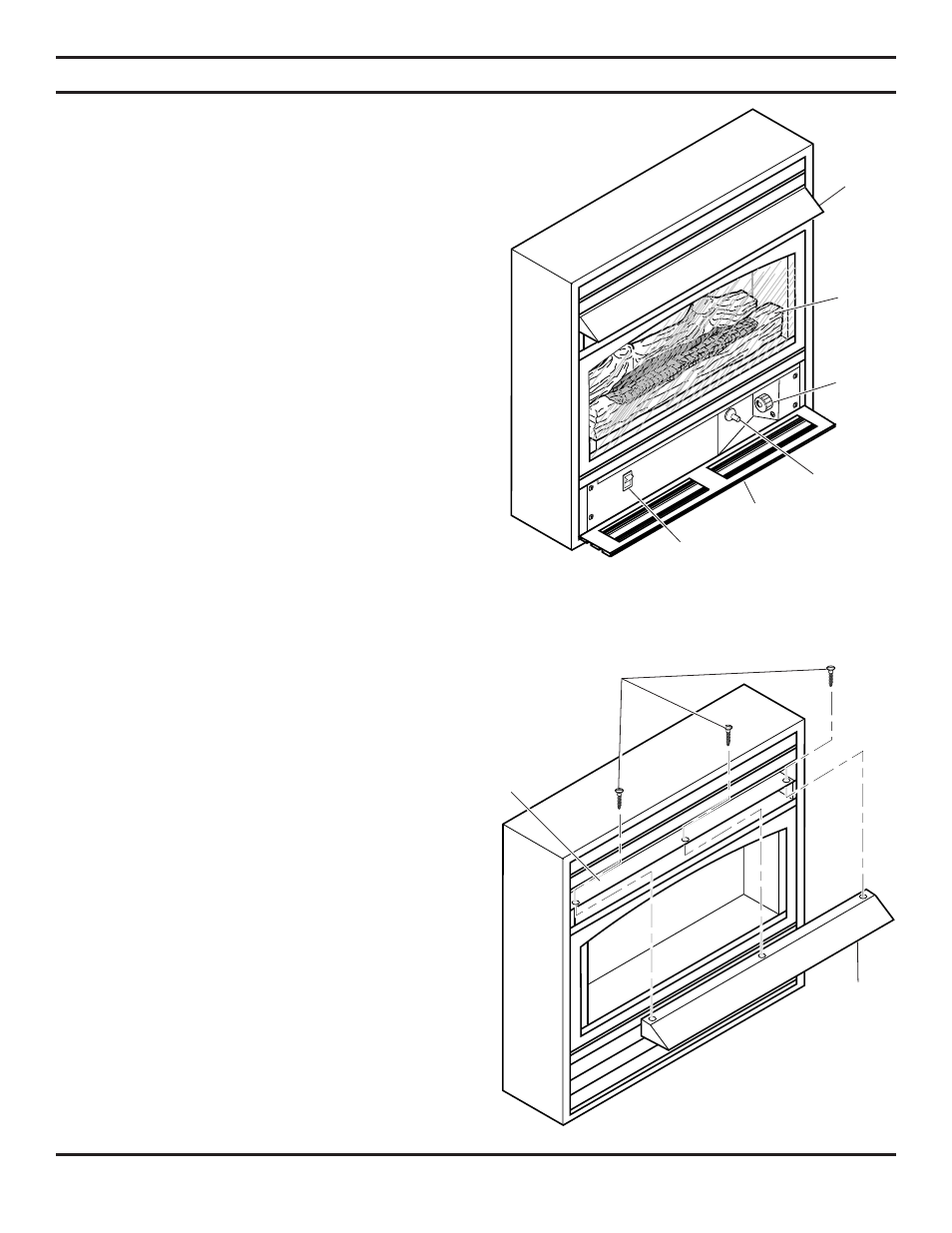

Figure 1 - Vent-Free Gas Log Space Heater
SAFETY DEVICE
This heater has a pilot with an Oxygen Depletion Sensing
(ODS) safety shutoff system. The ODS/pilot is a required
feature for vent-free room heaters. The ODS/pilot shuts
off the heater if there is not enough fresh air.
PIEZO IGNITION SYSTEM
This heater has a piezo ignitor. This system requires no
matches, batteries, or other sources to light heater.
THERMOSTAT HEAT CONTROL
This heater has a thermostat sensing bulb and a control
valve. This results in the greatest heater comfort. This
can also result in lower gas bills.
NOTE: Do not remove Lighting and Warning
Plates from heater.
UNPACKING
1. Remove heater from carton.
2. Remove all protective packaging applied to heater
for shipment.
3. Make sure your heater includes the following:
trim
hood
mounting bracket
hardware package which includes:
two (2) 90° angled brackets and shims
four (4) trim screws
three (3) hood screws
two (2) wall mounting screws
two (2) wall spacers
4. Check heater for any shipping damage. If heater is
damaged, promptly inform dealer where you bought
heater.
ASSEMBLY
INSTALLING HOOD
1. Remove hood from protective package.
2. Locate three (3) black sheet metal screws inside home-
owner’s manual pack.
3. Place hood on deflector and line up holes (see Figure 2).
4. Secure hood to deflector with three (3) black sheet metal
screws.
NOTE: Side of hood should be on the outside flange
of deflector.
Figure 2 - Installing Hood
Hood
Screws
Hood
Control
Knob
Screen
Piezo
Ignitor
Door
Optional Blower
On/Off Switch
Deflector
