14 49D0090 49D0090 15
Continued
B. MOUNTING HEATER ON OPTIONAL HEARTH BASE
Tools needed:
• #2 Phillips screwdriver
• slotted screwdriver
• electric drill (if securing base to floor)
The optional hearth base kit includes the following:
• Hearth Base
• 4 Wood Screws • 4 Sheet Metal Screws
• Hearth Insert • 4 Anchors • 2 Brass Screws • Brass Base Trim
Note: To secure hearth base to floor, follow instructions under “Securing Hearth Base to Floor,” page 16.
If not securing hearth base to floor, proceed to “Mounting Heater to Optional Hearth Base,” page 16.
INSTALLATION
Placing Heater on Mounting Bracket
1. Install wall spacers.
2. Attach two (2) rubber bumpers to back of
heater as shown in Figure 10.
3. Locate two (2) horizontal slots on back panel
of heater.
4. Place heater onto mounting bracket. Slide
horizontal slots onto stand-out tabs on mount-
ing bracket.

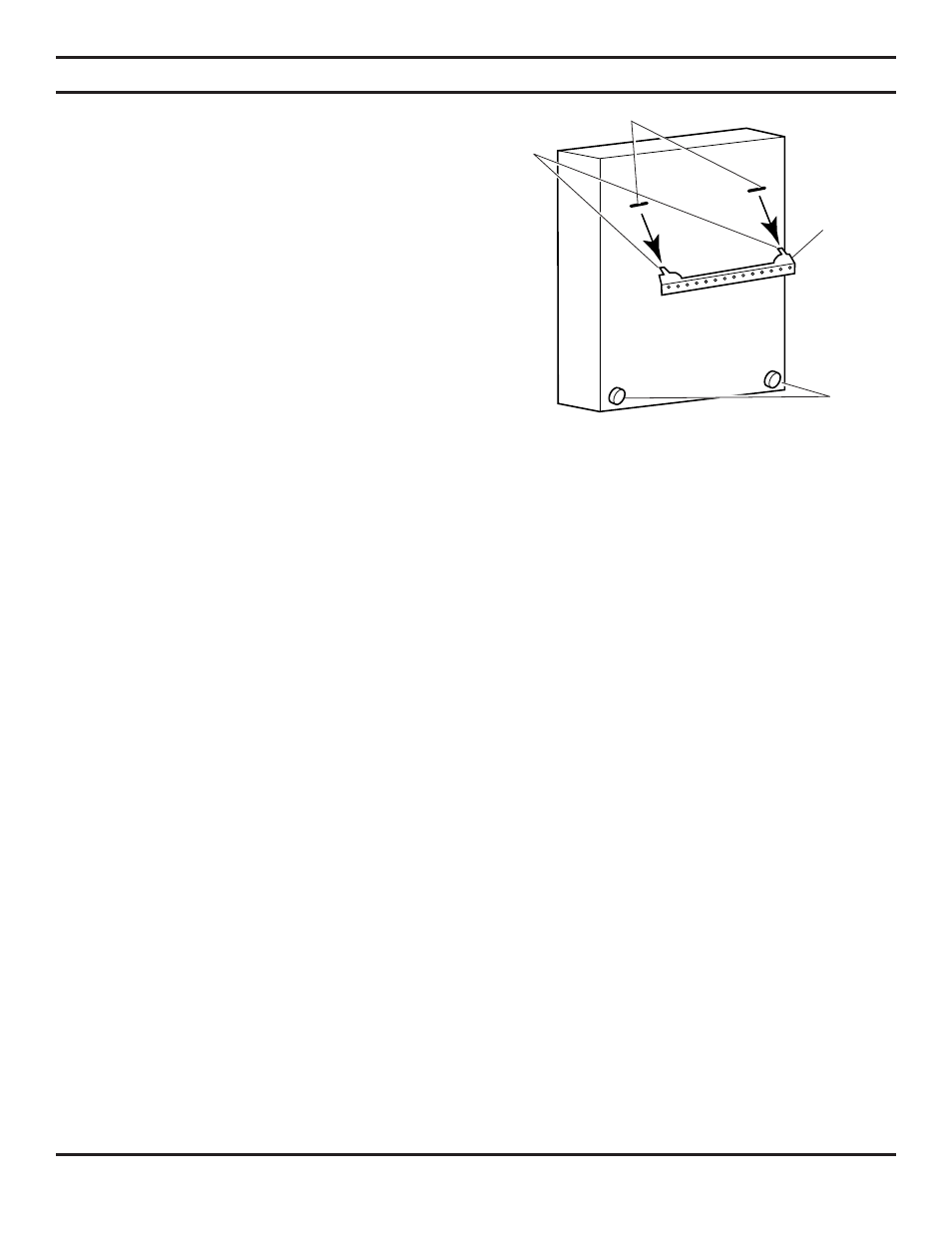

Figure 10 - Mounting Heater Onto
Mounting Bracket
Horizontal Slots
Stand-Out
Tabs
Mounting
Bracket
(already
attached
to wall)
Rubber
Bumpers
