OPERATING INSTRUCTIONS

1. STOP! Read the safety information label.
2. Make sure the manual shutoff valve is fully open.
3. This gas log set is equipped with an ignition device (piezo) which automatically lights the pilot. If piezo

ignitor does not light the pilot, refer to instructions for

“Match Lighting Instructions”

, page 21.

4. Turn gas control knob clockwise

to the OFF position.

5. Wait (5) minutes to clear out any gas. Then smell for gas, including near the floor. If you smell gas,

STOP! Follow the instructions under

“What To Do if You Smell Gas,”

page 17. If you don't smell gas, go to

next step.

6. From OFF position, turn the gas control knob counterclockwise

to PILOT position. Push in control

knob for 5 seconds.

See Figure 20.

NOTE: If you are running the heater for the first time, it will be

necessary to press in the control knob for 30 seconds or longer to allow air to bleed out
of the gas piping.

7. With control knob pressed in, push down and release ignitor button. This will light pilot. The pilot is attached

to the front of burner. If needed, keep pressing ignitor button until pilot lights. Note: If pilot does not
stay lit, refer to “Troubleshooting,” pages 32 through 25. Also contact a qualified service
person or gas supplier for repairs. Until repairs are made, light pilot with match. To light
pilot with match, see “Match Lighting Instructions,” page 21.

8. Keep control knob pressed in for 30 seconds after lighting pilot. After 30 seconds, release control knob.
• If control knob does not pop up when released, contact a qualified service person or gas supplier for

repairs.

Note: If pilot goes out, repeat steps 4 through 8 . This heater has a safety interlock system. Wait

one (1) minute before lighting pilot again.

9. Turn control knob counterclockwise counterclockwise

to desired heating level. The main

burner should light. Set control knob to any heat level between HI and LO. For thermostat operation, see
page 21.

LIGHTING INSTRUCTIONS

Do not try to adjust heating levels by
using the equipment shutoff valve.

W

ARNING

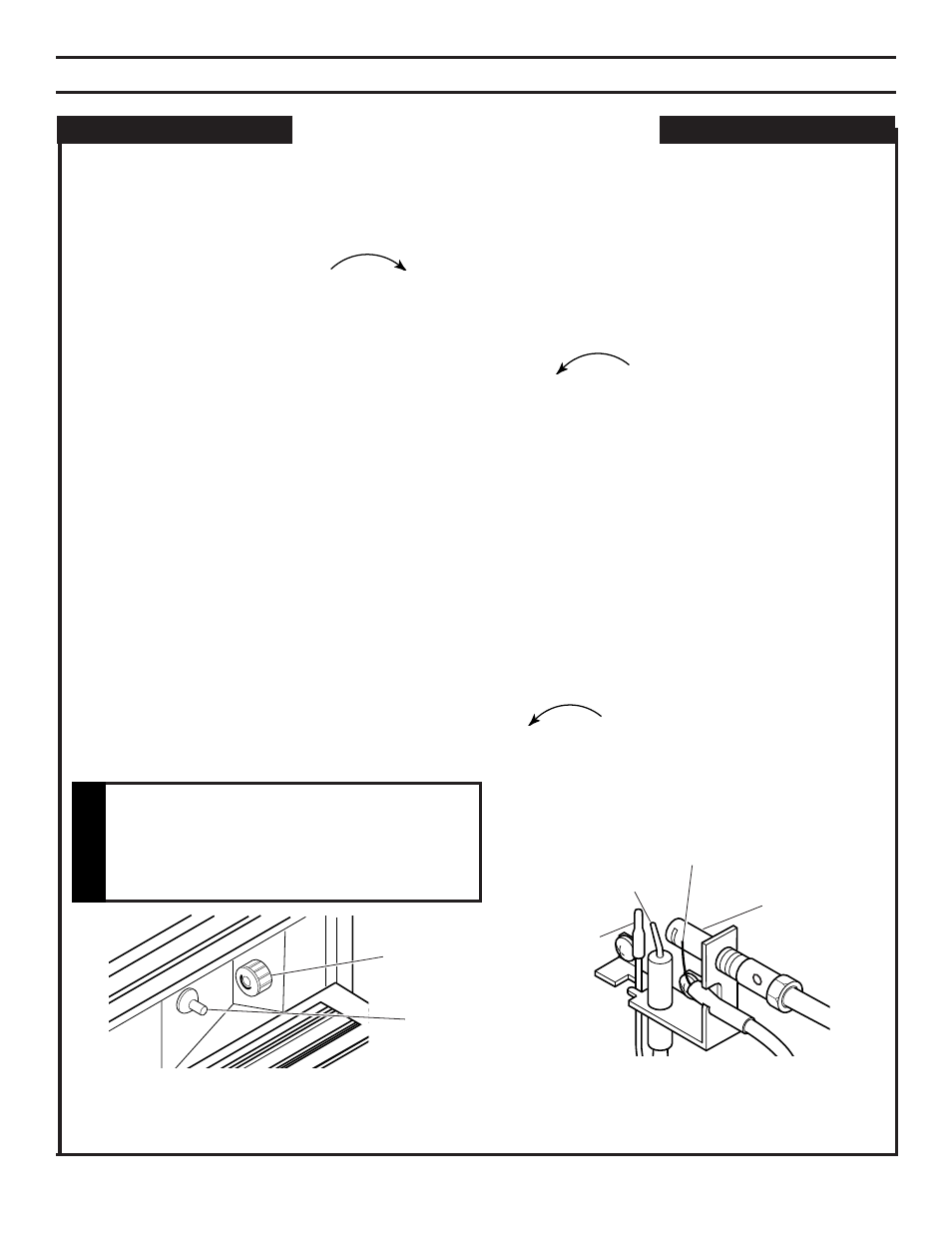

Figure 18 - Control Knob In The OFF Position

Figure 19 - Pilot

Thermocouple (LP only)

Pilot Burner

Ignitor Electrode

Control

Knob

Piezo

Ignitor

Thermocouple

(NG only)
