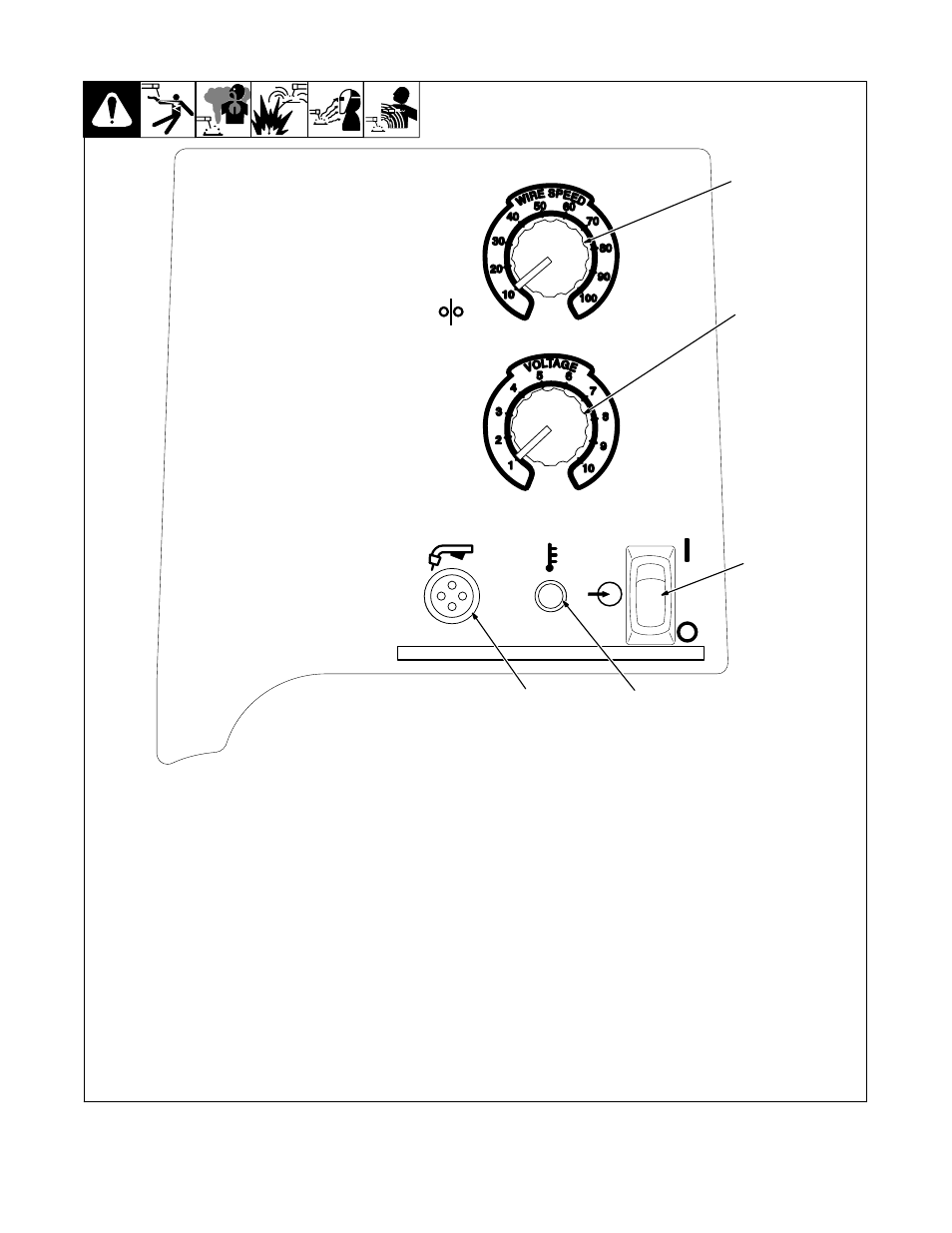

5-3. Controls For 230 VAC Model
1 Wire Speed Control
Turn control clockwise to increase wire
feed speed. (see weld parameter chart in
welding power source or Section 5-5, 5-4,
5-6, 5-7 or 5-8, as applicable).
2 Voltage Control
Turn control clockwise to increase voltage
(see weld parameter chart in welding
power source or Section 5-5, 5-4, 5-6, 5-7
or 5-8 as applicable).
3 Power Switch
4 Over Temperature Light
5 Gun Trigger Receptacle
225 227-C
OVER TEMP TRIGGER
V
V
ON
OFF
230V Wire Welder
Welds 24 gauge to 5/16" Mild Steel
POWER
1
2
3
4 5
