OM-1582 Page 11
SECTION 3 – INTRODUCTION
3-1. Specifications
Type of Input
Power
Welding Power
Source Type
Wire Feed
Speed Range
Wire Diameter
Range
Welding
Circuit
Rating
IP
Rating
Overall
Dimensions
Weight
24 Volts AC
Single-Phase
10 Amperes
50/60 Hertz
Constant Voltage (CV)
DC With 14-Pin And
Contactor Control
Standard: 50 To
780 ipm (1.3 To
19.8 mpm)
Optional High
Speed: 90 To
1400 ipm (2.3 To
35.6 mpm)
.023 To 1/8 in
(0.6 To 3.2 mm)
Max Spool
Weight: 60 lb
(27 kg)
100 Volts,
750
Amperes,
100% Duty
Cycle
IP 23
Length: 32 in
(812 mm)
Width: 18 in
(457 mm)
Height: 14 in
(356 mm)
78 lb
(35 kg)
SECTION 4 – INSTALLATION

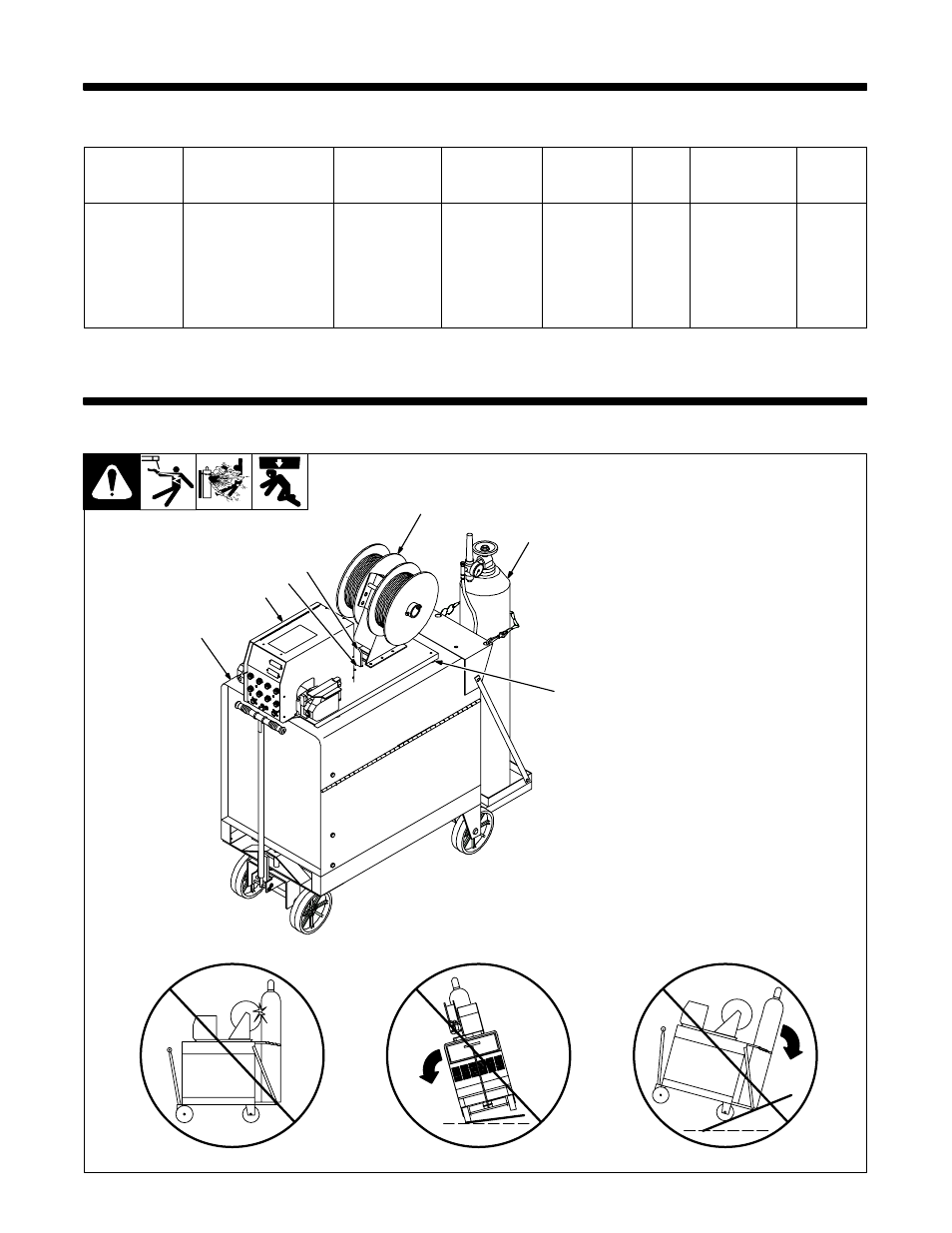

4-1. Site Selection
1 Wire Feeder
2 Lifting Eye
3 Rubber Feet
4 Slot
Choose slot that allows all rubber
feet to sit securely on top of welding
power source.
5 Wire Spool/Reel
6 Gas Cylinder (Customer
Supplied)
7 Welding Power Source
Y Do not put feeder where
welding wire hits cylinder.
Y Do not move or operate
equipment when it could tip.
Ref. ST-152 468-A / ST-152 566-B
1
5
2
4
7
6
3
